Chain Feed Corrugated Box Printing Machine 2 Color Slotter Die Cutter
1.Corrugated Box Printing Machine Description:
The sophistication and ease of operation of this machine are truly unparalleled, making it the perfect choice for those new to the industry. Its exceptional reliability is exemplified by its remarkable operational stability and exceptional after-sales support, which is crucial to maintaining a positive reputation in the market.
Many cardboard and carton manufacturers have placed great value on this machine, due to its remarkable ease of use and efficiency, and as a result, it is highly sought-after. In addition, the machine is also frequently exported to countries around the world, because its functionality and usability make it a valuable investment for any company that produces or packages products.
2.Corrugated Box Printing Machine Specifications:
| No | Item | Data |
| 1 | The max feeder length(mm) | 900/1200/1450/1600/1800 |
| 2 | The min feeder length(mm) | 280/330/360/400/450 |
| 3 | The max feeder width(mm) | 1800/2000/2200/2400/2600/2800 |
| 4 | The min feeder width(mm) | 750 |
| 5 | Design speed (m/min) | 150-250 |
| 6 | Machine wall board thickness(mm) | 50/60 |
| 7 | Gear thickness(mm) | 50 |
| 8 | The max print length(mm) | 900/1200/1450/1600/1800 |
| 9 | The max print width(mm) | 1600/1800/2000/2200/2400/2600 |
| 10 | The max die-cut length(mm) | 900/1200/1450/1600/1800 |
| 11 | The max die-cut width(mm) | 1700/1900/2100/2300/2500/2700 |
| 12 | The print plate thickness(mm) | 3.2-7.2 |
| 13 | The cardboard thickness(mm) | 2-12 |
3.Corrugated Box Printing Machine Feature Advantage:
Machine printer unit and drawer unit phase: Electric number digital adjustment Automatic ink circulation system Integrated creasing and slotting mechanism Gear lubrication system: Automatic oil lubrication Machine body thickness: 50mm Automatic separation, pneumatic locking mechanism
FEEDING DEPARTMENT:
It adopts the combination of chain-paper feeding style ensuring paper feeding steady and reducing the rate of spoiled products.
PRINTING DEPARTMENT:
The roller diameter for the printing roller is 400mm. It can be adjusted to 480mm or 530mm using the digital digital phase controller, which increases accuracy and adjusts quickly. In addition, it has an auto ink tray lift function to prevent ink from drying. This roller adopts electrical separation and pneumatic locking to ensure safe operation. Ink is supplied by a pneumatic diaphragm pump. The main transmission gear is made of high quality 45# steel and is processed by high frequency quenching. It adopts helical gear drive and is durable and precise. The auto spray lubrication system ensures the machine's precise and long-lasting performance. To enhance hardness, all rollers are chrome-plated. In addition, the auto counting function also helps prevent accidents. The machine is equipped with an alarm system to notify users of any malfunctions and ensure a safe working environment.
4.Our Company:
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
5.KSPACK Group:
Hebei Jinguang Packing Machine Co.,Ltd
Cangzhou Kingsun IMP and EXP Co.,Ltd
Dongguang BaiYing Carton Machinery Co.,Ltd

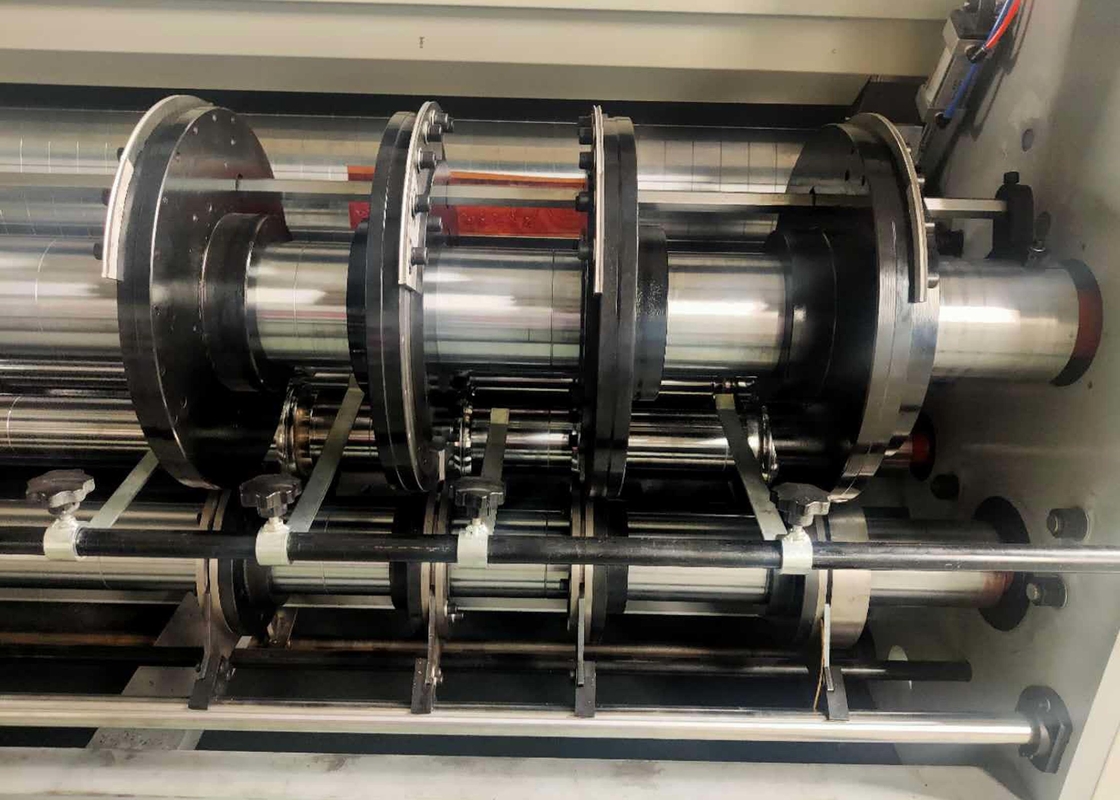

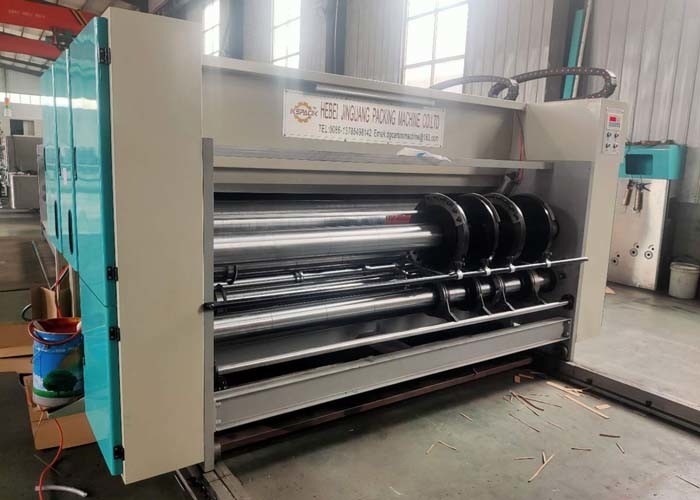

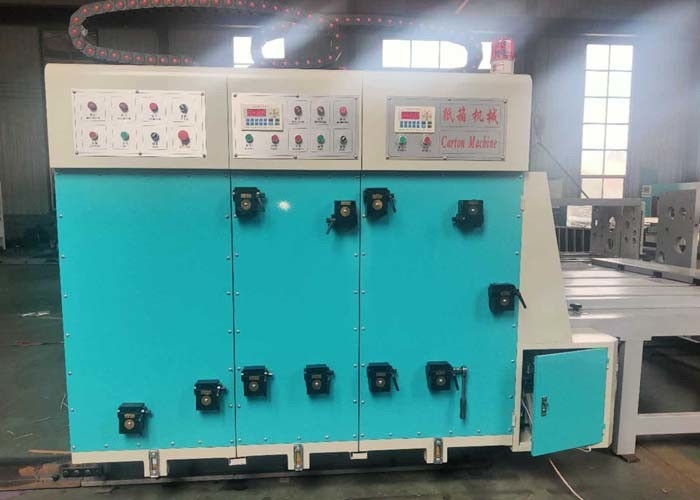

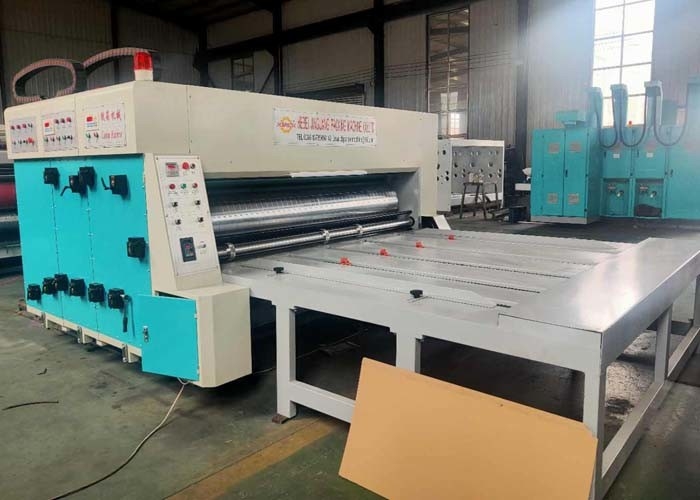

6.Picture:
Our products are sold all over the world, you can rest assured.
