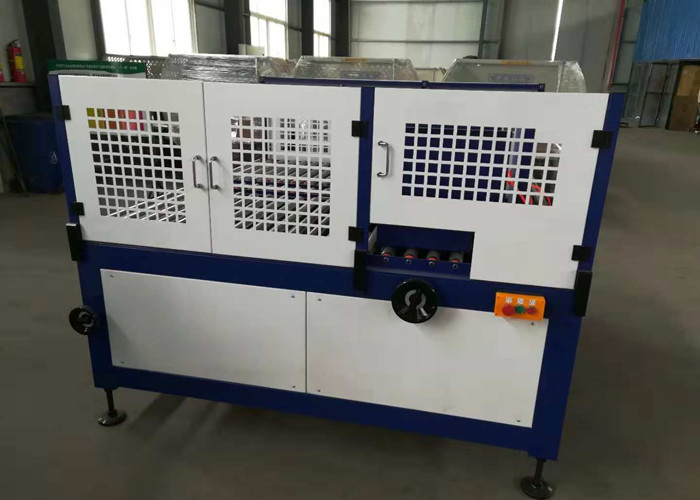

Auto PP Box Binding Machine Cooperate With Auto Folder Gluer Machine
Box Binding Machine Description

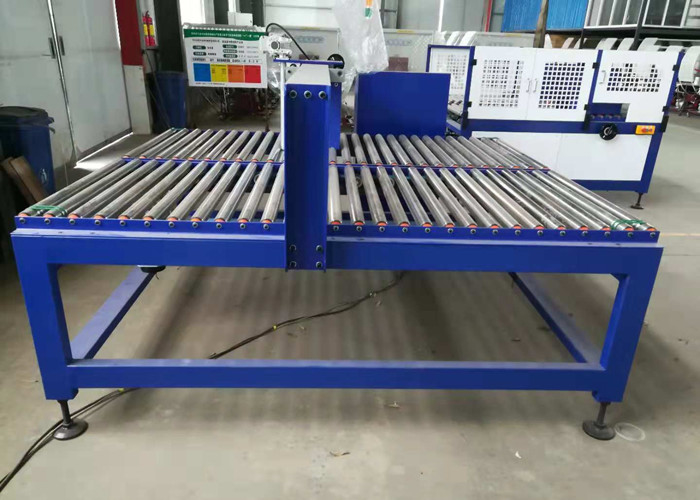

Steering Department:
The drum adopts 1.5mm stainless steel tube wall.
The roller bearing adopts Harbin axle brand.
The position of the striker is manually adjusted by the lead screw according to the size of the carton.
The fastest speed of the conveying line in the steering section: 50m/min.
Snap parts:
The drum adopts 1.5mm stainless steel tube wall.
The roller bearing adopts Harbin axle brand.
The motor adopts frequency conversion control, starts, runs smoothly, and can adjust the pat speed according to the carton size.
Adjusting the carton size and size can be completed by manually adjusting the screw rod.
The fastest speed of the conveyor line of the snap parts: 70m/min.

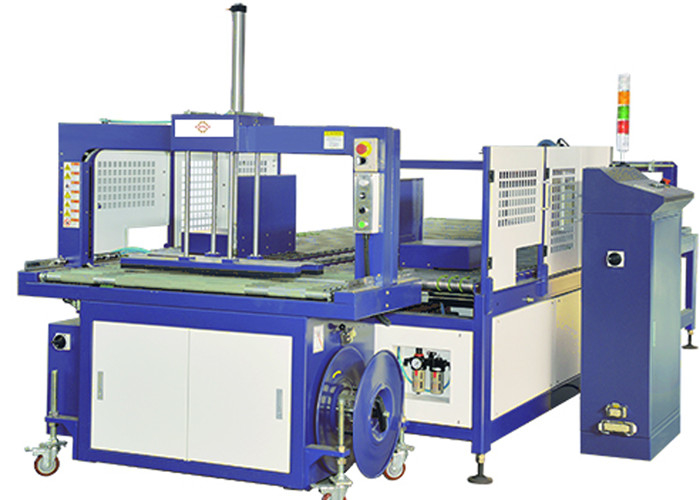

Packing Department:
1. Equipped with an unmanned pressurized packer, the inner size of the frame is 1250 wide × 500 high
The machine size is 1520×680×2000mm.
2. Applicable packing belt: width 5mm, thickness 0.6mm.
3. Bearing capacity: 80Kg.
4. Reel: the inner diameter of the reel paper core is 200mm-210mm, the outer diameter of the reel is 400mm-450mm, and the width of the reel is 170mm-190mm.
5. Bonding method: hot melt method.
6. Bundling tightness: 0-45Kg.
7. Bundling form: parallel 1-2 lanes, with photoelectric and manual methods.
8. Bottom bonding surface ≥90%, bonding width ≥20mm, and bonding position deviation ≤0.5mm.
9. Electrical configuration: Panasonic PLC; Schneider inverter; Schneider contactor; Taiwan Airtec cylinder; Taiwan Wanxin motor.
Box Binding Machine Specifications
| Device model | PP-KJQZ115/35 |
| Power supply | 380V/50HZ 2KW/5A |
| The speed is less than or equal | 12-14 bags/min. (According to the size of the carton) |
| Air source | 6kg/cm³. |
| Table height | 850mm. |
| Packing size | L (300-1150) × W (350-1150) × (0-350) mm |
| Applicable packing belt | width 5mm, thickness 0.6mm. |
| Bundling form | parallel 1-2 lanes, with photoelectric and manual methods. |
| Noise | In the working environment, the noise is ≤75DB. |
Box Binding Machine Feature
This product is suitable for carton manufacturers to support the glue box or order line. It can be automatically adjusted and packed according to the size of the carton.
Bundling form: parallel 1-2 lanes, with photoelectric, manual, etc.
Conveyor line for turning rod to power roller: Speed: 45mm/min.
Bottom bonding surface ≥90%, bonding width ≥20mm, bonding position deviation ≤0.5mm
According to the needs: configure the Leforun telescopic frame connected with other equipment.
Conveying equipment size: length 4850 × width 2300 × height 2000 (without telescopic frame)
