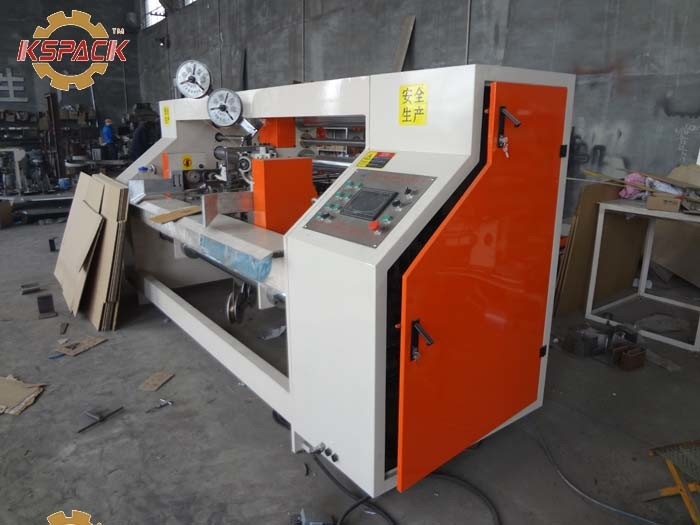

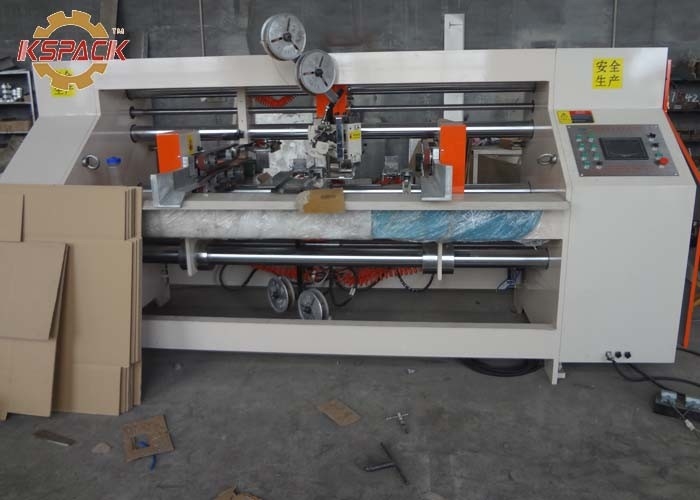

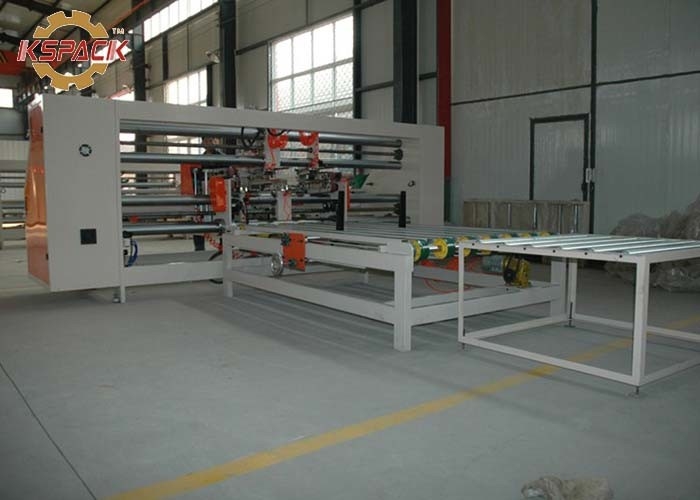

Seim Auto Carton Box Stitching Machine Double Large Size 7000MM

Seim Auto Carton Box Stitching Machine Double Large Size 7000MM

  • High Light

    Seim Auto Carton Box Stitching Machine


    7000MM Carton Box Stitching Machine

  • Dimension
  • Material
    Stainless Steel
  • Max. Stitching Length
  • Max. Stitching Speed
    50-60 Stitches/min
  • Max. Stitching Thickness
  • Max. Stitching Width
  • Power Consumption
  • Power Supply
  • Product Name
    Carton Box Stitching Machine
  • Stitch Length
  • Stitch Thickness
  • Stitch Type
    Single Stitch
  • Stitch Width
  • Type
  • Weight
  • Place of Origin
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1 set per 20 days

Seim Auto Carton Box Stitching Machine Double Large Size 7000MM

Seim Auto Carton Box Stitching Machine Double Large size 7000 MM


1.Carton Box Stitching Machine Description:

The four-servo double-piece semi-automatic nailer is an upgraded version of the semi-automatic nailer. Traditionally, the motor drives gears and bearings to rotate and complete the nailing process, limiting the distance between nails.

Adjusting the nailing distance on traditional machines requires using a wrench to adjust screws on the connecting plate. The servo nailer solves these issues. Its paper feeding system and nail head are controlled by a servo motor and settings can be made directly on the touch screen, saving time and providing an advantage over traditional high-speed nailers.

This machine can nail single, double, and reinforced nails at once, and is easy to operate, with size changes taking only one minute. The automatic paper feeding department can count and bundle nails automatically.

2.Carton Box Stitching Machine Specifications:

Model and parameters SDJ-3500
Maximum paper size(A+B)*2 (mm) 7000
Minimum paper size(A+B)*2 (mm) 3300
The largest carton is longA mm 2850
The smallest carton is longA mm 400
Maximum carton widthB mm 1700
Minimum carton widthB mm 200
Maximum paper height(C+D+C) (mm) 2500
The smallest paper is high(C+D+C) (mm) 400
Maximum rocker sizeC(mm) 560
Minimum rocker sizeC(mm) 50
Maximum altitude;maximum height D(mm) 3000
Minimum heightD(mm) 150
Maximum nail tongue width(mm) 40
pitch of nails;pitch mm 20-120
Nail number 1-99
Nail speed(BPM) 600
Machine weight (T) 5

3.Carton Box Stitching Machine Feature Advantage:

Japan Yaskawa imported four servo drive, accurate precision, mechanical transmission part reduction, can effectively reduce the mechanical failure rate.

The whole control system adopts Omron PLC control system.

The contactors in the control box all adopt the German Siemens brand.

The relay and circuit breaker adopt the French Schneider brand, and the photoelectric and proximity switches adopt the Japanese Omron brand.

Bottom mold, the blade is made of Japanese tungsten steel (wear-resistant).

It only takes one minute to change the size of the carton and adjust the nail distance of the carton, which greatly saves time and is easy to operate.

Can be nailed to lidded lidded carton (if there is a lidded box to be nailed, it must be explained when ordering machinery).

The rear section has an automatic counting function, and the number of finished sheets can be stacked and sent to the end of the conveying machine according to the set number (1-99), which is convenient for packing and bundling.

Mechanical speed: 600 nails/min.

Nail distance: 30-150mm can be adjusted arbitrarily.

One dual-purpose, stapled single-piece staple carton, double-piece staple carton, irregular carton.

The size is fully electric, and it only takes 2-3 minutes to change the size.

Can nail reinforcing nails, single nails, double rows of nails, complete at one time.

The paper feeding department automatically counts, and the finished product is sent out for bundling.

Suitable for small and medium cartons, nailing fast and labor-saving.

Adjust the nail distance, use the computer to set the automatic nail distance, and the nail distance can be adjusted arbitrarily from 20-120mm;

This machine uses a computer screen to display fault instructions.

Cartons with bottoms and no lids can also be nailed (special instructions).

Applicable to three layers, five layers and seven layers of corrugated cardboard (special instructions are required for seven layers)

Automatic wire feeding system, no wire alarm, 20KG large plate flat wire, saving time.

The whole machine is electrically isolated from the transformer regulator protection device.

This machine adopts four servo motors (ie two head motors and two control pin pitch motors).
