Semi-Automatic Carton Box Stitching Machine Stapler For Carton Box
Basic Properties
Place of Origin:
CHINA
Brand Name:
KSPACK
Certification:
CE ISO
Model Number:
KSJG
Trading Properties
Minimum Order Quantity:
1 SET
Price:
Negotiate
Payment Terms:
L/C, D/A, D/P, T/T, Western Union,
Supply Ability:
1 set per 30 days
Product Summary
Semi-Automatic Carton Box Stitching Machine Stapler For Carton Box Carton Box Stitching Machine Description Schneider france original import four servo motor drive ,high precise with few mechnical driving part ,reduce the machine damage. The whole machine control system use the omron plc control ...
Product Details
Highlight:
Carton Box Stitching Machine Stapler
Type:
Packaging Machine
Voltage:
220v/380v/440v
Weight:
Contact
Power:
0.37KW
Dimension(L*W*H):
Machine Model
Automatic Grade:
Semi-Automatic
Condition:
New
Packaging Type:
Cartons
Name:
Carton Box Stitching Machine
Product Description

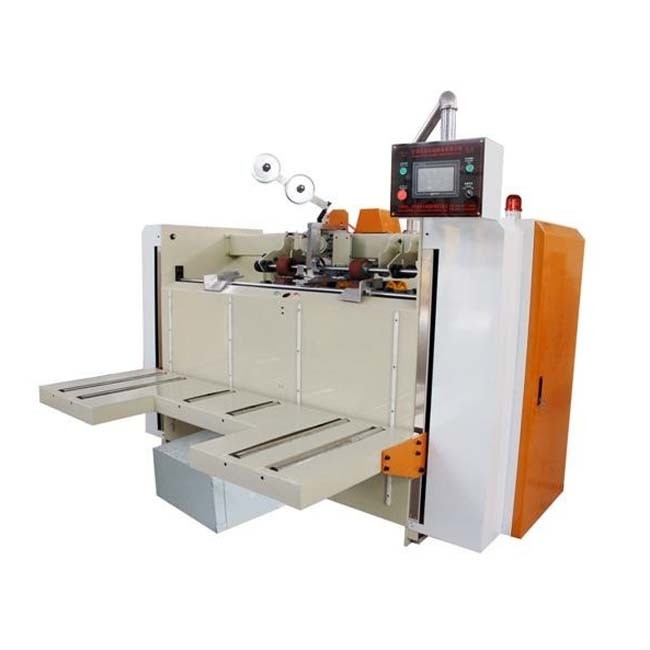

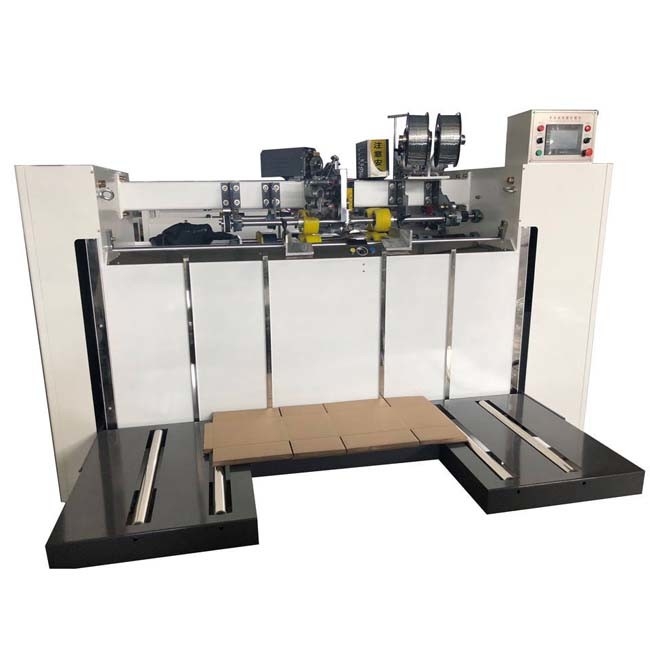

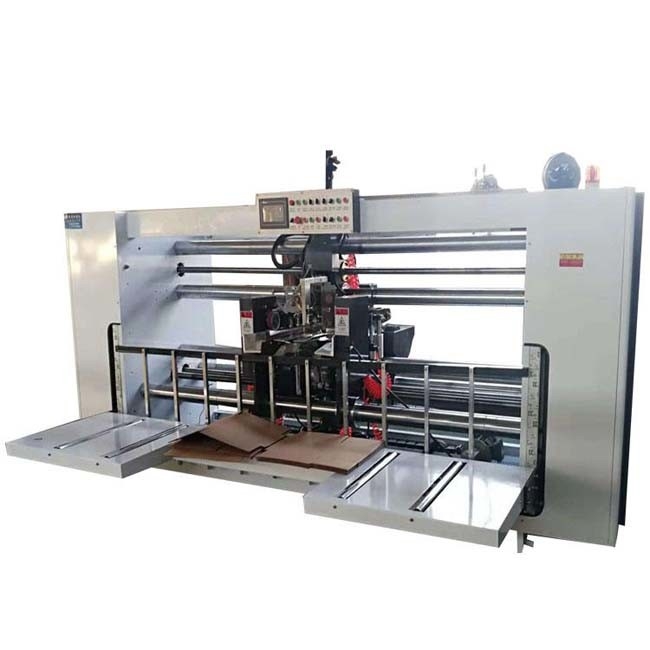

Semi-Automatic Carton Box Stitching Machine Stapler For Carton Box
Carton Box Stitching Machine Description
- Schneider france original import four servo motor drive ,high precise with few mechnical driving part ,reduce the machine damage.
- The whole machine control system use the omron plc control system.
- The contactor in the control box adopt simense brand.
- Displayand circuit breaker adopt schneider ,pohto electric switch and proximity switch adopt omron branch .
- Bottom mould and blade adopt japan tungsten steel.
- Whole stiching head adopt special steel to make , computer digital processed.
- Change the size only need one minute to finish,same as changing the stiching distance.
- Can stich box with lid or box no lid ( when customer need the stiching no lid box must special order ).
- With automatic counting function in the back part ,the finished carton can be delivery to the end by pile ( as the setting number 1-99) ,it is convinnet to strap.
- Mechanic speed :600nail/min.
- Stiching distance 30-150mm, can be adjustabel .
- Two funcion in one machine , can stich single ,double carton ,not normal carton 13.Size adopt whole electric type to control,changing size only need 2-3 mins.
- Can stich strengthen wire , single stapler ,double line stich, finish on one time 15.Feeding part can automatic count ,finsiehd product send out wait strap.
- Sutable for midium and samll type carton ,stich quick and easy.
- The computer set and automatic adjust the distance of stiching ,the stich distance is 20-120mm can be ajusted.
- Adopt computer screen to show the damage instruction.
- No lid box can be stich( special order ).
- Suitable for 3 ply 5 ply 7ply (when use it on 7ply ,customer should order i advance).
- Automatic wire feed system ,no wire alarm, 20kg big dics wire ,can save time.
- Whole machine electrical part adopt Isolated Transformer.
- Adopt 4 servo motor ( 2 head motor, 2 control stich distance motor ).
Carton Box Stitching Machine Specification
|
Model and parameter |
SDJ-3000 |
SDJ-2700 |
SDJ-2400 |
|
MAX PAPE SIZE (A+B)*2 (mm) |
6000 |
5400 |
4800 |
|
MIN PAPER SIZE (A+B)*2 (mm) |
1060 |
1060 |
1060 |
|
MAX BOX LENGHT A mm |
2850 |
2850 |
2850 |
|
MIN BOX LENGHT A mm |
350 |
350 |
350 |
|
MAX BOX WIDTH B mm |
1800 |
1500 |
1200 |
|
MIN BOX WIDTH B mm |
220 |
120 |
120 |
|
MAX BOX HEIGHT (C+D+C) (mm) |
2500 |
2500 |
2500 |
|
MIN BOX HEIGHT (C+D+C) (mm) |
400 |
400 |
400 |
|
MAX COVER SIZE C(mm) |
560 |
560 |
560 |
|
MIN COVER SIZE C(mm) |
50 |
50 |
50 |
|
MAX HEIGHT D(mm) |
2000 |
2000 |
2000 |
|
MIN EHIGHT D(mm) |
150 |
150 |
150 |
|
MAX TONGUE WIDTH (mm) |
40 |
45 |
45 |
|
STICH DISTANCEmm |
30-150 |
30-150 |
30-150 |
|
STICH NO. |
1-99 |
1-99 |
1-99 |
|
SPEED (NAIL/MIN) |
600 |
600 |
600 |
