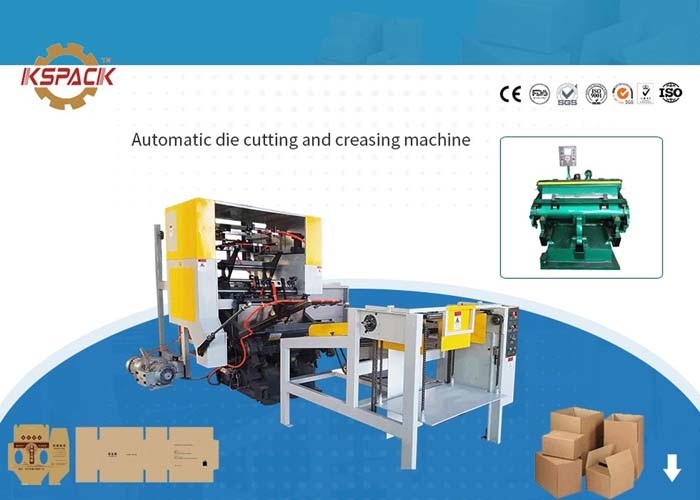

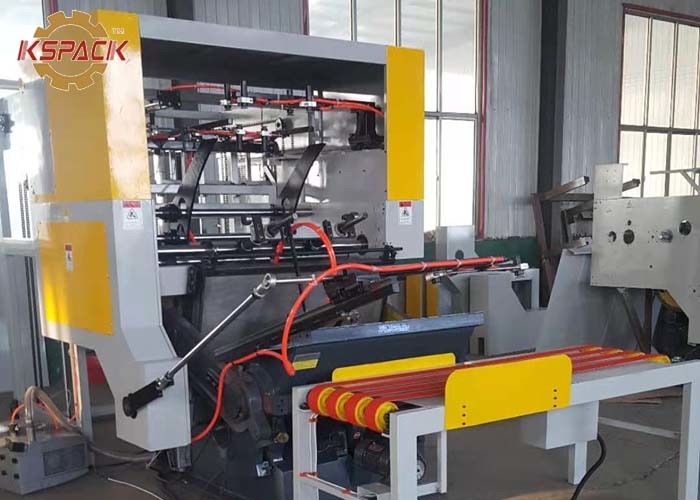

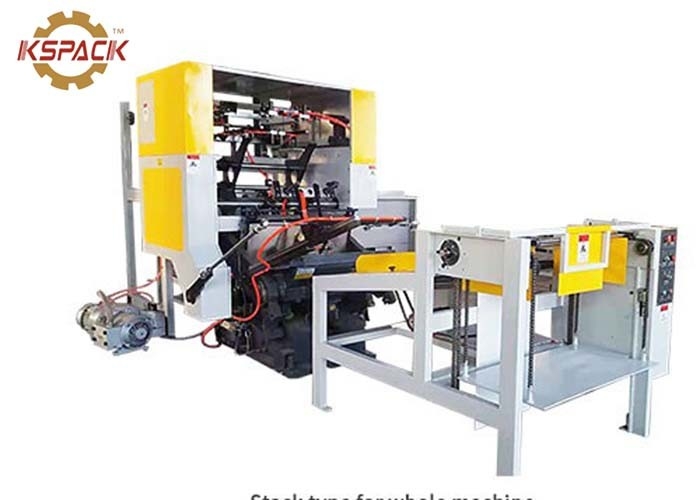

Auto Corrugated Box Die Cutting Machine For Fruit Pizza Vegetable Box
1,Corrugated Box Die Cutting Machine Description:
This automatic die cutting machine manipulator equipment was continuously developed by the scientific and technical personnel of our company through repeated tests.The product is simple in structure, low in cost, fast in operation, convenient in operation, saves labor costs and delivers paper accurately.Make the carton put very little money to have the configuration and function of automatic flattening die cutting machine.
The advent of the boxing machine manipulator makes the ordinary carton machine has the automatic feeding performance of the high speed machine, and is the ideal feeding mechanism for the carton machine.fruit pizza box vegetable box die cutting machine automatic for box carton.
The paper feeding section is mainly used for stacking cardboard and adjusting the position of the cardboard. The paper feed section puts the cardboard of the paper feed section into the cassette machine and corrects the position.
The paper discharge section ejects the jammed paperboard onto the conveyor belt. The paper conveyor conveys the paperboard out of the guardrail.
The vacuum pump provides suction for the robot suction nozzle. The safety fence encloses the machine's work area to prevent people from entering the hazardous area fruit pizza box vegetable box die cutting machine automatic for box carton
2,Corrugated Box Die Cutting Machine Specifications:
| Full automatic die cutting machine | ||
| Machine model | Auto feeder max size | Auto feeder min size |
| Model 930*670 | 880*670 mm | 450*360 mm |
| Model 1100*800 | 1050*800 mm | 550*440 mm |
| Model 1200*830 | 1150*830 mm | 600*420 mm |
| Model 1300*930 | 1250*930 mm | 650*480 mm |
| Model 1500*1050 | 1450*1050 mm | 750*550 mm |
3,Corrugated Box Die Cutting Machine Feature Advantage:
The main wall plate and main frame of the machine frame are connected with 100X50 square pipe. The structure is reasonable and durable.
Most of the transmission shaft adopts linear optical axis
Gears quenched with 45# steel, durable wear-resistant
The suction nozzle adopts a special suction nozzle for a flat pressure die-cutting machine, so the suction force is large and the suction paper is stable.
The vacuum pump adopts 140B oil-free vacuum pump and the gas pipe uses 16mm gas pipe, which provides guarantee for normal operation of the suction nozzle.
Suction nozzle action time control valve adopts our newly developed adjustable time cam control valve, which has reasonable structure, firmness and durability, is not afraid of dust, and has large ventilation volume, which greatly exceeds the rotary divider valve The performance of the) is intended to compensate for the defects of the rotary manifold.
The machine power is taken directly from the boxing machine and runs synchronously with the boxing machine.
The machine is simple in structure and easy to adjust. Electronic counters count for easy counting. Bells are used to alert the user when the device is turned on to increase the safety warning. When the cardboard is fed into the boxing machine, the cardboard is corrected by the movable side gauge, which improves the accuracy of the feeding.fruit pizza box vegetable box die cutting machine automatic for box carton.
