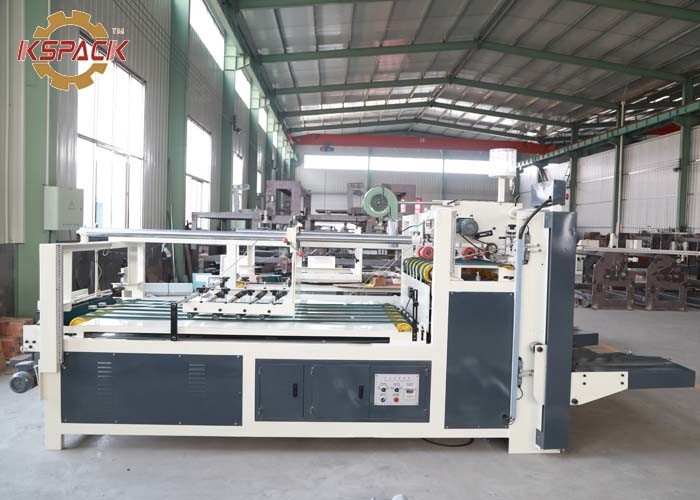

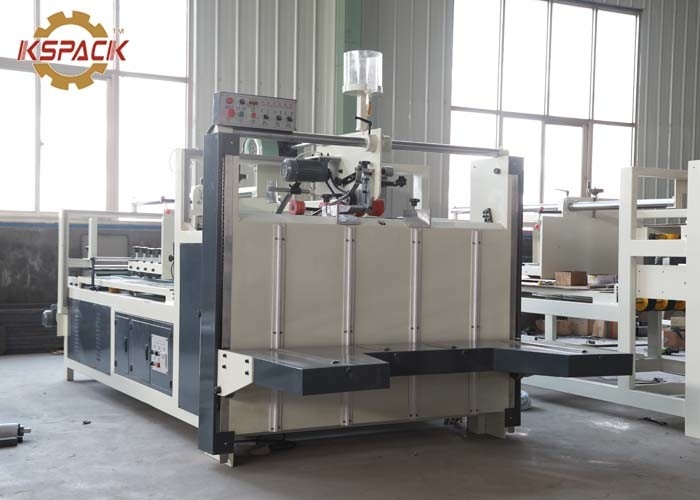

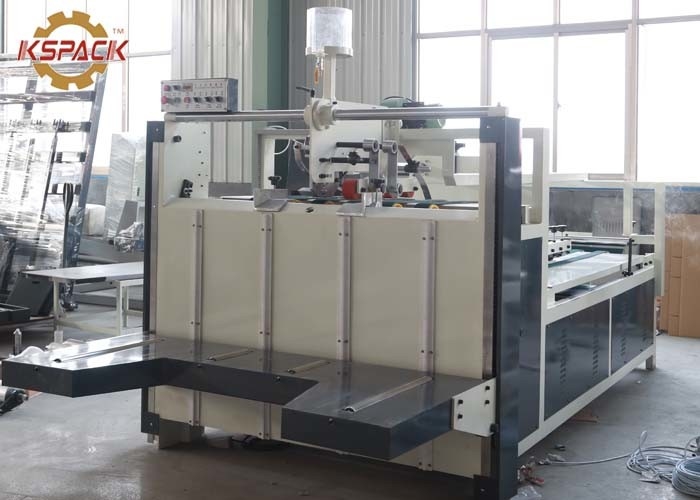

Semi Automatic Corrugated Box Folder Gluer Machine 4 KW PLC Control
1,Box Folder Gluer Machine Description:
ZXJ type semi-automatic sticky box machine,this is a carton production equipment specially designed for the new environment of environmental protection equipment packaging in recent years. Its main purpose is to complete the bonding of cartons. It abandons the traditional copper nail fixing method, significantly improves production efficiency, and produces high-quality cartons. . The main structure of the equipment includes: main frame, lifting table, front transmission parts, middle transmission parts, pressure and equipment, finished product side output parts, electrical control equipment.
ZXJ type semi-automatic sticky box machine further refines and optimizes the machine's structure and functions. With the introduction of high-performance microprocessors and speed up electromechanical system, the processing speed of the machine is increased significantly, and the overall operation stability is also improved. The hardware system of the equipment is equipped with high-quality electronic control devices, which can effectively reduce the mistakes and accidents caused by operation errors, while improving the overall efficiency and productivity.
The interface of the equipment is also wide-open and flexible, which can meet different packaging requirements and customers' needs. In addition, the mechanical parts of the machine are made of high-quality materials, which ensures that the machine can operate reliably and has a long service life. At the same time, the equipment has the advantages of easy maintenance and easy operation, which can provide efficient production and high-quality products.
2,Box Folder Gluer Machine Specifications:
| NAME | PARAMETER | PARAMETER |
| Maximum size L | 2600mm | 2800mm |
| Minimal size L | 340mm | 600mm |
| Maximum size H | 1515mm | 1515mm |
| Minimal sizeH | 240mm | 260mm |
| Give paper height | 900mm | 900mm |
| Motor power | 2.2KW | 3KW |
| Mechanical speed | 40m/min | 40m/min |
| Mechanical weight | 1650kg | 1750kg |
3,Box Folder Gluer Machine Feature Advantage:
ZXJ type semi-automatic sticky box machine ,mechanical speed 40 pcs /min . Using digital counter , auto stacker and side output.
The paper lift can be automatically or foot finish lift, convenient and quick improve production efficiency.
Glue head use us import high quality aluminum material , rubber wheel choose Japan stainless steel, glue tank use the seamles steel drums given glue by nature pressure .
After Coating adhesive and dryer by the high pressure fan , then correction by electronic induction automatic output to middle pressure part, set the number of finished product packaging required, automatic horizontal output.
4,KSPACK Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
Automatic square department correction the flap not in line after glue coat becuase of the press paper error. Automatic counting, accumulation and tidy.
