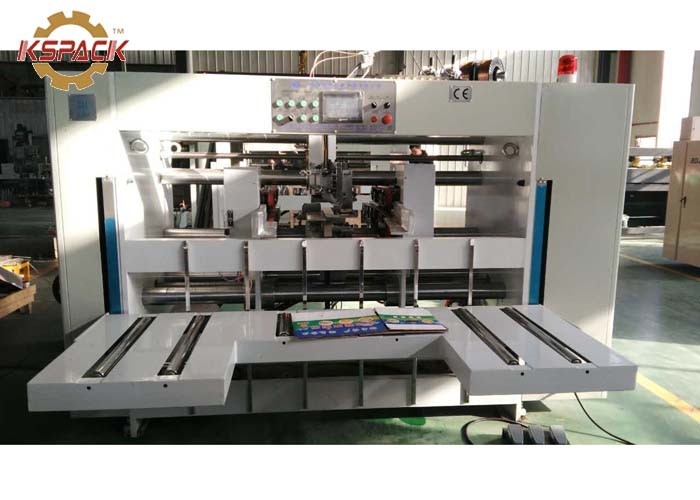

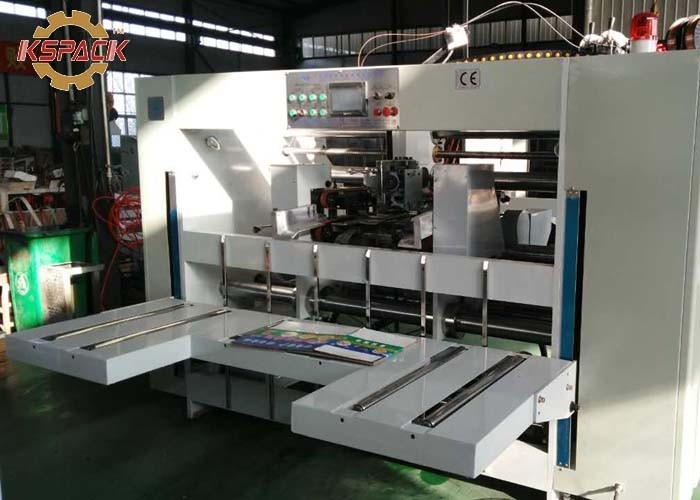

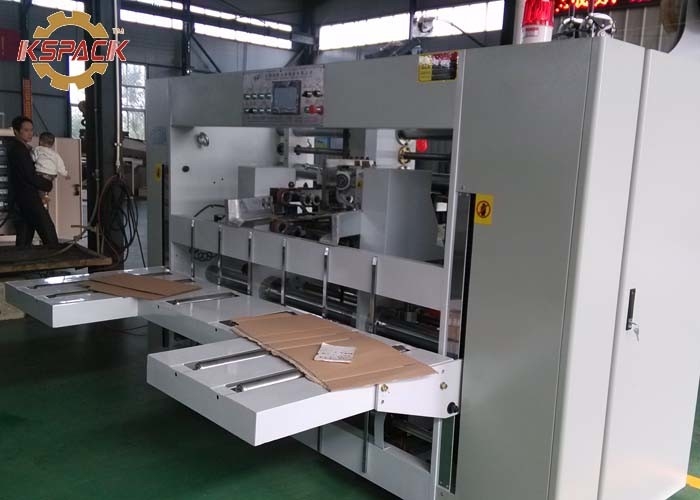

KS 2000 Four Servo Semi Auto Carton Box Stitching Machine Double Piece

KS 2000 Four Servo Semi Auto Carton Box Stitching Machine Double Piece

  • High Light

    Four Servo Semi Auto Carton Box


    Double Piece Semi Auto Carton Box

  • Dimensions
  • Max. Stitch Thickness
  • Max. Stitch Width
  • Power
  • Product Name
    Carton Box Stitching Machine
  • Stitch Count
  • Stitch Distance
  • Stitch Length
  • Stitch Mode
  • Stitch Speed
  • Stitch Type
  • Stitch Width
  • Thread Material
  • Thread Size
  • Weight
  • Place of Origin
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    1 set 40per days

KS 2000 Four Servo Semi Auto Carton Box Stitching Machine Double Piece

KS 2000 Four Servo Semi Auto Carton Box Stitching Machine Double Piece

1,Carton Box Stitching Machine Description:

  • Japanese Mitsubishi four-servo drive, accurate precision, less mechanical transmission parts, which can effectively reduce the failure rate of machinery.
  • The whole control system adopts Omron PLC control system.
  • The contactors in the control box all adopt the German Siemens brand.
  • The relay and circuit breaker adopt the French Schneider brand, and the photoelectric and proximity switches adopt the Japanese Omron brand.
  • Bottom mold and blade are made of Japanese alloy tungsten steel (wear-resistant).
  • The entire set of nail heads are all made of Taiwan original parts, and the service life of the machine head is longer.
  • It only takes one minute to change the carton size and adjust the carton staple distance, which greatly saves time and is easy to operate.
  • The rear section has an automatic counting function, and the number of completed finished products can be stacked and sent to the end of the conveying machine according to the set number (1-99), which is convenient for packaging and binding.
  • The paper feeding part at the front end counts automatically, and the paper feeding table is equipped with a photoelectric sensor device, which automatically rises when feeding paper.
  • Paper feeding height: 900mm.
  • Mechanical speed: 600 nails/min.

2,Carton Box Stitching Machine Specifications:

KS 2000 Four Servo Semi Auto Carton Box Stitching Machine Double Piece 0

Model And Parameters Of The Product.(Mm) KS-1600D SDJ-2000 KS-2500
Largest Paper Size(A+B)*2 3200 4000 5000
Minimum Paper Size(A+B)*2 980 980 980
Maximum Length Of a Large Cardboard Case A 800 1000 1250
Minimum Length Of a Carton A 370 370 370
Largest Case Width B 800 1000 1250
Minimum Paper Box Width B 120 120 120
Largest Paper Height (C+D+C) 2900 2900 2900
Smallest Sheet Height. (C+D+C) 450 450 450
Maximum Flap Size Is Three Inches.C 450 (optional 600) 450 (optional 600) 450 (optional 600)
Minimum Switch Cover Sizec 80 (optional 20) 80 (optional 20) 80 (optional 20)
Maximum Height D 2000 2000 2000
Minimum Height D 200 200 200
The Maximum Nail Tongue Width 40 40 40
The Distance Between The Points Of a Nail. 30-150 30-150 30-150
The Number Of Nails 2-99 2-99 2-99
The Speed Of Nail Nailing Bpm 600 600 600
The Machine's Weight(T) 3.0 3.2 3.5

3,Carton Box Stitching Machine Feature Advantage:

One set is dual-purpose, can nail single-piece stapled cartons, double-piece stapled cartons, and irregular cartons.

Reinforcing nails can be nailed, single nails, double row nails, one-time completion.

The paper feeding part automatically counts, and the finished products are sent out for binding.

Suitable for small and medium cartons, fast and labor-saving staples.

Adjust the nail distance, use the computer to set the automatic nail distance adjustment, the nail distance can be adjusted arbitrarily from 30-150mm;

Automatic wire feeding system, 20KG large flat wire, saving time.

Features of this machine: Three-layer, five-layer and seven-layer cartons are fully controlled by computer to adjust the thickness of the pressing paper, which is fast and accurate.

This machine adopts four servo motors (that is, two head motors and two feeding motors).

The whole machine electrical isolation voltage stabilizing transformer protection device can better protect the service life of the whole computer electrical appliances.

The latest machine adopts full computer to automatically adjust all sizes, and can automatically adjust the size of different models in one minute, fast and accurate, and can store 1000 orders.

Binding method: double oblique nails or single oblique nails/reinforced nails
