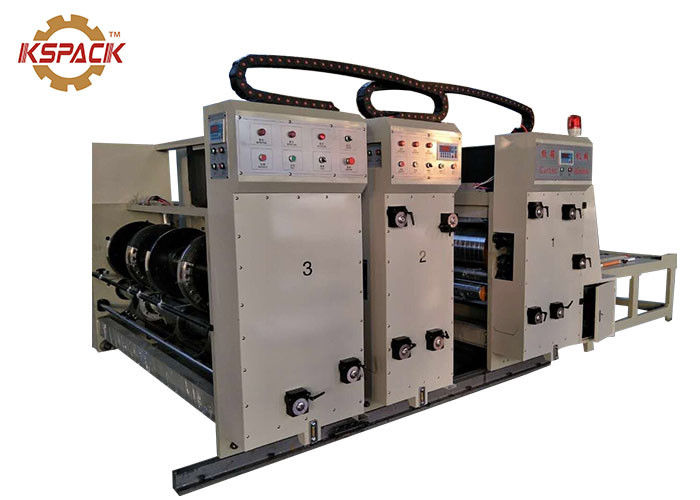

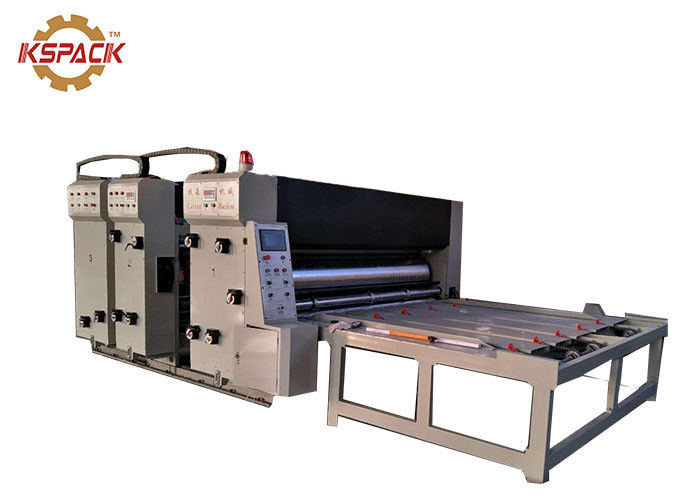

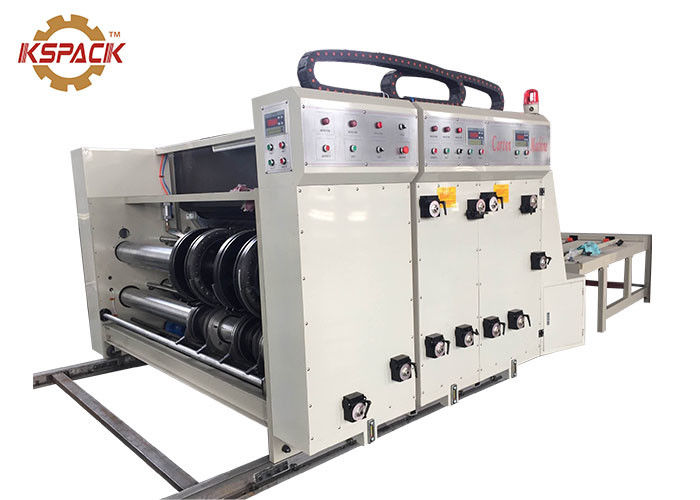

Chain Feeder Corrugated Box Printing Machine Die Cutter 900 * 1800mm High Resolution
Product Details
Chain Feeder Corrugated Box Printing Machine
,High Resolution Corrugated Box Printing Machine
Chain Feeder Corrugated Box Printing Machine Die Cutter 900 * 1800mm
The sheet size can be adjusted by screw adjusting device. Only need one operator. Operation is easy and fast.
. Feeding table is convenient and adjustable, is suitable for many kinds of paperboard. The feeding is precise.
. Conveying belts are made of high quality rubber, big friction, long service life, low noise, maintenance is easy, economical.
. Dual tension control system, stable and convenient.
. Adsorb ( air) feeder paper , reliable and steady ,if have the bend paper ,also not influence paper feed.
2)Transmission unit
. Transmission shafts are empaistic to increase the friction to ensure feeding smooth and fast.
. Equipped with electromagnetic clutch brake device.
3)Electric unit
Adopt PLC control, high automatic.
High quality electric components ensure running stable.
Photoelectric signal through the PLC to control the inverter, and then control the motor, ensure speed-adjusting, braking and running stable.
| Available width of machine | 1600 ~ 3000mm |
| Production speed | 0-60 sheets/min |
| Max. sheet size | 1500~2900mm |
| Min. sheet size | 300mm |
2) Printing department
1the printing roller diameter .480mm.
2,Adopt digit number electrical phase controller ,can 360degree adjust ,save the adjust time ,increase adjust accurate
3,Auto rise the ink plate ,the in ker turning to prevent ink dried.
4,Adopt electrically separation ,pneumatic locking
5.Ink supplied by pneumatic diaphragm pump
6.Main transmission gear made by 45# steel ,it adopts helical gear driving and processed by high frequency quenching.Auto sprinkle lubricating system ensures the machine precise and use life
7all the roller must be chrome – plating in order to increase the hardness 8.the auto count function
9. Have alarm system ,when machine start work there have alarm ,guarantee the work safe
3) Die cutting part with s lotter knife attachment
1,High quality Rubber cushion
2,Double-worm abrasive belt cushion correction facility
3,Cushion axial floating automatically to improve the utilization rate of cushion. The range of floating is 0-20mm (from middle to left or right )
4,Speed difference self-compensating function
5,Die cutting phase is adjusted by electric
6. Die cutting part with s lotter knife attachment
4)TRANSMIT PART
1.Gears with high-frequency steel quenching, reduce noise, improve the print accurate
2.The whole transmission gear adopts the no -key connection device,
| Model | YSF-S 900 | YSF-S 1200 | YSF-S1450 | YSF-S1650 |
|
Diameter of roller |
300MM | 400MM | 480mm | 530MM |
| The max speed | 60PCS | 60PCS | 60pcs/min | |
| The max feeding size | 900X(2200- 2800) | 1200X(2200 -2800) | 1450x(2200-28 00)mm | 1650X(2200-28 00) |
| Slot Min feeding size | 230X600M M | 330X600M M | 350X600mm | 380X600MM |
| Effective printing size | 900X(2000- 2600) | 1200X(2000 -2600) | 1450x(2000-26 00)(mm | 1650X(2000-26 00) |
| The effective thickness |
3.5.7ply (2-12mm) |
3.5.7ply (2-12mm) |
3.5.7ply (2-12mm) |
3.5.7ply (2-12mm) |
|
Printing plate thickness |
6±0.1 | 6±0.1 | 6±0.1 | 6±0.1 |
| The max depth of slot | 250 | 314 | 370 | 416 |
