Semi Auto White Carton Box Stitching Machine One Picce 3600mm
Main configuration:
No. | Name | Brand | Original | Remark |
01 | Machine nose servo motor | 1set | ||
02 | Paper feed servo motor | Schneider | France | 1set |
03 | PLC contactor circuit breaker | Omron | Japan | 1set |
04 | Contactor circuit breaker | Siemens | Germany | / |
05 | Machine nose reducer | xinbao | Japan | 1set |
06 | Intermediate relay | Schneider | France | / |
07 | Nail head | Japan die steel | / | |
08 | Cylinder solenoid valve | dirk | Taiwan | / |
09 | Touch screen | weilun | Taiwan | / |
10 | Blade | Tungsten alloy steel | Resistant to wear and tear | |
11 | Bottom die | Tungsten alloy steel | Corrosion resistant | |
12 | Gear reducer | Ort or cukh | Shanghai | 1set |
13 | Worm gear and worm reducer | zhenyu | shanghai | 2 set |
14 | Bearing | Renben | Jiangsu | / |
15 | Rubber wheel | Madure | Taiwan | 8set |
Main part and function introduction :
1.Schneider France original import four servo motor drive ,high precise with few mechanical driving part ,reduce the machine damage
2.Wenlun touch screen operation the parameter ( nail distance, nail number,nail types,tail gate ) change conveniently
3. The whole machine control system use the omron plc control system
4.Back electrical baffle use the stepper motor driven,size accurate,size changing is more convenient
5.The contactor in the control box adopt simense brand
6.Display and circuit breaker adopt Schneider ,photo electric switch and proximity switch adopt Omron branch .
6. Bottom mould and blade adopt japan tungsten steel
7. Whole stitching head adopt special steel to make , computer digital processed
8. Machine have single nail / ,double nail//, strength nail // / / / //
9.Change the size only need one minute to finish,same as changing the stitching distance
10.Can stitch box with lid or box no lid ( when customer need the stitching no lid box must special order )
11.With automatic counting function in the back part ,the finished carton can be delivery to the end by pile ( as the setting number 1-99) ,it is convenient to strap
12.Mechanic speed 500 nail/min.
13.Stitching distance 30-120mm, can be adjustable.
14.Press paper wheel gap 8 wheel adjust by electric
15.Machine work table max height:900mm

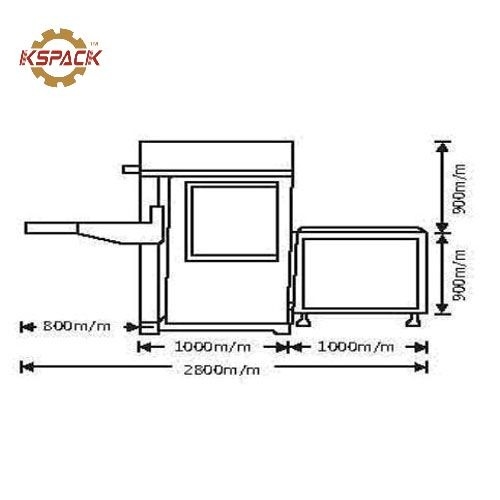

16.The machine size:2.8x2.7x2m
17.Machine weight:2tons
18.Machine can store 600order
19.Machine electrical separate , Isolated Transformer
20.Automatic wire feed system ,no wire alarm, 20kg big disc wire ,can save time.
Parameter introduction :
Parameter | Data | Parameter | Data |

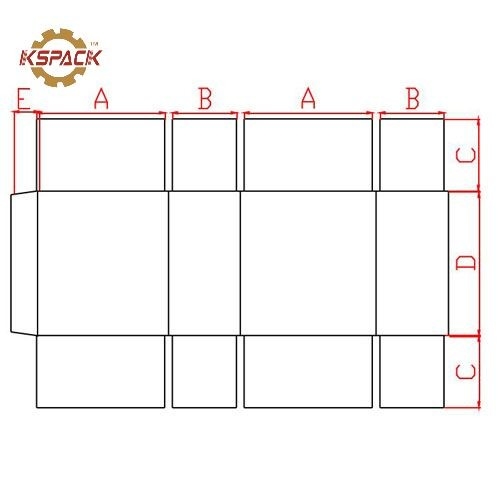

Max size (A+B) X 2 | 3600mm | Min length A | 250 mm |
Min size (A+B) X 2 | 740mm | Max height D | 2000 mm |
Max size (C+D+C) | 3000mm | Min height D | 150 mm |
Min size (C+D+C) | 250mm | Max flay size E | 40 mm |
Min cover size C | 50mm | Max paper height | 900 mm |
Max cover size C | 560 mm | Machine width | 2850 mm |
Max width size B | 760 mm | Machine weight (T) | 2tons |
Min width size B | 120 mm | Machine speed (nail/min) | 500 |
Max length A | 1120 mm | Nail no. | 1-99 |
