KS-3000 Double Pieces Carton Box Stitching Machine 2 Servo Motor

KS-3000 Double Pieces Carton Box Stitching Machine 2 Servo Motor

  • High Light

    Double Pieces Carton Box Stitching Machine


    Servo Motor Carton Box Stitching Machine

  • Color
  • Power
  • Power Supply
  • Product Name
    Carton Box Stitching Machine
  • Size
  • Stitching Angle
  • Stitching Capacity
  • Stitching Height
  • Stitching Length
  • Stitching Material
  • Stitching Speed
  • Stitching Thickness
  • Stitching Type
  • Stitching Width
  • Weight
  • Place of Origin
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Delivery Time
    5-8 Work Days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    1 set 40per days

KS-3000 Double Pieces Carton Box Stitching Machine 2 Servo Motor

KS-3000 Double Pieces Carton Box Stitching Machine 2 Servo Motor


1.Carton Box Stitching Machine Description:

The driving force of the traditional semi-automatic carton box stitching machine comes from the motor, which drives the gear and bearing to rotate to achieve nailing. However, there are certain limitations to the distance of the nailing. If you need to adjust the distance of the nailing, it will be more cumbersome, and you need to use a wrench to adjust the screws on the plate. In contrast, the carton automatic nailing machine driven by high-speed servo motor can better solve these problems. The paper roll system and nail head of this machine are controlled by servo motors, which can avoid unnecessary time waste by simply setting them directly on the touch screen, and have certain advantages over traditional carton box stitching machine in terms of speed.


2.Carton Box Stitching Machine Specification:

Mode land Parameter KSPACK-3000 KSPACK-2700 KSPACK-2400
Max Paper Size(A+B)*2(Mm) 6000 5400 4800
Min Paper Size (A+B)* 2(Mm) 1060 1060 1060
Max Box Length A Mm 2850 2850 2850
Min Box Length A Mm 350 350 350
Max Box Width B Mm 1800 1500 1200
Min Box Width B Mm 220 120 120
Max Box Height (C+D+C) (MM) 2500 2500 2500
Min Box Height (C+D+C)(MM) 400 400 400
Max Cover Size C (MM) 560 560 560
Min Cover Size C (MM) 50 50 50
Max Height D(MM) 2000 2000 2000
Min Ehight D(MM) 150 150 150
Max Tongue Width (MM) 40 45 45
Stitch Distance (MM) 30-150 30-150 30-150
Stitch No. 1-99 1-99 1-99
Speed (Nail/Min) 600 600 600
Weight(T) 4 3.5 3
Machine Outside Size(L*W*H)(MM) 3700*1700*220 3400*1700*2200 3100*1700*2200


3.Carton Box Stitching Machine Feature Advantage:

Schneider france original import four servo motor drive ,high precise with few mechanic driving part ,reduce the machine damage

The whole machine control system use the moron plc control system

The contractor in the control box adopt simense brand

Displayand circuit breaker adopt schneider ,pohto electric switch and proximity switch adopt omron branch .

Bottom mould and blade adopt japan tungsten steel

Whole stiching head adopt special steel to make , computer digital processed

Change the size only need one minute to finish,same as changing the stiching distance

Can stich box with lid or box no lid ( when customer need the stiching no lid box must special order )

With automatic counting function in the back part ,the finished carton can be delivery to the end by pile ( as the setting number 1-99), it is convinnet to strapmechanic speed :600nail/min.

Stiching distance 30-150mm, can be adjustabel.

Two funcion in one machine, can stich single,double carton ,not normal carton 13.size adopt whole electric type to control,changing size only need 2-3 mins.

Can stich strengthen wire , single stapler ,double line stich, finish on one time.

Feeding part can automatic count ,finsiehd product send out wait strap.

Sutable for midium and samll type carton ,stich quick and easy.

The computer set and automatic adjust the distance of stiching ,the stich distance is 20-120mm can be ajusted.

Adopt computer screen to show the damage instruction.

No lid box can be stich (special order).

Suitable for 3 ply 5 ply 7ply (when use it on 7ply ,customer should order i advance).

Automatic wire feed system ,no wire alarm, 20kg big dics wire ,can save time.

Whole machine electrical part adopt isolated transformer.

Adopt 4 servo motor (2 head motor, 2 control stich distance motor).


4.Our Company:

We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.



Q:Are you the trader or manufacturer?

A:We are the manufacturer with export qualification

Q:Do you make OEM? can do

Q:Where are your factory located in?

A:We are in Dongguang town,Cangzhou city,Hebei,china

Q:What is your business process?

A:Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.


6.Our Service:

Free Shipping Replacement Spare You just need to pay the freight

One To One Video Teaching We Provide Operation & Maintenance cd

-11 years experience

-Export to more than 150 countries

-Professional international sales more than 30 persons

-Professional sale team

technical team and after-sales service team

Our KSPACK Group :

Hebei Jinguang Packing Machine Co.,Ltd

Cangzhou Kingsun IMP and EXP Co.,Ltd

Dongguang BaiYing Carton Machinery Co.,Ltd

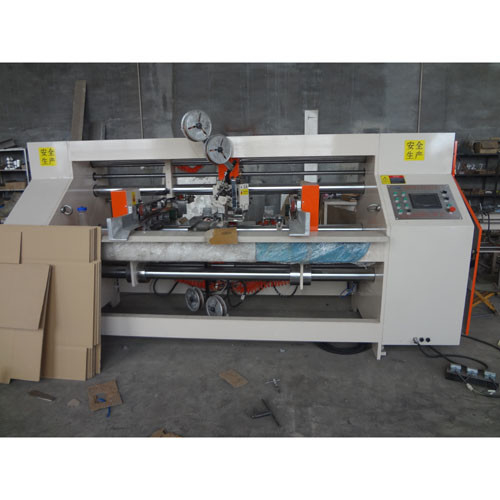

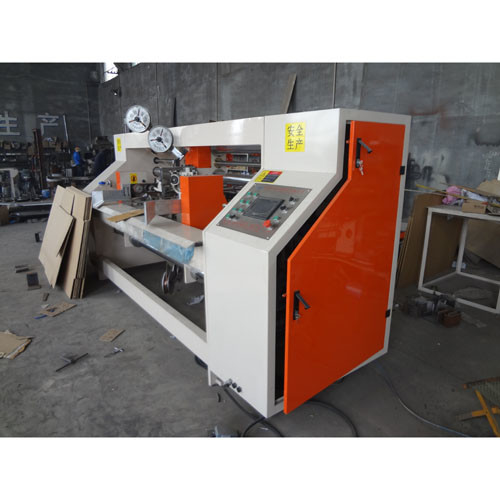

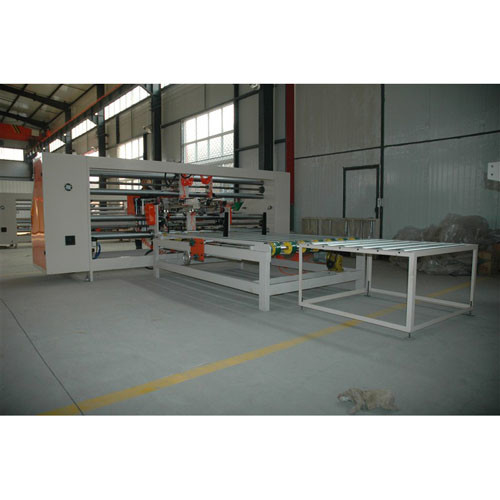

7.Carton Box Stitching Machine Picture:
