High Speed Servo Motor Carton Box Stitching Machine One Pics 2000MM

High Speed Servo Motor Carton Box Stitching Machine One Pics 2000MM

  • High Light

    High Speed Carton Box Stitching Machine


    2000MM Carton Box Stitching Machine

  • Durability
  • Maintenance
  • Name
    Carton Box Stitching Machine
  • Noise Level
  • Power Consumption
  • Power Supply
  • Size
  • Stitching Capacity
  • Stitching Speed
  • Type
  • Weight
  • Place of Origin
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Delivery Time
    5-8 Work Days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    1 set 40per days

High Speed Servo Motor Carton Box Stitching Machine One Pics 2000MM

High Speed Servo Motor Carton Box Stitching Machine One Pics 2000MM


1.Carton Box Stitching Machine Description:

The traditional semi-automatic stitching machine is driven by the motor to drive the gear and bearing rotation to complete the nailing, it nails the distance has a certain limit, if you want to adjust the nail distance is more troublesome, need to take a wrench to adjust the screws in the plate, and high speed servo motor carton box stitching machine solves these processes, the machine's paper feed system and nail head is controlled by the servo motor, it as long as it is directly set on the touch screen, solves the unnecessary waste of time, and there is a certain advantage in speed than the traditional carton box stitching machine.


2.Carton Box Stitching Machine Specification:

Max size (A+B)X2 3600mm min length A 250 mm
Min size A+B)X2 740mm Max height D 2000 mm
Max size (C+D+C) 3000mm Min height D 150 mm
Min size (C+D+C) 250mm Max flay size E 40 mm
Min cover size C 50mm Max paper heigh 900 mm
Max cover size C 560 mm Machine width 2850 mm
Max width size B 760 mm Machine weight(T) 2tons
Min width size B 120 mm Machine speed(nail/min) 500
Max length A 1120 mm Nail no. 1-99


3.Carton Box Stitching Machine Feature Advantage:

Mitsubishi japan double servo drive,precision accuracy,mechanical transmission part is reduced,which can effectively reduce the failure rate of the machinery.

carton box stitching machine the whole control system adopts moron plc control system.

The carton box stitching machine control box cont-actor used in Germany Siemens brand.

The relay circuit breaker using french brand Schneider,photoelectric and proximate witch with japan’s moron brand.

The bottom die blade adopts Japanese tungsten steel production(wear)

The whole set of nail heads are made of Taiwan original parts, and the machine head has longer service life.

The transform carton size and adjusting nail carton from just one minute can be completed,greatly saves time and is convenient to operate.

The automatic carton box stitching machine after the paragraph with the function of automatic counting,finished cartons can be set according to the number (2-99)sub stack sent to the conveying machinery terminal, convenient bundling.

The machine speed:600 nails per minute.

The nail spacing:30-120mm adjustable

A dual-purpose can nail a monolithic ground nail carton,twin sheet nail carton,irregular box.

The dimensions using all electric control,transform size only 1-2 minutes.

It can nail nails/single,double screw,strengthening nails (two double nail in the middle part of single screw) once complected, can be suitable for different customer requirements of different kinds of nail.


4.Our Company

We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery. Our products are widely used in various industries such as printing, packaging, food, beverage, pharmaceutical, cosmetic and so on. We have a strong R&D team and a strict quality control system to ensure the performance and reliability of our products. We also offer after-sales service and technical support to our customers.



Q:Are you the trader or manufacturer?

A:We are the manufacturer with export qualification

Q:Do you make OEM? can do

Q:Where are your factory located in?

A:We are in Dongguang town,Cangzhou city,Hebei,china

Q:What is your business process?

A:Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.


6.Our Service

Free Shipping Replacement Spare You just need to pay the freight

One To One Video Teaching We Provide Operation & Maintenance cd

-11 years experience

-Export to more than 150 countries

-Professional international sales more than 30 persons

-Professional sale team

technical team and after-sales service team

Our KSPACK Group :

Hebei Jinguang Packing Machine Co.,Ltd

Cangzhou Kingsun IMP and EXP Co.,Ltd

Dongguang BaiYing Carton Machinery Co.,Ltd

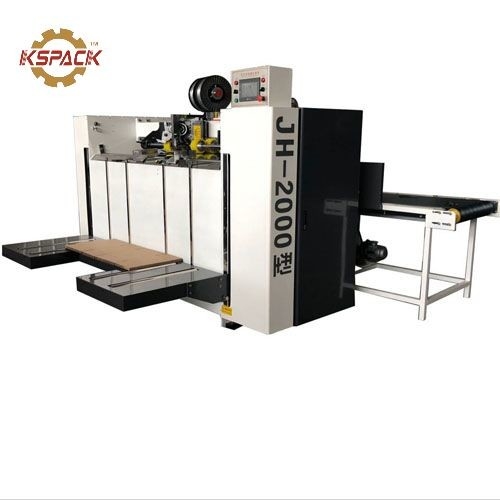

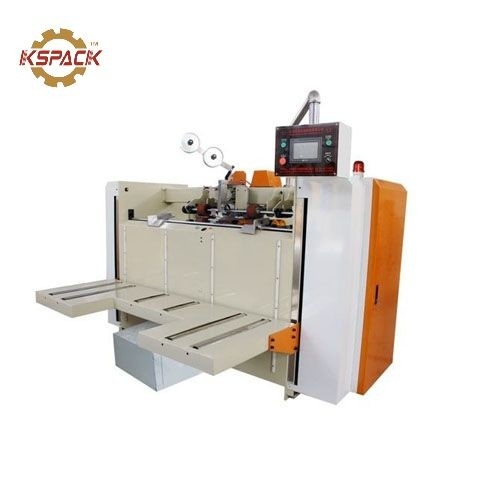

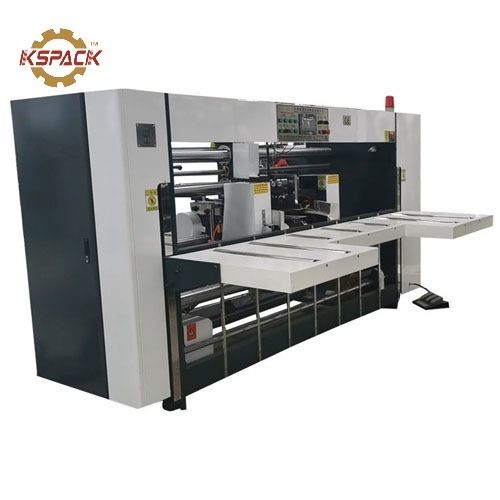

7.Carton Box Stitching Machine Picture:

High Speed Servo Motor Carton Box Stitching Machine One Pics 2000MM 0
