Ceramic Anilox 3 Colors Corrugated Box Printing Machine Vacuum Transfer
1.Corrugated Box Printing Machine Description:
This corrugated board printing machine uses ceramic anilox and full vacuum transfer to protect the greatest degree of the board, and ensure the pressure of the board unchanged.
The whole machine adopts plc control, which can accurately adjust the efficiency of the machine, to produce the size of corrugated boxes required by customers. This machine is all assembled from well-known electronic components and high-quality raw materials.
Simple operation, high production efficiency, good product quality, stable operation, and after-sales guarantee. Many cardboard and carton manufacturers like this machine and has been exported to overseas countries.
2.Corrugated Box Printing Machine Specifications:
| Model | Ceramic Anilox 3 Colors Corrugated Box Printing Machine Vacuum |
| Printer Color | Multi Color |
| Machine Size | Wall Board To Wall Board Size 2000/2200/2400/2600/2800/3000Mm |
| Machine Design Speed | Design Speed 200Pcs /Min |
| Work Speed | 180Pcs /Min |
| Machine Wall Board Size Mm | 60 |
| Gena Thickness (Mm) | 50-60 |
| Max Passing Paper Size (Mm) | 1200X2400 |
| Skip Paper Size (Mm) | 1400*2400Mm |
| Max Print Size (Mm) | 1200*2200mm |
| Thickness Of The Plate (Mm) | 3.2---7.2 |
| Board Thickness (Mm) | 3---12 |
| Board Print Accurate (Mm) | Print ±0.5/ Slot Open Accurate ±1.5 |
| Power At Production(Km) | 30 |
| Ultimate Capacity (Km) | 45 |
3.Corrugated Box Printing Machine Feature Advantage:
Feeding Unit
Edge-leader feeding system: Adopt light pressure edge-leader feeding system,reduce 60% friction be- tween paperboard and the platform,Chinese advanced technology,with character of protecting original strength of paperboard ,avoiding damaging the corrugate and avoiding pressing to thin. It is good to transport smoothly after pressing line,with stable system,feeding quickly and precisely,suitable for all kinds of corrugated paperboard.
Vacuum absorption to assist feeding,the air volume and air press can be adjusted as the paperboard size. Double transport roller configuration: The front group feeding paper rollers adopt pneumatic flexible pa-
Per-feeding rubber roller.not damage the strength of the paperboard with upper absorbing wind dust- away equipment,can effectively clean the waste on the printing face, improved the printing quality.
Electrically adjust the left block and back block box,with pneumatic patting equipment,to make the paperboard position more precisely.

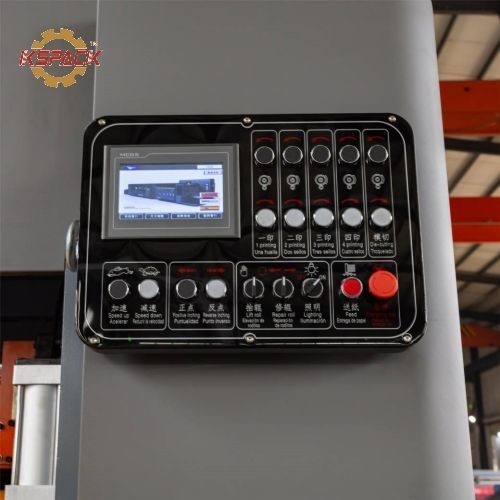

10.4inch colorful touch screen control feeding part,printing part,slot part,die-cutter part,can return zero once,memorize order,memory reset,production speed 60,80,100 constant speed cruise,infrared ray photoelectric counting,per-set quanta of the order.
Printing Unit
Printing roller and driving roller adopt high quality steel,computer dynamic balance,eliminate the off-center force, grind face and chrome plated.
Printing roller adopt holding plate equipment Ratchet wheel Fixed type the holding plate roller whole plate holding groove,front step electric control positive and neg- rive rotate,install and uninstall the plate quickly and conveniently.
Rubber roller even ink system: steel pipe face with wearable rubber,middle part higher the special grinding , perfect for conveying ink(option;scraper even ink system) Ink anilox roller: steel tube face is abraded, embossed in mesas and hard chrome plate (option: ceramic roller ,anilox net quantity is 160--500 user can choose).
4.Our Company:
We are a professional supplier of corrugated machinery,including automatic high speed flex printer slot die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery. We have rich experience and expertise in the field of corrugated machinery, and we can provide customized solutions for different customers’ needs. We are committed to delivering high quality products and services with competitive prices and timely delivery.
5.FAQ:
Q:Are you the trader or manufacturer?
A:We are the manufacturer with export qualification
Q:Do you make OEM?
A:Yes.here can do
Q:Where are your factory located in?
A:We are in Dongguang town,CangZhou city,Hebei,china
Q:What is your business process?
A:Talking about clients requirements, confirm machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.
6.Our Service:
Free Shipping Replacement Spare You just need to pay the freight
One To One Video Teaching We Provide Operation & Maintenance CD

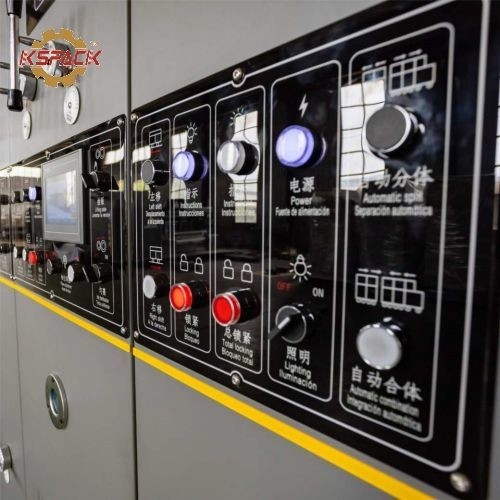

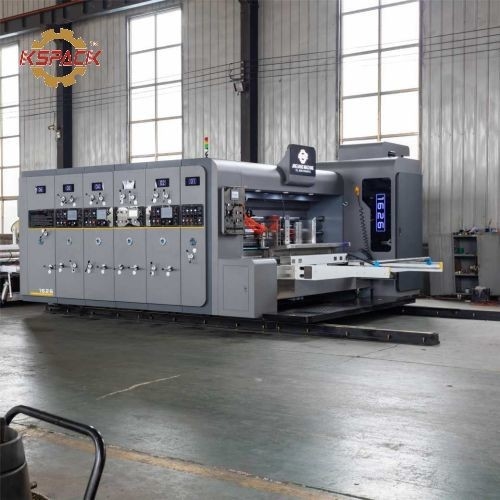

7.Corrugated Box Printing Machine Picture:
Our products are sold all over the world, you can rest assured.
