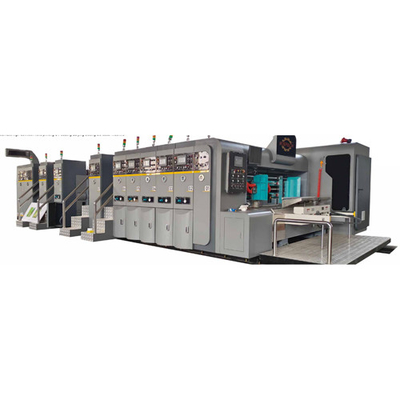

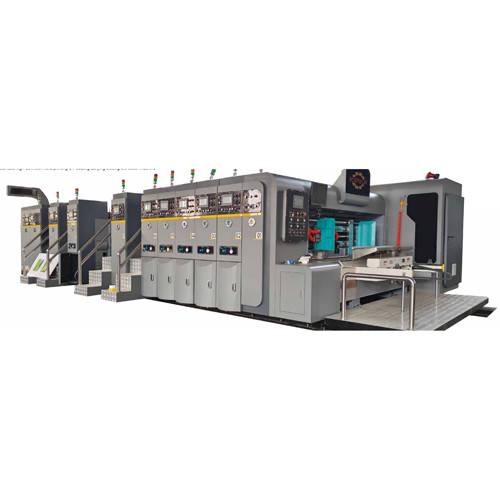

High Definition Corrugated Box Printing Machine UV Coating Drying

High Definition Corrugated Box Printing Machine UV Coating Drying

  • High Light

    High Definition Corrugated Box Printing Machine


    UV Drying Corrugated Box Printing Machine

  • Type
    Flexographic Printer
  • Automatic Grade
  • Voltage
  • After-sales Service Provided
    Overseas Service Center Available
  • Condition
  • Warranty
    1 Year
  • Name
    Corrugated Box Printing Machine
  • Application
    Pizza Box Printing Machine With Automatic Feeder
  • Speed
    120-180 Sheets/min
  • Place of Origin
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Delivery Time
    5-8 Work Days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    1 set 60per days

High Definition Corrugated Box Printing Machine UV Coating Drying

High Definition Corrugated Box Printing Machine UV Coating Drying


Paper feeding unit

The leading edge paper feeding device has a double feeding roller system to reduce the crushing of the fed cardboard.

The brush dust removal device can adjust the vacuum air flow and pressure by frequency conversion to adapt to different cardboard sizes and curved cardboards.


Printing unit

Ceramic aniox roller with doctor blade, vacuum suction box to transfer cardboard, PLC, touch screen control system, storage menu, and automatic correction, electric Micro adjustment system Scroll hanging board layout.


Drying unit

Infrared light source. Three breeze fans make the cardboard heated evenly and dry quickly.


Slotting unit

Slotting part fully computer control, slotting 4-way lead screw

6-knife shaft, the slotting knife is made of high-quality steel.

Sloting Knife width 7mm, alloy material, heat-treated, ground, toothed grooving knife, sharp edge and high precision.

The adjustment of the slotting knife is driven by a geared motor.


Die-cutting unit

The phase adopts planetary gear structure, PLC touch screen control, and full computer adjustment.

Quick-change rubber pad, mechanical speed difference compensation mechanism.

参数名称 Name of parameter JGY-HS-900 JGY-HS-1200 JGY-HS-1400
色组 Color Group


Everything can be quipped according to users'needs

印刷用纸 Printing Paper A,B,C,A/B,B/C和A/B/C坑瓦楞纸板(最大间隙量11mm)
机械设计速度 Production Speed







经济速度 Economic speed







最大过纸尺寸 Max.Paper Sizes 900×1800/2000 2200/2400/2600mm 1200×1800/2000 2200/2400/2600mm 1400×1800/2000 2200/2400/2600mm


Min.Paper Sizes

正刀 Positive knife

反刀 negative knife







最大印刷尺寸 Max.Pringing Sizes 900x1600/1800 2000/2200/2400mm 1200×1600/1800 2000/2200/2400mm 1400x 1600/1800 2000/2200/2400mm
最大模切尺寸 Max die-cutting size 900×1700/1900 2100/2300/2500mm 1200×1700/1900 2100/2300/2500mm 1400×1700/1900 2100/2300/2500mm
标准印版厚度 Standard Printing Plate Thickness 7.2mm
开槽宽x最大深 度 Slot Widthx Max.depth

7mm x 220mm 7mmx300mm 7mmx350mm

(可增加刀片,加大开槽深度)(Number of blade and slot depth may be added)


Min.Slot Space

正刀 Positive knife

反刀 negative knife

150*150*150*150mm 250*90*250*90mm 170*170*170*170mm 260*90*260*90mm 170*170*170*170mm 260*90*260*90mm



Printing Roller Dia.

(Plus Printing Plate Thickness)

300mm A08mm 480mm

Our Company

We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery. We have rich experience and expertise in the field of corrugated machinery, and we can provide customized solutions for different customers’ needs. We are committed to delivering high quality products and services with competitive prices and timely delivery.



Q:Are you the trader or manufacturer?

A:We are the manufacturer with export qualification

Q:Do you make oem? can do

Q:Where are your factory located in?

A:We are in dongguang town,cangzhou city,hebei,china

Q:What is your business process?

A:Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.
