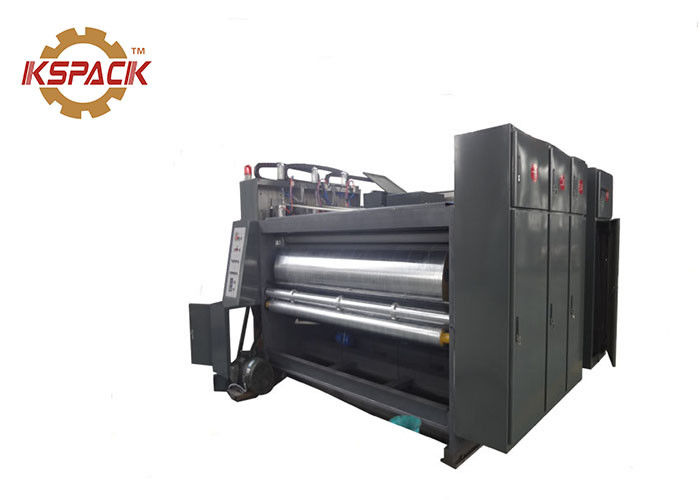

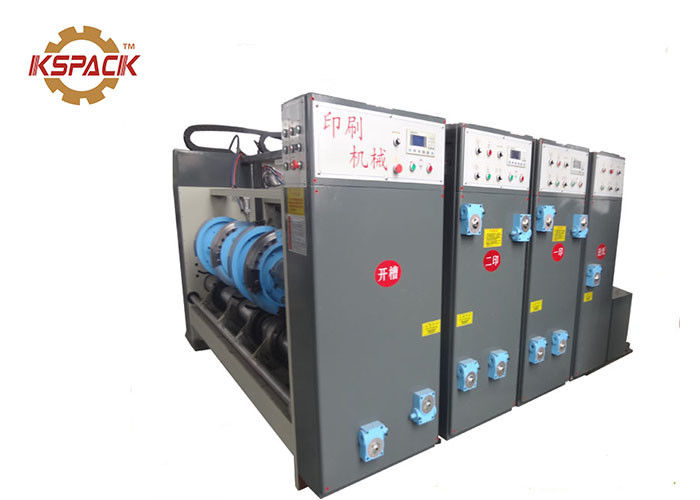

Slotting Die Cutting 2 Colors Corrugated Box Printing Machine PLC

Slotting Die Cutting 2 Colors Corrugated Box Printing Machine PLC

  • Highlight

    PLC Corrugated Box Printing Machine

    ,

    Die Cutting Corrugated Box Printing Machine

  • Printing Color
    2 Colors
  • Printing Plate
    Aluminum Plate
  • Printing Plate Cleaning
    Automatic
  • Printing Plate Size
    1400*1800mm
  • Printing Precision
    ±0.15mm
  • Printing Quality
    High Resolution
  • Printing Speed
    50-60pcs/min
  • Product Name
    Corrugated Box Printing Machine
  • Automatic Grade
    Automatic
  • Voltage
    220V/380V/440V
  • After-sales Service Provided
    Avaliable
  • Condition
    New
  • Warranty
    1 Year
  • Color
    Customize
  • Place of Origin
    CHINA
  • Brand Name
    KSPACK
  • Certification
    CE ISO
  • Model Number
    KSJ
  • Minimum Order Quantity
    1SET
  • Price
    Negotiate
  • Delivery Time
    5-8 Work Days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    1 set 60per days

Slotting Die Cutting 2 Colors Corrugated Box Printing Machine PLC

Slotting die cutting 2 Colors Corrugated Box Printing Machine PLC

1.Corrugated Box Printing Machine Description:

A corrugated box printing machine is a machine that can directly print patterns and text on corrugated cardboard, and is usually used in the packaging industry.

It can improve production efficiency, save material costs, meet individual needs, and enhance the aesthetics and brand image of packaging.

2.Corrugated Box Printing Machine Feature Advantage:
Feeding Unit
Edge-leader feeding system: sdopt light pressure edge-leader feeding system,reduce 60% friction be-tween papertoard and he pilatorm,Chinese sovanced technology wth character of protectng originalsengh of papta pres
Vacuum absopien to assist feeding.the air voume and air press can be angusted as the papartoard size.Double transpor roller configuration: the front group feeding paper rollers adopt pneumatic flexible pa-per-feeding rubber roller,not damage the strength of the paperboard,with upper absorbing wind dust-away equipment,can efectively clean the waste on the printing face, improved the printing quality.Electircaly adust the left bilcck and back bick box wth pneumaic patng equpmento make thesavad resalon mone preclsely
once,memorize ordermemory reset producton speed 60,80,100 Constant speed cnuise,nirared raypholoeleciric counting.pre-set quantily of the order.
Printing Unit
ining aler and diing rler adapthigh gusity stelcompter cinanic balane simnistg the of snte feces.gindsd acs and chene piatsdpostve and negebber roller even ink system: steel pipe face with wearitble rubber,middle part higher the special grinding , perfect for conveying ink(option:scraper even ink system)Ink;user can choose)both run and stop),converter motor drive,change rotating speed of roller as requirement,precision is 0.1mm,quick and conwenient,printing roller moving axially adopttouch screen and eleclrical digiial to adjustadjusting amrange is 10mm.
Thowgh ink ailer gap.srpring presing raler paperteadng oler gap atpt double grade worm wheel box to adlust,gravimetre show diglal.(0-10mm)oovenient toadjust and with self-lock funtion
Die-cutter unit
Rubber rollerroff-cutter casting steel pipe, computer dynamic balance. Steelpipe face is ginded and chrome plated, adopt mechanical crosswise ±20mmmoving equipment,to improve the using life of the rubber. the speed diferentautomatic compensate equipmentis used for correcting die-cutter error becausethe nutber wear and tear souble grate worm box atjust gap gravimetrie showdigital.convenient to adjust,with self-lock equipment.Die-cuter rolleroff-center casting steel pipe, computer Dynamic balance, Steelpipe face is grinded and chrome plated(opion: free mould die-cuter slot steelbace moud ,slot and cut comer for common caron wth unton of adusingcarton height synchronous)
◇Die-cutter roller phase and axial adjust: Planet type gear configuration adjustphase, PLC touch screen and electrical digital in 360 degree,converter motordrive,axial moving adjusting adopt PLC touch screen and electrical digital ,ar-rangment is 15mm.
Rubber roller repairing configuration,rubber can be used for many time,save thecost largely.
Automate ciean the waste equipment smoohly take away the waste trom heslotter and die-cutter unit.

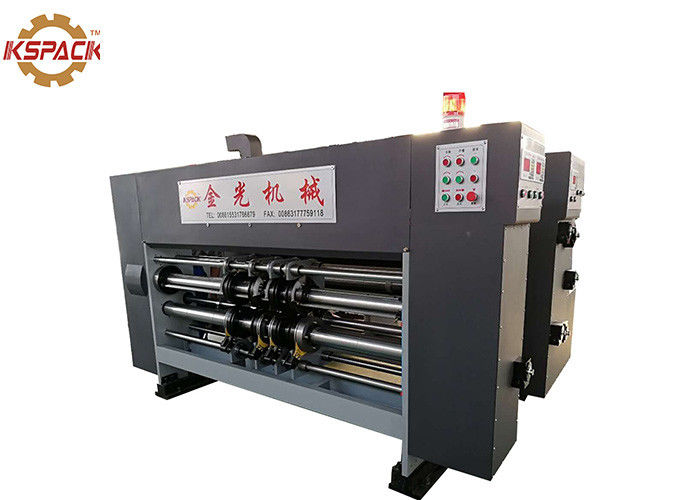

Slotter Unit
◇All the carton size, include the carton height and phase is finished by comput-er, human machine interface, save time and labor, improved work efficiency.can memory 500 orders.
◇Adopt double roller configuration,large diameter pressing line wheel, withgood pressing line shafts.
Slotter blade base, pressing line wheel and cutting side blade crosswise mov-ing configuration adopt precisa ball screw, moving with high precision,makecuting or position between upper and down blade more precisely, prolongusing life of blade.
Fexible cuting comer blade configuralion, can cut of 3-ply ar S-ply paper-board and don't need to adjust.
Slotter tooks adopt good qualily alloy steel, through heat-treatment and grind-
ing. with great hardness and wearability. long using life.
◇Can choose hole or punching equipment as requirement.




3.Corrugated Box Printing Machine Specifications:

参数名称 Name of parameter JGY-HS-900 JGY-HS-1200 JGY-HS-1400
色组 Color Group

可按用户需要配置

Everything can be quipped according to users'needs

印刷用纸 Printing Paper A,B,C,A/B,B/C和A/B/C坑瓦楞纸板(最大间隙量11mm)
机械设计速度 Production Speed

300片/分

(Pieces/min)

250片/分

(Pieces/min)

150片/分

(Pieces/min)

经济速度 Economic speed

250片/分

(Pieces/min)

200片/分

(Pieces/min)

130片/分

(Pieces/min)

最大过纸尺寸 Max.Paper Sizes 900×1800/2000 2200/2400/2600mm 1200x1800/2000 2200/2400/2600mm 1400x1800/2000 2200/2400/2600mm

最小过纸尺寸

Min.Paper Sizes

正刀 Positive knife

反刀 negative knife

300×640mm

300×720mm

350×720mm

350×740mm

400×720mm

400×740mm

最大印刷尺寸 Max.Pringing Sizes 900×1600/1800 2000/2200/2400mm 1200×1600/1800 2000/2200/2400mm 1400×1600/1800 2000/2200/2400mm
最大模切尺寸 Max die-cutting size 900×1700/1900 2100/2300/2500mm 1200x1700/1900 2100/2300/2500mm 1400×1700/1900 2100/2300/2500mm
标准印版厚度 Standard Printing Plate Thickness 7.2mm
开槽宽×最大深 度 Slot Width x Max.depth

7mm×220mm 7mm×300mm 7mm×350mm

(可增加刀片,加大开槽深度)(Number of blade and slot depth may be added)

最小开槽近距

Min.Slot Space

正刀 Positive knife

反刀 negative knife

150*150*150*150mm 250*90*250*90mm

170*170*170*170mm

260*90*260*90mm

170*170*170*170mm

260*90*260*90mm

印刷辊直径

(加版厚)

Printing Roller Dia.

(Plus Printing Plate Thickness)

300mm 408mm 480mm

4.Our Company

We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.

5.FAQ

Q:Are you the trader or manufacturer?

A:We are the manufacturer with export qualification

Q:Do you make oem?

A:Yes.here can do

Q:Where are your factory located in?

A:We are in dongguang town,cangzhou city,hebei,china

Q:What is your business process?

A:Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.
