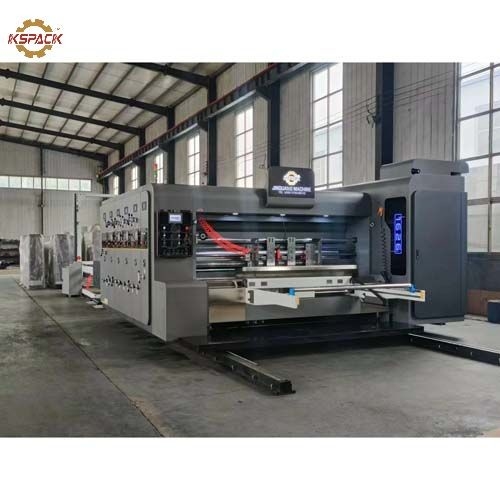

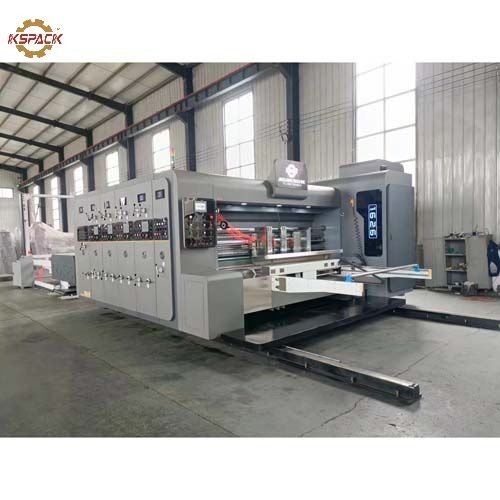

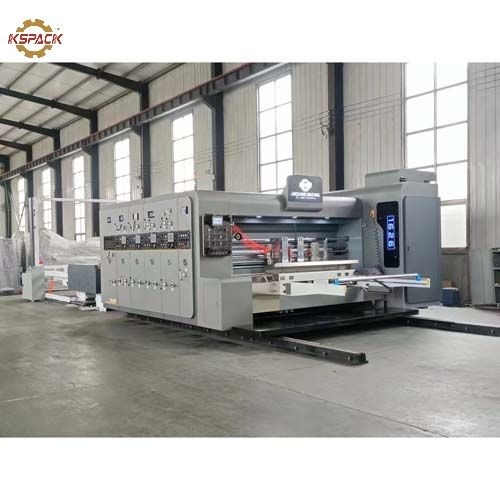

PLC Control 3 Colors Corrugated Box Printing Machine With Slotting
1.Corrugated Box Printing Machine Description:
A corrugated box printing machine is a machine that can directly print patterns and text on corrugated cardboard, and is usually used in the packaging industry.
It can improve production efficiency, save material costs, meet individual needs, and enhance the aesthetics and brand image of packaging.
2.Corrugated Box Printing Machine Feature Advantage:
Computer order storage and adjustment, faster order update and convenient operation.
Complete machine wallboard and other important pieces are all made by high precision process center and grind-ed by digit-controlled grinder.
Al the transmission axle and rollers are made of high-quality steel with high-precision dynamic balance, platedwith rigid chrome and grinded surface.
The transmission gear adopts the high-quality steel, which is grinded after heal-treatment, after long using, it stilmaintains the high topping precision.
The main machine transmission parts adopt the hand-free connection ring to eliminate the interval, suitable forlong-term high speed printing.
The whole machine undergoes the spray lubrication and is equipped with engine oil automatic balance facilties.
It possesses the print, die-cuting, slotting memory function, which could return to Zero and Re-set automatically.
PCLINK control network, MCGS software, Siemens low voltage electric appliance and host frequency conversioncontrol, 30% electricity saving.
Double axle slotting to configure whole machine production management computer control system and singleaxle slotting to configure whole machine production management computer control systemCustomer can choose use steel anilox roller or ceramic roller,the lines of the anilox roller can be chosed accordingto customer need.
It is optional to install high mesh line ceramic roller with closed cavity scraping system to realize 80-90 mesh lineorinting.
3.Corrugated Box Printing Machine Specifications:
| 参数名称 | Name of parameter | JGY-HS-900 | JGY-HS-1200 | JGY-HS-1400 |
| 色组 | Color Group |
可按用户需要配置 Everything can be quipped according to users'needs |
||
| 印刷用纸 | Printing Paper | A,B,C,A/B,B/C和A/B/C坑瓦楞纸板(最大间隙量11mm) | ||
| 机械设计速度 | Production Speed |
300片/分 (Pieces/min) |
250片/分 (Pieces/min) |
150片/分 (Pieces/min) |
| 经济速度 | Economic speed |
250片/分 (Pieces/min) |
200片/分 (Pieces/min) |
130片/分 (Pieces/min) |
| 最大过纸尺寸 | Max.Paper Sizes | 900×1800/2000 2200/2400/2600mm | 1200x1800/2000 2200/2400/2600mm | 1400x1800/2000 2200/2400/2600mm |
|
最小过纸尺寸 Min.Paper Sizes |
正刀 Positive knife 反刀 negative knife |
300×640mm 300×720mm |
350×720mm 350×740mm |
400×720mm 400×740mm |
| 最大印刷尺寸 | Max.Pringing Sizes | 900×1600/1800 2000/2200/2400mm | 1200×1600/1800 2000/2200/2400mm | 1400×1600/1800 2000/2200/2400mm |
| 最大模切尺寸 | Max die-cutting size | 900×1700/1900 2100/2300/2500mm | 1200x1700/1900 2100/2300/2500mm | 1400×1700/1900 2100/2300/2500mm |
| 标准印版厚度 | Standard Printing Plate Thickness | 7.2mm | ||
| 开槽宽×最大深 度 | Slot Width x Max.depth |
7mm×220mm 7mm×300mm 7mm×350mm (可增加刀片,加大开槽深度)(Number of blade and slot depth may be added) |
||
|
最小开槽近距 Min.Slot Space |
正刀 Positive knife 反刀 negative knife |
150*150*150*150mm 250*90*250*90mm |
170*170*170*170mm 260*90*260*90mm |
170*170*170*170mm 260*90*260*90mm |
|
印刷辊直径 (加版厚) |
Printing Roller Dia. (Plus Printing Plate Thickness) |
300mm | 408mm | 480mm |
4.Our Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
5.FAQ
Q:Are you the trader or manufacturer?
A:We are the manufacturer with export qualification
Q:Do you make oem?
A:Yes.here can do
Q:Where are your factory located in?
A:We are in dongguang town,cangzhou city,hebei,china
Q:What is your business process?
A:Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.
Our products are sold all over the world, you can rest assured.
