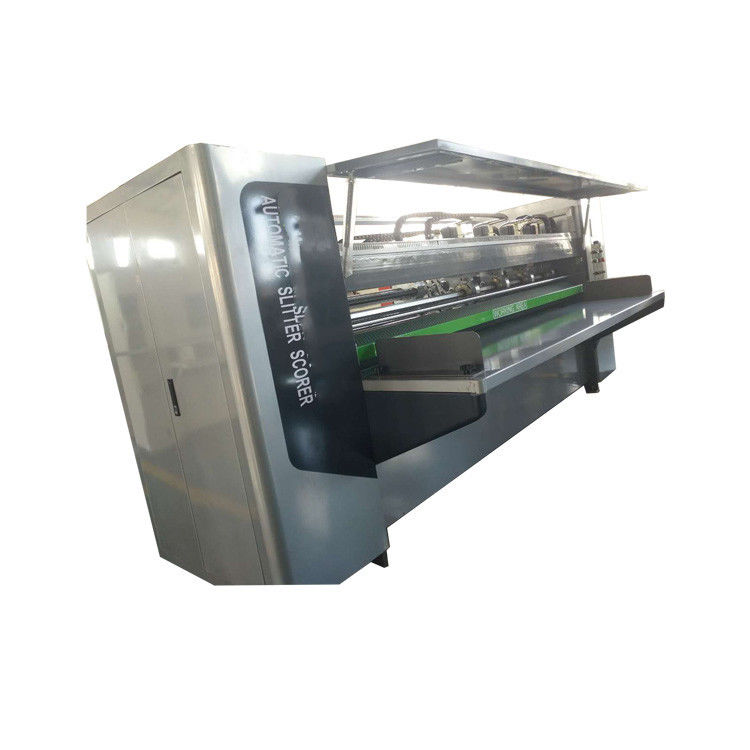

Electric Adjust Thin Blade Slitter Scorer Machine 5 Knives 8 Crease
Product Details
Electric Adjust Thin Blade Slitter Scorer Machine 5 Knives 8 Crease
1.Thin Blade Slitter Scorer Machine Description:
The thin-knife cutting and creasing machine adopts thin-knife cutting, and the blade is sharp after being ground by the grinding wheel, so the edge of the cutting board is smooth without burrs, and the pressure structure of the corrugated cardboard will not be damaged too much.
The paper is first fed by the rubber shaft, then cut, then pulled by the rubber shaft, and finally pressed into shape. The alloy paper cutting knife is used, and the timing belt for driving the blade can be quickly replaced when changing the blade.
2.Thin Blade Slitter Scorer Machine Specifications:
| Machine maximum cutting board width | 2300mm |
| Maximum mechanical speed | 120m/min |
| Number of paper cutters | 4 |
| Number of wire pressing wheels | 6 |
| Minimum slitting width | 130mm |
| Minimum wire width | 55mm |
| Pressure line clearance | 0-12mm |
| Dividing paper thin blade outer diameter | 200mm |
| Divide paper thin blade thickness | 1.3mm |
| Power of motor | 4.0kw |
| Pneumatic pressure | ＜0.4mpa |
| Machine dimensions | 3100×1300×1450mm |
3.Thin Blade Slitter Scorer Machine Feature Advantage:
The humanized design of the whole machine operation can be set, corrected, executed, and functioned in a short time, and displayed with accurate data. All drive rollers are made of high-quality steel, hard chrome-plated, and surface ground. The transmission gear is made of high-quality alloy steel, which is ground by heat treatment.
When the main engine is working normally, the clutch function of the unit is self-locked to avoid machine or personnel injury caused by incorrect operation. Automatic zeroing device to ensure that the unit has a uniform adjustment basis and reduce cardboard waste. Applied to 3/5/7 layer corrugated and E corrugated cardboard.
4.Our Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery. We have rich experience and expertise in the field of corrugated machinery, and we can provide customized solutions for different customers’ needs. We are committed to delivering high quality products and services with competitive prices and timely delivery.
5.After Sales Service
Free Shipping Replacement Spare You just need to pay the freight
One To One Video Teaching We Provide Operation & Maintenance cd
-11 years experience
-Export to more than 150 countries
-Professional international sales more than 30 persons
-Professional sale team
technical team and after-sales service team
Our KSPACK Group :
Hebei Jinguang Packing Machine Co.,Ltd
Cangzhou Kingsun IMP and EXP Co.,Ltd
Dongguang BaiYing Carton Machinery Co.,Ltd
-
