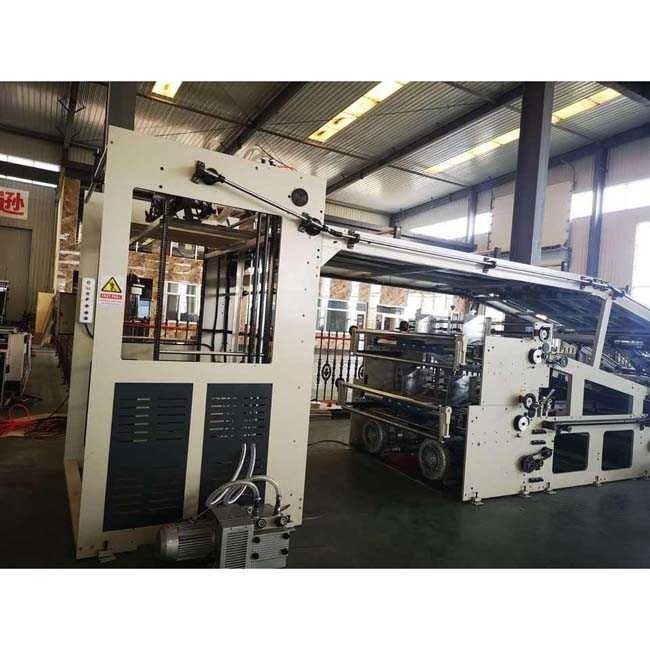

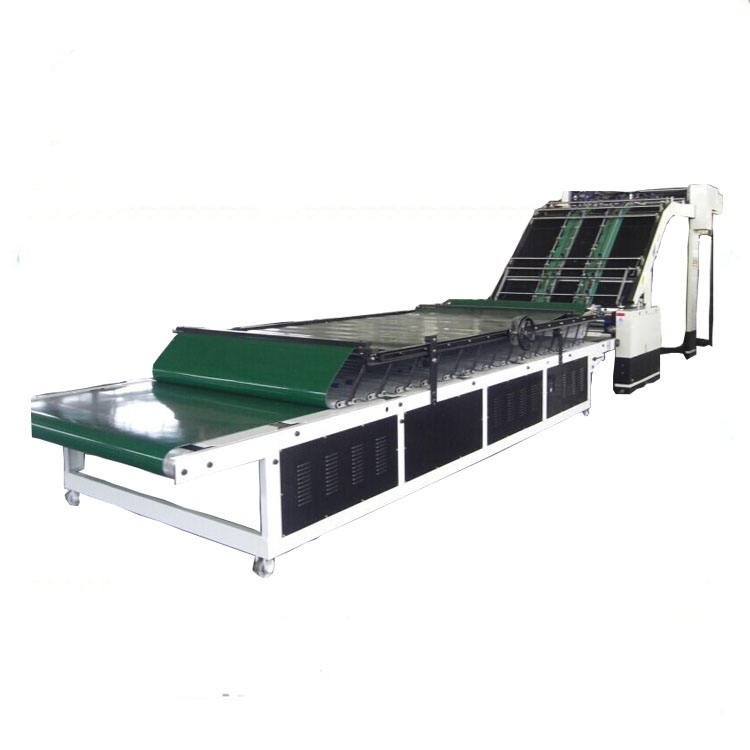

2 Ply Corrugated Semi Automatic Flute Laminator Machine 1300x1200mm
1 Flute Laminator Machine Description:
Laminating machine, also known as laminating machine or high-speed laminating machine, is used for laminating and bonding pre-printed color printed surface paper and corrugated cardboard. It is an important supporting equipment for pre-printed carton production.
Quality plays a role. With the continuous development of social economy, there are more and more applications of pre-printed cartons, the structure of the laminating machine is becoming more and more diversified and automated, and the manufacturing technology and performance are becoming more and more mature.
Due to the different structure and performance of the laminating machine, the laminating and bonding effects of corrugated cardboard and facial paper are also quite different.
Therefore, the correct selection and use of high-speed laminating machines is an important part of improving the efficiency and quality of carton production.
2 Flute Laminator Machine Applications:
3 Specifications:
Model
|
KS-1300F | KS-1450F | KS-1600F | ||
Max paper size
|
1300x1200mm | 1450x1200mm | 1600x1200mm | ||
Min paper size
|
600x600mm | ||||
Face paper thickness
|
150-600gsm | ||||
Bottom paper
|
A/B/C/E/F/G 2ply flute | ||||
Precision
|
1.5mm | ||||
Max Speed
|
6000pcs/h | ||||
Height of face paper pile
|
1600mm | ||||
Face paper table capacity
|
1500kg | ||||
Height of bottom 2ply pile
|
400mm | ||||
Total power
|
20kw | ||||
Dimension
|
15x2.2x2.6m | 15x2.4x2.6m | 15x2.5x2.6m | ||
Machine weight
|
5000kg | 5500kg | 6000kg |
