1)Feeding department - lead edge feeder
1.The machine applies advanced type vacuum suction auxiliary lead edge feeding system.
2. High pressure centrifugal fan auxiliary feeding, ensuring the smooth feeding
of the bending cardboard. The blowing can be adjusted according to the different size of the cardboard in each section. Ensuring the biggest the vacuum suction , guarantee the stable feeding. Function of the supper thin feeding, ensuring the 2mm cardboard can feeding better.
3. Front bar is adjusted manually . Left bar and Right bar is electrically adjusted By screw. Right bar own the function of pneumatic flapping. Adjusting of the back bar ( left ,right,up and down) is manual, convenient , fast and precise.

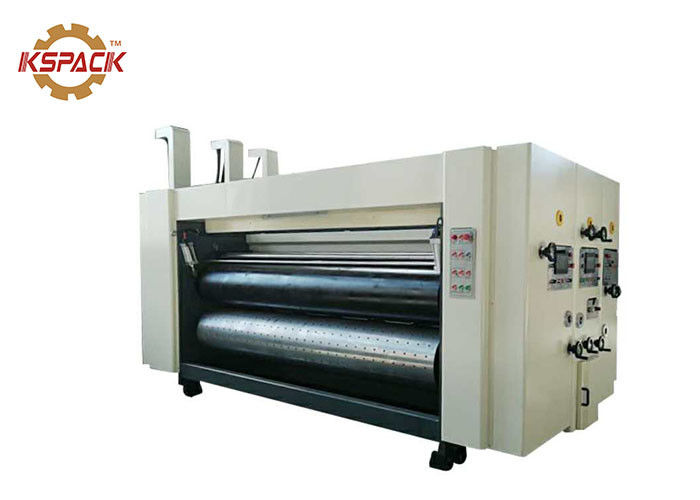

2)Printing department
1the printing roller diameter : 300MM
2,Adopt digit number electrical phase controller ,can 360degree adjust ,save the adjust time ,increase adjust accurate
3,Auto rise the ink plate ,the inker turning to prevent ink dried.
4,Adopt electrically separation ,pneumatic locking
5.Ink supplied by pneumatic diaphragm pump
6.Main transmission gear made by 45# steel ,it adopts helical gear driving and processed by high frequency quenching.Auto sprinkle lubricating system ensures the machine precise and use life
7all the roller must be chrome –plating in order to increase the hardness
8.the auto count function
9. Have alarm system ,when machine start work there have alarm ,guarantee the work safe
3)Slotter unit
1.Four slotter knives , open the slot ,creasing the line and cut the corner
2.The knives use the good material ,long use life
3.Our slot knives can be same time adjust
4.The phase can be adjust by electrical 360oC
Feed roller all be chrome plate
5.High standard for slotting part - Creasing wheel and slotting blade can adjust at the same time
4)Die cutter unit
1,Durable Rubber cushion
2,Double-worm abrasive belt cushion correction facility
3,Cushion axial floating automatically to improve the utilization rate of cushion. The range of floating is 0-20mm (from middle to left or right )
4,Speed difference self-compensating function
5,Die cutting phase is adjusted by electric
6.Die cutter part with slotter knife attachment
| Model | YSF-S 900 | YSF-S 1200 | YSF-S1450 | YSF-S1650 |
| Diameter of roller | 300MM | 400MM | 480mm | 530MM |
| The max speed | 60PCS | 60PCS | 60pcs/min | |
| The max feeding size | 900X(2200-2800) | 1200X(2200-2800) | 1450x(2200-2800)mm | 1650X(2200-2800) |
| Slot Min feeding size | 230X600MM | 330X600MM | 350X600mm | 380X600MM |
| Effective printing size | 900X(2000-2600) | 1200X(2000-2600) | 1450x(2000-2600)(mm | 1650X(2000-2600) |
| The effective thickness | 3.5.7ply (2-12mm) | 3.5.7ply (2-12mm) | 3.5.7ply (2-12mm) | 3.5.7ply (2-12mm) |
| Printing plate thickness | 6±0.1 | 6±0.1 | 6±0.1 | 6±0.1 |
| The max depth of slot | 250 | 314 | 370 | 416 |
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery. Our products are designed and manufactured with advanced technology and high quality materials. They can meet the requirements of high speed, high precision and high efficiency in the production of corrugated products. We have a global sales network and a professional service team to provide customers with satisfactory solutions.
Our products are sold all over the world, you can rest assured.
