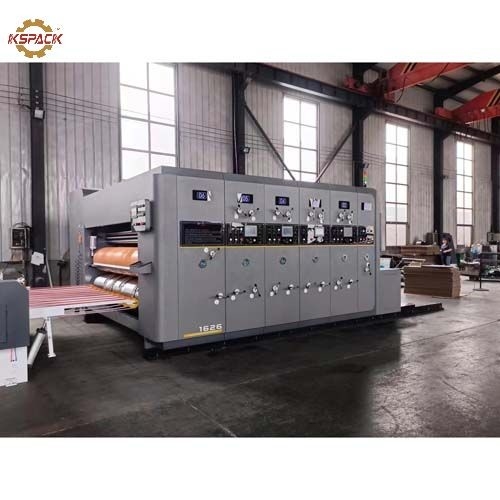

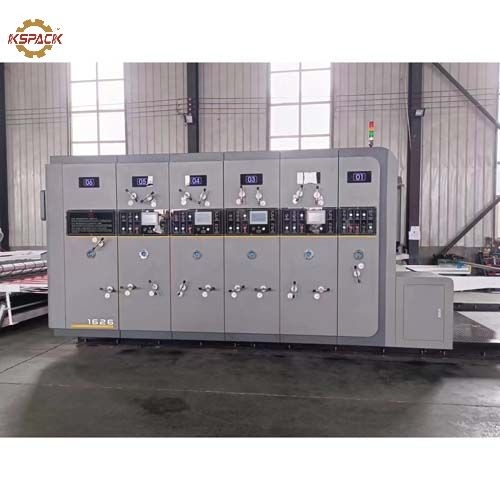

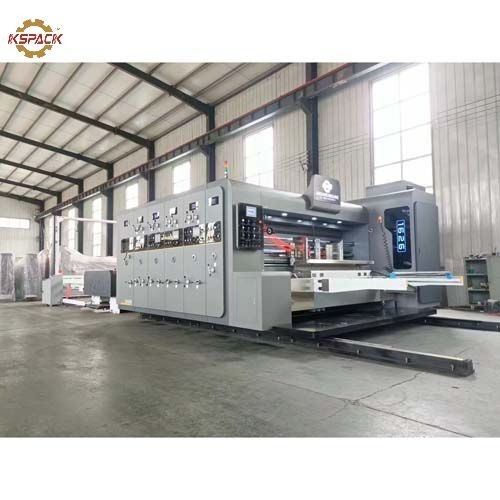

Independent feeding 4 Colors Corrugated Box Printing Machine Stacker

Independent feeding 4 Colors Corrugated Box Printing Machine Stacker

High Speed 4 Colors Corrugated Box Printing Machine Whith Stacker

Corrugated Box Printing Machine Description

Feeding Department

1, machine clutch
(1)The electric control machine is equipped with an alarm bell, and the bell is continuously ringed during the journey to ensure the safety of the workers, pneumatic interlocking device.
(2)The main motor adopts frequency conversion motor, frequency conversion control, energy saving, stable start, and motor start protection device.
2, leading edge roller feeding system
(1), suction auxiliary paper feeding, - according to different bending conditions of the paperboard, the air volume can be adjusted to ensure smooth paper feeding.
(2), the paper is lifted and the paper is driven by the cylinder, which is quick and labor-saving.
(3)Adopt the leading edge roller feeding system.
(4), the side baffle and the rear baffle position are electrically adjusted; the front baffle gap is manually adjusted.
(5)Separate sheet feeding device (Continuous or sheet feeding can be selected as needed). (6), paper feed counter, set and display the production quantity.
3, dust removal device (optional)
(1) The paper brush dust removal device can remove impurities from the printing surface of the paperboard in a large amount and improve the printing quality.
4, paper feed roller
(1) The outer diameter of the upper roller is φ100 mm.
2), high quality seamless steel, wrapped with wear-resistant rubber, and balance correction. (3), the lower roller φ124mm embossed hard chrome plated, and balance correction.
(4), the paper feed roller clearance dial is manually adjusted, the adjustment range is 0-12mm. 5, automatic zero device
(1)The paper feed unit, the printing unit, and the slotted unit are electrically reset to zero.
(2), the general carton uses the automatic zeroing device, the test prints two can be adjusted to the correct position, reducing paperboard waste.
Host control; the motor image represents the state of the main motor switch, the current speed is displayed above,
The fixed speed is the set speed. When the host is stopped, fill in the number and open the host. The machine runs according to the set speed. There are two kinds of [feeding mode] [continuous], click to send
Paper mode for conversion, count control; for production paper count, real count = setting Alarm after quantity
Baffle control; left and right, up and down manual adjustment

Auto Stacker part :

1, the paper arm can be manuallu y or automatically operated, with insurance institutions to prevent the paper arm suddenly fall, to ensure the safety of operators.
2, bed lift strong chain driven.
3, stack height 1600mm.
4, bed with the cardboard heap height automatically adjust the tilt height, lift motor, with brake function, bed to keep a fixed position will not decline.
5, then appropriate to widen the cardboard.

Auto vibrator part :
This machine is match equipment with middle and high speed rotary die cutter machine,it structure easy ,operation convenient , waster paper clearance effect well , economic, during the course of the working ,reduced the worker force , that is ideal equipment of the carton industry.
This machine include the paper feed part , collect waste paper part ,and walk lock system
paper feed part : that is transmit roller with PU round belt made of the paper feeding , during the paper feeding, there have two vibration rod , let the board vibrate on the belt , so get the result of clear the waste paper .
Waste paper collect part : this part is the let the waste paper feed out belt ,then use other belt feed the paper to side of the machine , finished the collect waste and feed waste paper .
Walk locking part : there include four guide wheel ,let the machine depart and lock with the rotary die cutter , operate easy , lock part have pneumatic and lock cylinder ,let it with rotary die cutter fix.

Corrugated Box Printing Machine Specifications
