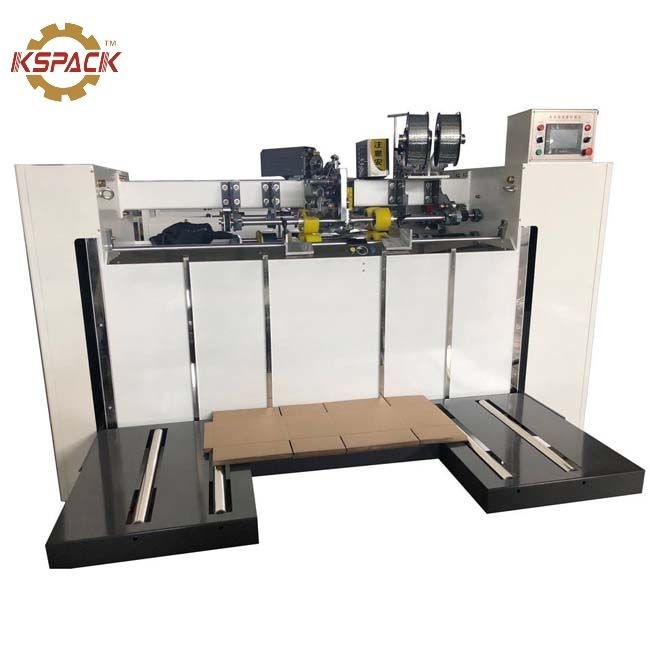

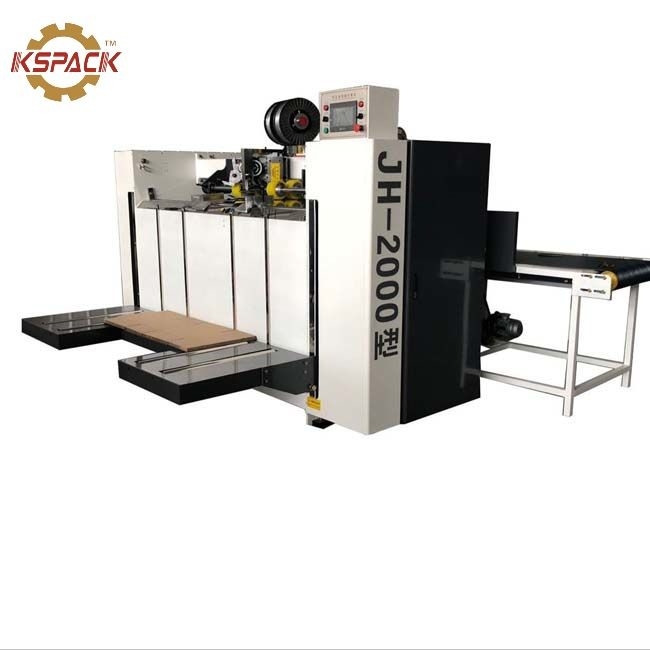

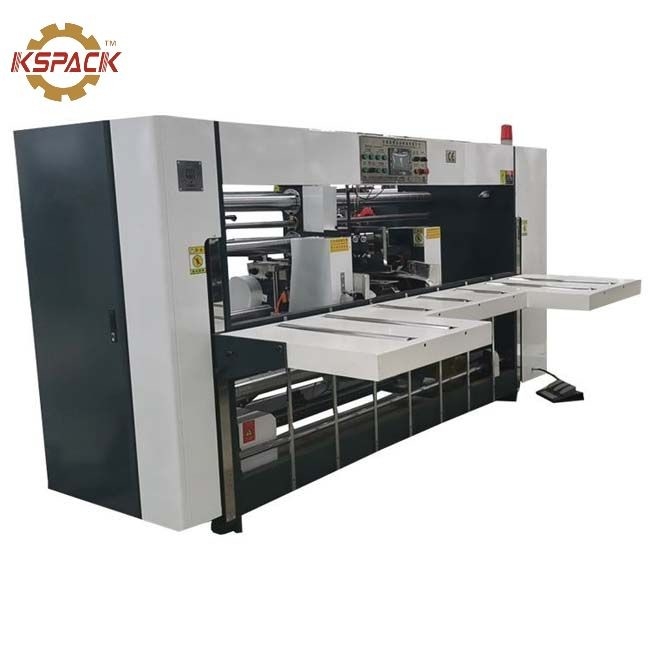

Manual Feeding Carton Box Stitching Machine Computer Controlled
Use and Characteristics:
1. It can nail single nail double nail, strengthen nail completed in one-time, can be suitable for different kinds of customer
requirement of nail.
2. It can be changed size quickly in one time, can be operated easily and not had to experience.
3. Paper feeding section can automatic counting, send after the bundle into the bundle.
4. It is man-machine interface control for convenient operation.
5. Back-automatic counting. The finished products done can be sent to the end of conveyor by setting the number(1-99)
6. Semi-finished products nailing to the finished products displayed only need two operators. This can operate simply and reduce wages.
Carton Box Stitching Machine
1. Schneider france original import four servo motor drive ,high precise with few mechnical driving part ,reduce the machine damage
2 . wenlun touch screen ooperation the parameter ( nail distance, nail unmber,nail types,tial gate ) change convinently
3 The whole machine control system use the omron plc control system
4..back electrical baffle use the stepper motor driven ,size accurate ,size changing is more convinent
5.The contactor in the control box adopt simense brand
5 .Display and circuit breaker adopt schneider ,pohto electric switch and proximity switch adopt omron branch .
6. Bottom mould and blade adopt japan tungsten steel
7. Whole stiching head adopt special steel to make , computer digital processed
8 Machine have single nail / ,double nail//, strenght nail // / / / //
9 Change the size only need one minute to finish,same as changing the stiching distance
10.Can stich box with lid or box no lid ( when customer need the stiching no lid box must special order )
11.With automatic counting function in the back part ,the finished carton can be delivery to the end by pile ( as the setting number 1-99) ,it is convinnet to strap
12 mechanic speed 500nail/min.
13. stiching distance 30-120mm, can be adjustabel .
14. press paper wheel gap 8 wheel adjust by electric
15.machine work table max high 900mm
16.The macine size 2.8x2.7x2m
17.Machine weight 2tons
18.Machine can store 600order
19.. machine electrical separate , Isolated Transformer
20.Automatic wire feed system ,no wire alarm, 20kg big dics wire ,can save time
We believe that our products have the potential to revolutionize Industry, and we are confident that they will play a key role in the future of the industry. With our commitment to quality and innovation, we are confident that My Company will continue to lead the way in Industry.
Thank you for your time and consideration. We look forward to the opportunity to work with you and to help drive your business forward.
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery. We have rich experience and expertise in the field of corrugated machinery, and we can provide customized solutions for different customers’ needs. We are committed to delivering high quality products and services with competitive prices and timely delivery.
| Q | A |
| Are you the trader or manufacturer? | We are the manufacturer with export qualification |
| Do you make oem? | Yes.here can do |
| 5.where are your factory located in? | We are in dongguang town,cangzhou city,hebei,china |
| What is your business process? | Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine. |
Our products are sold all over the world, you can rest assured.
