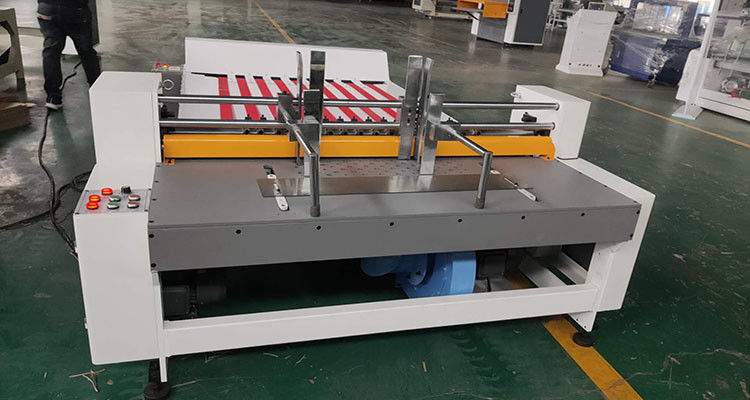

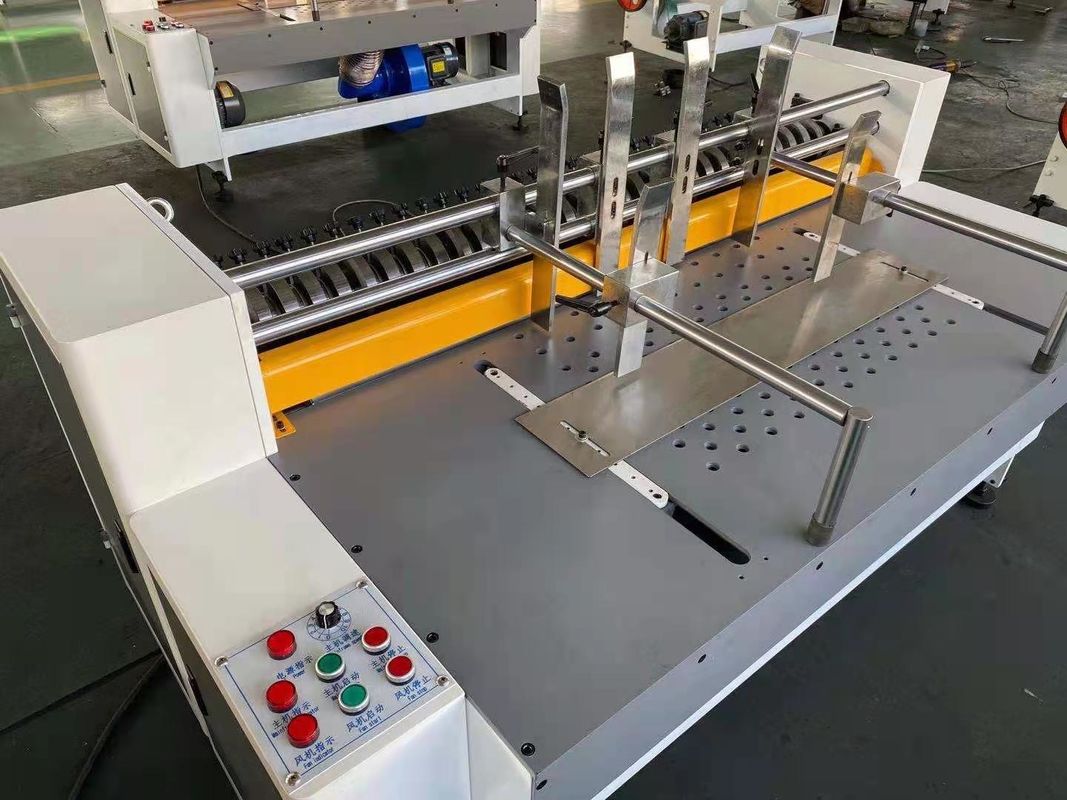

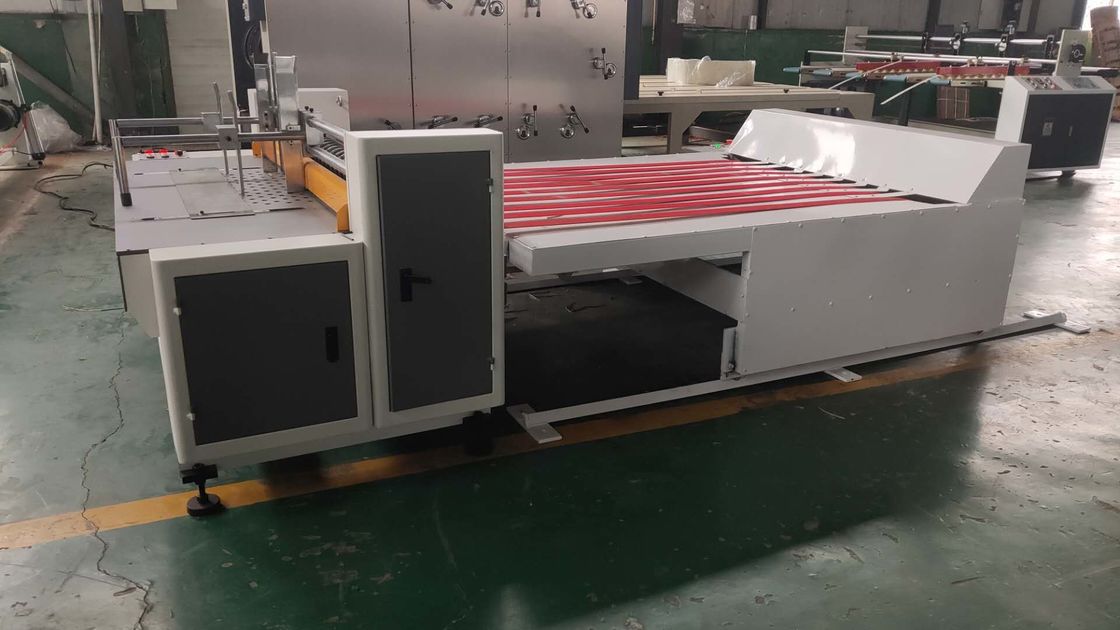

120 Pieces / Min Partition Slotter Machine With Auto Receive Table
Slotter partition with auto receiving table slotting partition machine
Product Description
The automatic cutting cardboard machine is one of GBJ corrugated cardboard machine series produced by our factory, it integrates advantages of foreign and domestic similar products having advanced technology from former equipment. The working position adopts the method that turning arm structure drives slot pushing cardboard moving in front and behind. The machine has advantages in new and original outward appearance, clean edges with no flaking signs, stable quality and long life-span, the machine is well received by customers after used for a long time, it is advanced equipment for your needing.
All standard size we can do is 1200*300mm,1400*300mm,1000*400mm,1200*400,1400*400,1200*600,1400*600
Partition slotter machine parameters as follows : (take 1000*300mm for example)
| Model | 1000 |
| Machine max speed |
120 pieces/min |
| Max feeding size (L×W) | 1000mm×300mm |
| Min feeding size (L×W) | 100mm×75mm |
| Min slotting distance | 45 mm |
| Slotting number | 9 groups of slotting knives |
| Slotting width |
3.5mm 5mm 7mm (Choose one according to the thickness of paperboard) |
| Dimension (Length*Width*Height) | 1500mm×1450mm×1300mm |
Warranty and service
1. This machine has one year warranty for whole structure , not including the knives , rubber roller etc. easy-wear parts . In warranty period , except the easy-wear parts and the damage which is caused by wrong operation , if there is the problem with electric elements , gears , bearing etc. structure parts , we will provide the replaced parts for free .
2. Beyond the warranty period, if there is parts damaged or broken, we will get paid to provide the replaced part.
3. For all the operation , maintenance etc. problems in production , our company will provide the technical solution and help to our customer for free .
Our products are sold all over the world, you can rest assured.
