3 5 7 Corrugated Board Carton Box Manufacturing Plant 80m/Min

3 5 7 Corrugated Board Carton Box Manufacturing Plant 80m/Min

  • High Light

    Corrugated Board Production Line 80m/min


    Carton Box Manufacturing Plant


    330KW Carton Box Manufacturing Plant

  • Condition
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Voltage
  • Warranty
    1 Year
  • Product Type
    Paper Plate Machine
  • Weight
  • Dimension(l*w*h)
  • Processing Type
    Embossing Machine
  • Certification
  • Power(w)
  • Production Capacity
  • Name
    Corrugated Board Production Line
  • Place of Origin
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
    1 SET
  • Price
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1 set per 30 days

3 5 7 Corrugated Board Carton Box Manufacturing Plant 80m/Min

3 5 7 Corrugated Board Production Line Carton Box Manufacturing Plant

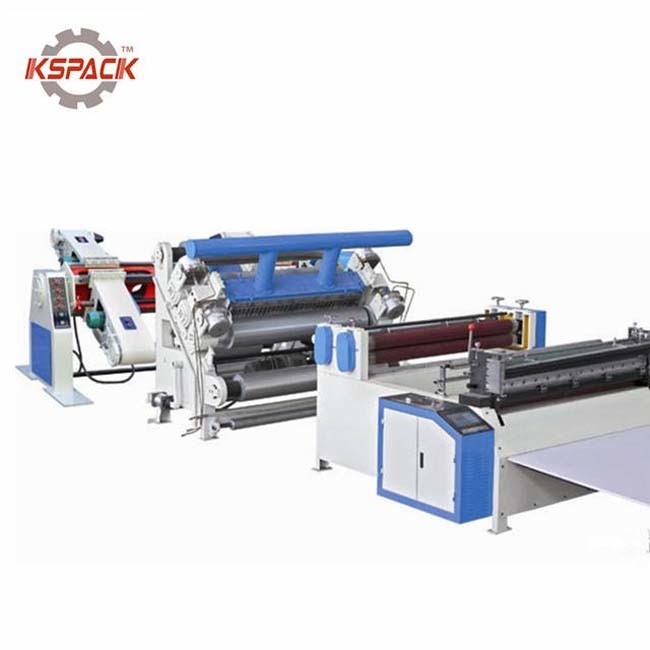

Single facer groups include : mill roll stand , 2 ply single facer , cutter, single tile paper machine.


1. Mill Roll Stand

Structural features:

symmetrical structure can be installed at the same time two bundles of paper tube, can be used for non-stop machine to change the paper electric o clamping, release, moving on the left and right brake adjustment using disc plate system. With two-stage automatic expansion of the paper clip, clamp head size 3 inch.

1. Paper stand active model: Mechanical electrical

2. Clamp paper scope : max 1400mm , min 100mm

3. Clamp diameter : max 1400mm

4. Single side max load weight : 1500kgs

5. Power : 380 volt ,50hz

6. Turn over motor power : 1.5kw /set clamp motor power : 0.75kw 4 set

7. Manual brake model ( option pneumatic brake model )

8. Electric brand : DELIXI CHIT

9. Machine weight : 2.3T

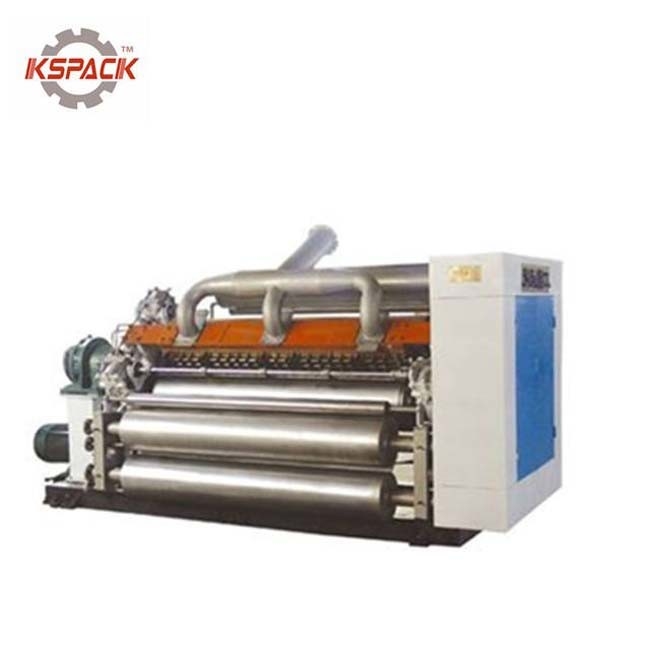

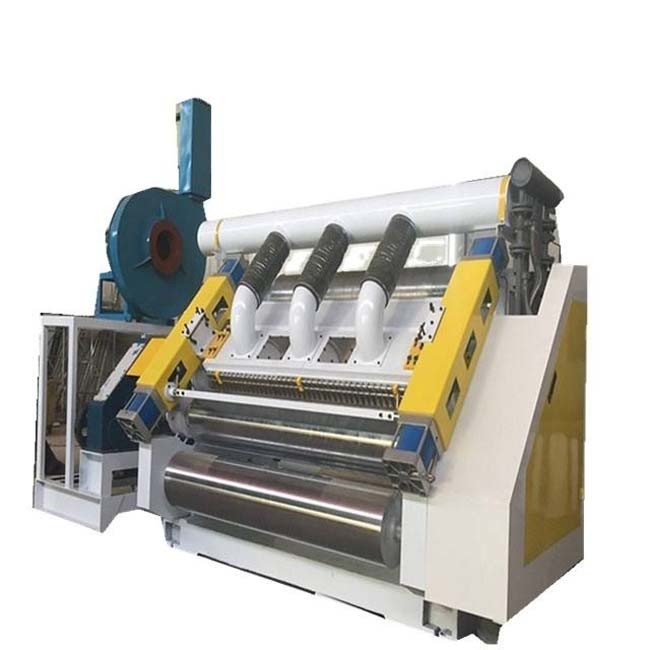

2. 2 Ply Single Facer


1. Cover vacuum suction.

2. Corrugating roll is made of high quality alloy steel48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.

3. No gear transmission.

4. Glue roll is lifted and lowered pneumatically.

5. Independent glue clean device and electric glue-separate board to control the width of glue.

6. Manually regulate or electrically regulate the display device.

7. Lubricated by high temperature lubricate grease.

8. Surface of all dancing rolls and preheating rolls is grinded and chrome-plated.

9. Pressure roll is medium- frequency quenched and chrome-plated.

10. Width 1200mm~2000mm.

11. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.


Working Width 1200mm
Heating method electrical heating
Design speed 80m/min
Economical speed 45-60 m/min
Compress-air pressure 0.4-0.9MPa
Flute type Standard flute UVE Flute
Standard spec. E
For other type and model, we can produce as customer’s requirement.
Corrugated roll diameter (mm) 280
Wall Thickness (mm) 130
