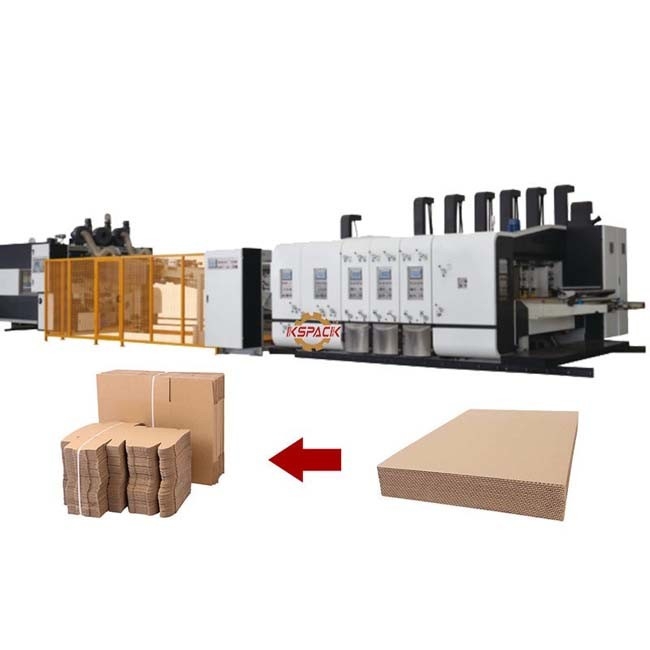

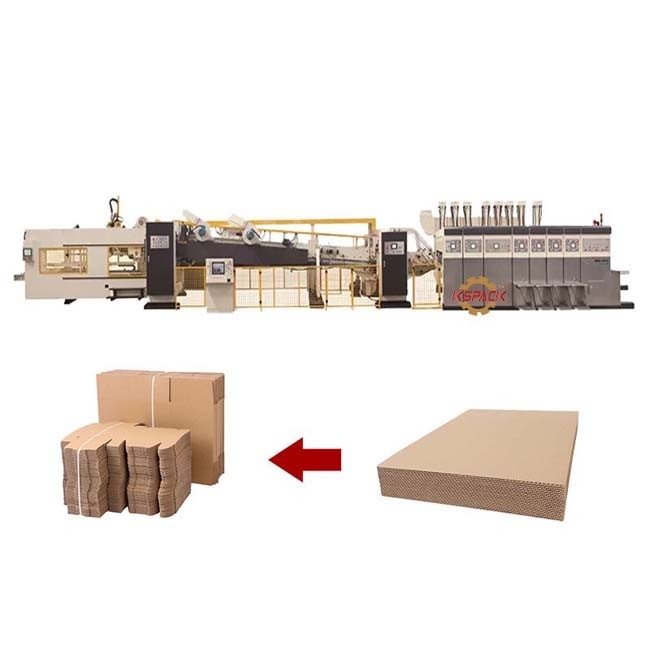

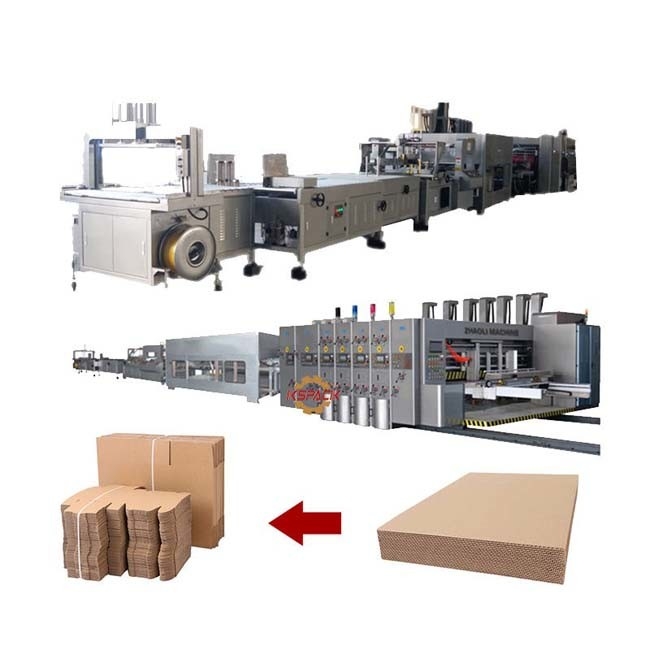

Automatic Corrugated Box Printing Machine Folder Gluer Product Line

Automatic Corrugated Box Printing Machine Folder Gluer Product Line

Carton box machine inline , is the most fully automatic type machine for corrugated carton box making . PLC control , speed fast and operation is easy .
Raw material is corrugated paperboard , finished product is ready carton box bundling well .
Carton box machine inline working procedure as follows :
Put raw material corrugated paperboard , then printing colors on corrugated paperboard , then slotting ,the die cutting , then fold glue , at last auto stacker and auto bundling with PP belt .

Lead edge auto feeder part : vaccum absorption
1) electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers.
2)drive shaft with friction clutch, to avoid misuse and damage to the machine.
3) pneumatic interlock device.
4)The host motor starts the protection device. (The machine is not locked, the host can not start running)

Printing unit - 1 color , 2 color , 3 color , 4 color
1)roller steel surface grinding, repression reticulate, hard chrome Plating .
2)balance correction, smooth operation.
3)mesh number is 180,200,220,250 lines / inch selection. ØOption ceramic roller 300-500line/inch
4) Ceramic roller and doctor blade optional
5)Water ink recycle system

Die cutter and slotter part
1) Make standard box by slotting unit

2) Make special box by die cutting unit (the whole shape must be standard shape box , as fold glue bundling in same line )

3) Die cutting mat use high quality durable brand

4) Carton box size is adjustable

Folding part
1.The paper folding in the front adopts precise shaping and guiding wheel arranging system for conveying, while the paper folding in the back adopts adsorption belt for conveying. This way of conveying is stable for cardboard walking, without deviation.
2.High strength bridge arm, precision traverse guide system.

Tidying and auto counter- ejector part

1)Lengthen the time ot cardboard correction , make the gluing stable

2)Auto stacker- make preparation for bundling part

Auto bundling part

1)Working speed:10-18 packs/min.

2)Working temperature:Relative humidity ≤ 90%,Temperature 0-40℃,Noise≤75dB(A); 3)Belt width 5mm.
