Automatic Cardboard Partition Slotter Machine For Corrugated
Product Details
PLC Partition Slotter Machine
,Partition Slotter Machine For Corrugated
,Automatic Cardboard Partition Slotter Machine

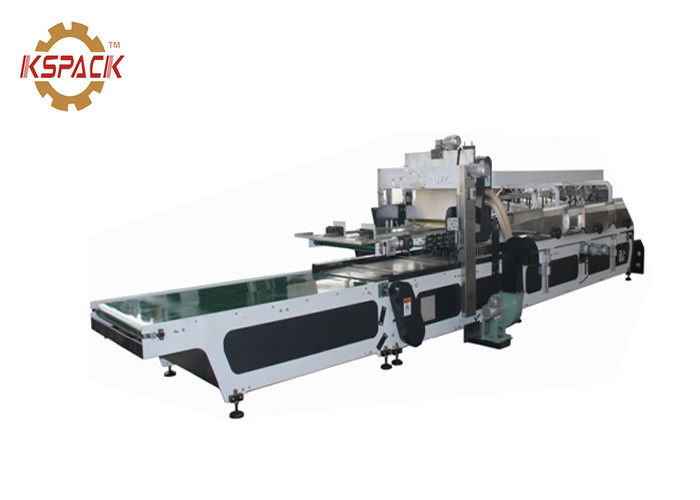

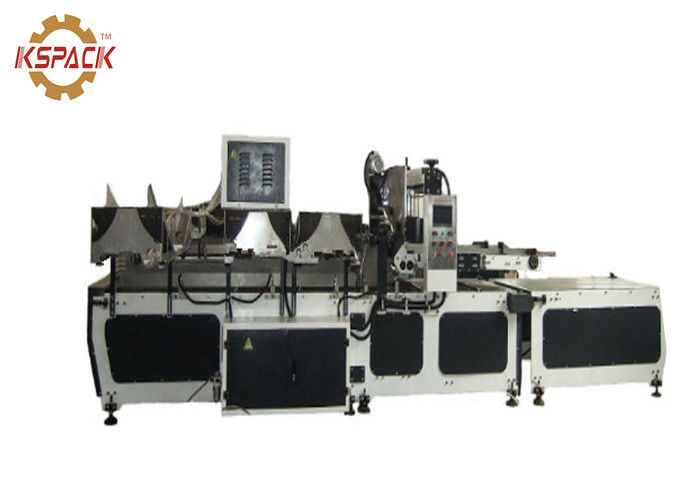

Automatic Cardboard Partition Slotter Machine For Corrugated
Semi-automatic slotting machine is a new type of slotting equipment produced by our factory after absorbing the advantages of domestic and foreign equipment and optimizing and improving. The equipment adopts high-quality raw materials and is processed by advanced manufacturing technology, and its performance has reached the domestic advanced level. It is an ideal equipment for the packaging of paper products such as fruits and vegetables, glass products, ceramics, plastics, etc.
Structure Character
- Lengthways and horizontal sheets do decussation inserting.
- Automatic inserting each kinds clapboard and block.
- Instead of manual, two sets per time.
|
model |
- |
BCGJ900 |
BCGJ1000 |
|
Horizontal insertion width |
mm |
120~900 |
120~1000 |
|
Longitudinal feed length |
mm |
100 ~1000 |
100 ~1400 |
|
grid height |
mm |
85-300 |
85-300 |
|
Vertical grid spacing |
mm |
20~1100 |
20~1100 |
|
Horizontal grid spacing |
mm |
45-800 |
45-800 |
|
Number of horizontal grids |
indivual |
1-50 |
1-30 |
|
Number of vertical grids |
indivual |
1-6 |
1-6 |
|
Cardboard socket width |
mm |
＞Cardboard thickness |
＞Cardboard thickness |
|
Cardboard thickness |
mm |
1.5~8mm |
1.5~8mm |
|
Dimension(L x W x H m include sheet delivery ) |
m |
6.5*2.0*2.0 |
6.5*2.0*2.0 |
|
otal power |
kw |
4.8 |
4.8 |
Structure and character for corrugated paperboard partition assembly machine
1. Lengthways and horizonrtal sheets do decussation inserting.
2. Automatic inserting each kinds clapboard and block.
3. Double-position output type , double efficacy.
4. Penumatic system and electric system to make sure the advancement of device control
5. Supply enough gas with compressed air accumulartor , stable pressure .Eacg steam equipment get gas from the main pipe, independent control , no mutual influence.
6. PLC man-machine interface , easy to operate.
