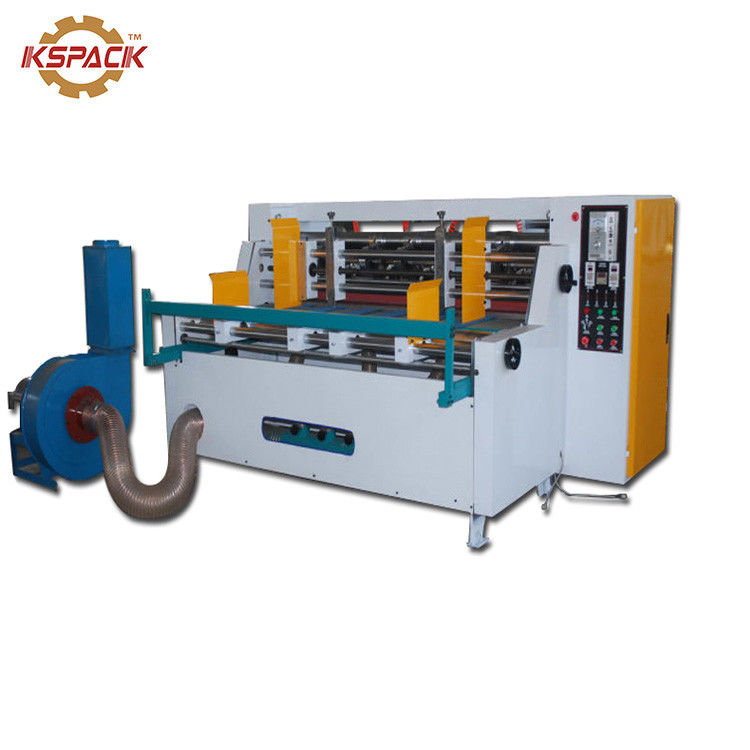

Paperboard Thin Blade Slitter Scorer Machine Corrugated Box Making

Paperboard Thin Blade Slitter Scorer Machine Corrugated Box Making

  • Highlight

    Paperboard Thin Blade Slitter Scorer Machine

    ,

    Electric Thin Blade Slitter Scorer Machine

  • Voltage
    380V
  • Automatic Grade
    Automatic
  • Condition
    New
  • Driven Type
    Electric
  • Packaging Type
    Cartons
  • Packaging Material
    Plastic
  • Weight
    1000kg
  • Dimension(l*w*h)
    L1340*W1580*H1950mm
  • Type
    Packaging Line
  • Application
    Machinery & Hardware
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Name
    Thin Blade Slitter Scorer Machine
  • Place of Origin
    CHINA
  • Brand Name
    KSPACK
  • Certification
    CE ISO
  • Model Number
    KSJG
  • Minimum Order Quantity
    1 SET
  • Price
    Negotiate
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1 set per 30 days

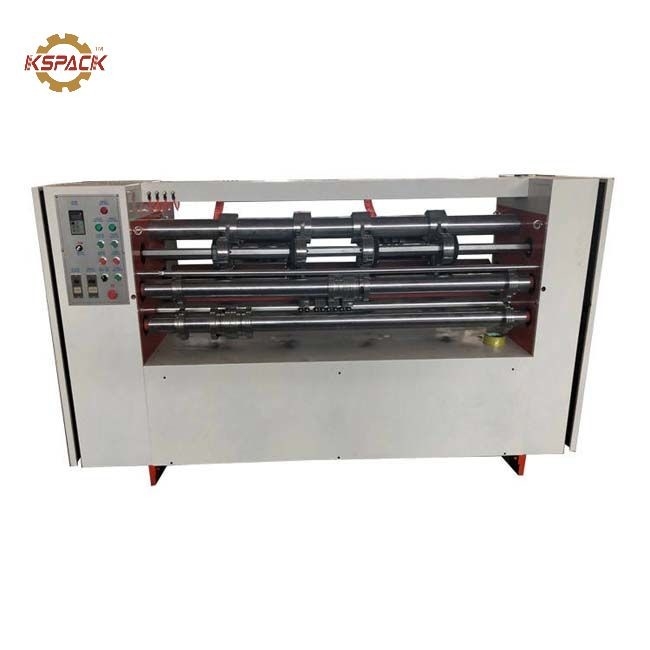

Paperboard Thin Blade Slitter Scorer Machine Corrugated Box Making

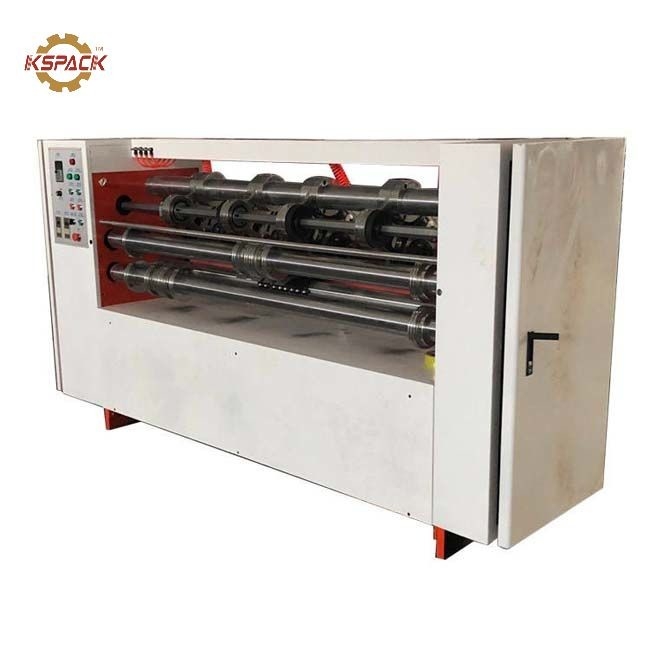

Paperboard Thin Blade Slitter Scorer Machine Corrugated Box Making



Power

8kw

Productivity

140m/min

Size

4600*2420*1900mm

Weight

1.6t

Cutting and precision

+-0.1mm

The minimum cutting width

20mm

The maximum cutting specifications

1700*1500mm

Min slitting specifications

300*200mm

Board thickness range

1.5-5mm



 This machine adopts the leading edge paper feeding part, photoelectric tracking stacking and counting;
The use of traditional semicircular knives to add special ingredients, the separation accuracy and cleanliness are comparable to the effect of thin knives, which is a major technological innovation in the packaging industry.
Equipped with a gantry receiving board, the cardboard rules are superimposed, which is convenient for receiving materials and saves a lot of labor.



Function and Features

1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.

2. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.

3. 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.

4. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.

5.Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.

6.Make all shafts, rollers and wallboard thicker to 38mm for machine size bigger than 3m.

7.All the chain wheels material is #45 steel.

8.Main motor is 7.5kw excitation motor for machine size bigger than 3m.

9. Blade & scorer both move by electric is optional for your choosing.
