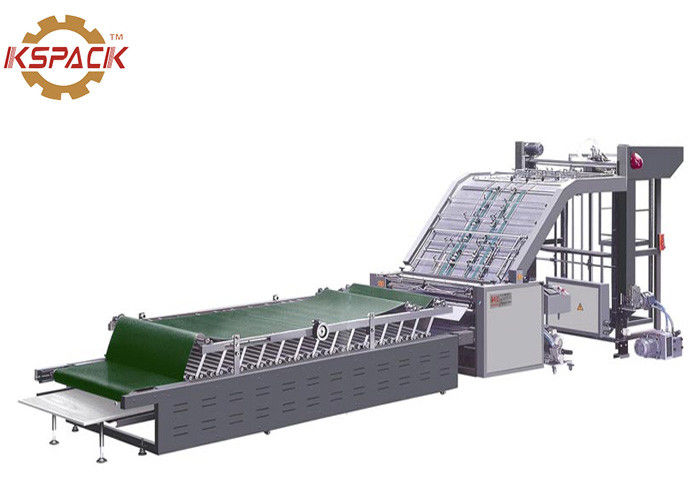

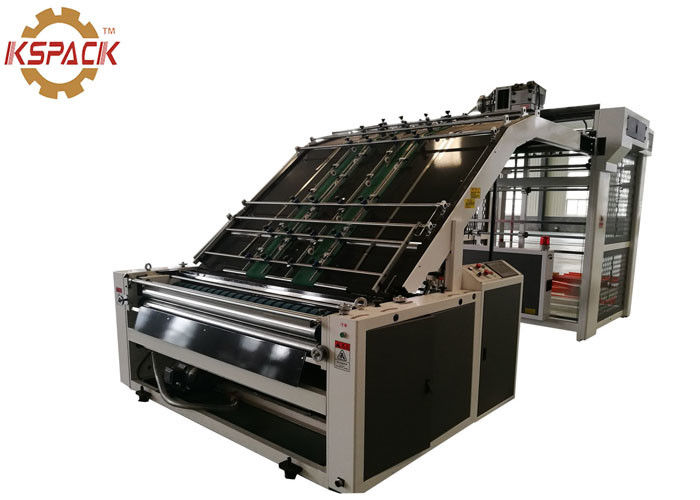

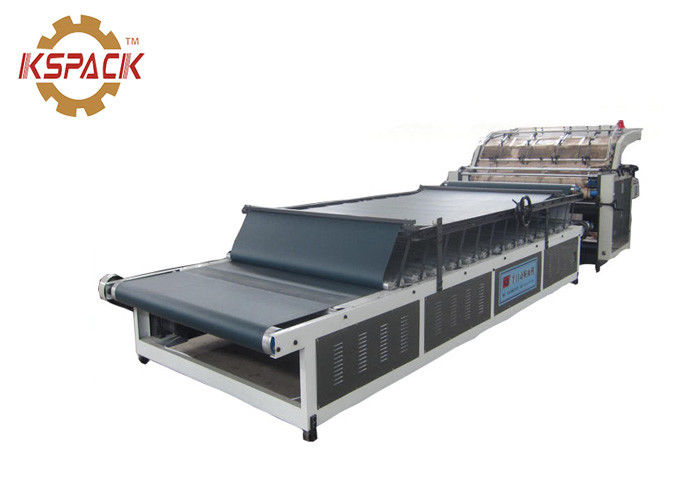

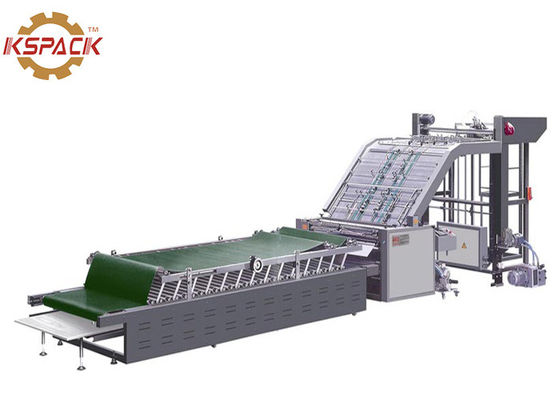

FM Series Board Laminating Machine For Corrugated Sheets Hard Board And Art Paper
Product Details
ISO Board Laminating Machine
,380V Board Laminating Machine
,Corrugated Sheets Board Laminating Machine
FM Series Board Laminating Machine For Corrugated Sheets, Hard Board And Art Paper
Corrugated Cardboard Automatic Flute Laminator Machine High Speed
1. Suction floating-feed paper, running balance is accurate. Photoelectric control to avoid single - sheet walking. The machine adopts forward push position: the error range is within 1.0mm, and the fitting error range of corrugated paper is within 1.5mm.The 20 thick parts of the wall panels are 40 thic
2. The machine is easy to clean by lifting bridge board. Intermittent water cycle cleaning system, easy to clean
3. The top paper can be stacked up to 1.5 meters at a time. The paper pile rises automatically during the paper feeding process, making paper feeding easier and more efficient.
4. Elastic front position, the backing paper does not lead, and the backing paper can be adjusted before and after laminating
5. Suitable for over 350 grams of low card and paperboard, paperboard and A/B/C/E/F and double corrugated board and corrugated and corrugated
6. Intelligent control of flattening, up to power saving and control paper folding distance
7. Adopt high precision glue blocking device to save glue.
The machine auto feeding corrugated paper ,manual feeding above paper ,above paper can adjust front and behind,never go ahead,match with the adjust the speed ,and frequency conversion.and plc three kinds of choose by you. FM series board laminating machine is used to paste the color-printing surface paper together with the bottom paper (cardboard or corrugated sheet) accurately Suitable for lamination of corrugated cardboard to paperboard, and paperboard to paperboard. Automatic feeding of bottom sheet and normal front feeding of top sheet With flexible front gauge positioning to control the laminating precision.Stepless timing, novelty and beauty,easy to clean ,easy operation and high laminating precision. New equipment for producing the high quality cardboard, makes the cardboard more striking, nice and high intensity. Used widely for packing food, wine bottle,electric appliance and light industry products.
Specially designed machinery is capable to laminate and glue combination of two corrugated boards and any type of upper paper or board together. Three feeders are designed to make strong 5 ply boards.One top feeder for printed cardboard or paper,two bottom feeders are for different combination of corrugated boards,such as A+A,A+B,A+E,E+B,ETC or simple lamination of top paper and one bottom corrugated board.Furthermore,two bottom corrugated boards are to be laminated into 4ply corrugated boards. One laminator for versatile jobs,high efficient,money saving,labor saving,labor saving,acceptable tolerance,your choice.
| Item | Description |
| Surface Paper Feeding Part | The Feeding device made in Taiwan ensures that the feeding of surface paper is smooth and accurate. |
| Surface Paper Conveying Part | Unique central gear made of wear-resistant PU rubber cooperating with conveying belt ensures stability and smoothness of conveying, which is adaptive for different sheets of different thickness without any abrasion for the printing surface. |
| Alignment System of Surface Paper | Synchronous sheet pusher particularly designed ensures that the surface paper and bottom paper enter the pasting part at the same time. It can be fine adjusted during the course of working. |
| Bottom Paper Feeding Part | Imported suction feeding device with punching belts ensures stable feeding at high speed. It is suitable for cardboard heavier than 300g/m2, corruggated boards of A,B,C,D,E,F,N and three, five or seven layers. |
| Bottom Paper Conveying Part | Synchronous sheet pusher particularly designed ensures the stable and accurate conveying of cardboards heavier than 300g/m2, and corrugated boards of A,B,C,D,E,F,N and three, five or seven layers. |
| Driving System | Imported wear-resistance timing belt, belt wheels cooperating with sheet pusher, adjustment system and alignment mechanism ensures a paste tolerance of ±1.5mm and reduction of torn sheet. |
| Electrical Control Part | All the electrical power adopted the worl drenowned brands, steady and dureable, frequency speed govering, lower noise and energy conservation. |
-
