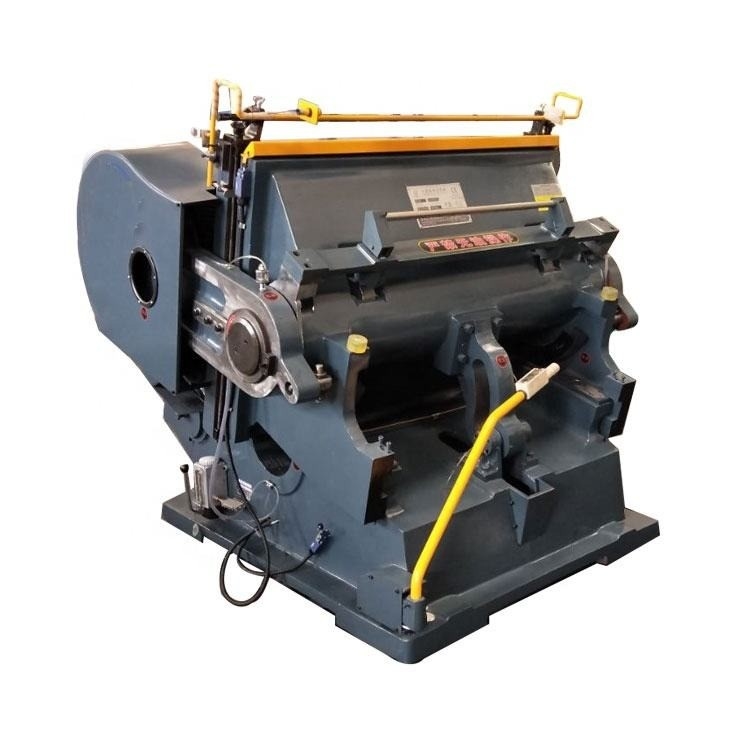

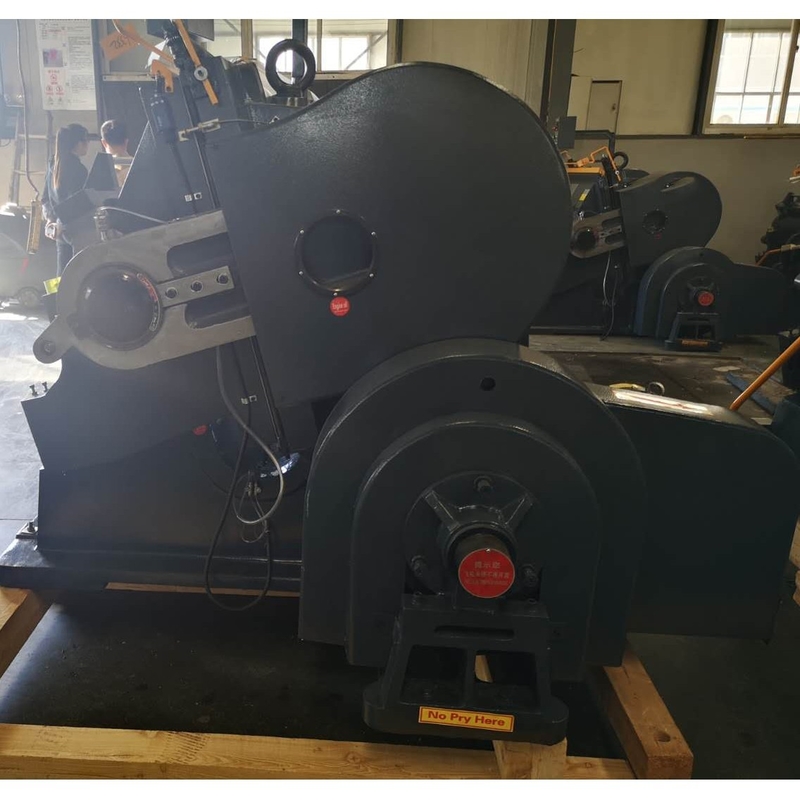

ML 1200 Corrugated Box Die Cutting Machine With Creasing
Technical parameters as below
1.Functions and Characteristics
1) Equip with four insurance parts and four functions. The insurance part including gantry insurance, triangle insurance, hand shank insurance and automatic light-operated insurance to makes the machine safety and reliable.
2) The brake clutch adopts electric suction plate brake clutch to keep the
braking sensitive and reliable.
3) Adjustable template makes the plate loading, unloading more easily. Disposition: Centralized oil supplying,.
4) Three functions including single piece pressing cutting, continuous pressing cutting and time-delay when start machine, the delay time can be adjusted.
2. Components and Place of Origin
3.
| Item | Place of Origin |
| Copper bush | Tin bronze |
| Steel plate | Stainless steel |
| Motor | Hengshui |
| Appliance | Chnt |
| Bearing | Hrb, Wafangdian |
| Travel switch(Insurance) | Schneider |
Machine parameter:
| Model | Max,Rule Area | Workingspeed | Molor | weight | Overall Dimensions(L×W×H) |
| PYQ401C | 750×520mm | 28±2(strokes/min) | 2.2kw | 2000kg | 1260×1350×1280mm |
| PYQ203D | 930×670mm | 23±2(strokes/min) | 4.0kw | 3000kg | 1670×1670×1630mm |
| ML1100 | 1100×800mm | 20±2(strokes/min) | 5.5kw | 4500kg | 1900×1800×1700mm |
| ML1200 | 1200×830mm | 20±2(strokes/min) | 5.5kw | 4800kg | 1900×2000×1780mm |
| ML1300 | 1300×920mm | 18±2(strokes/min) | 5.5kw | 5500kg | 2000×2400×1900mm |
| ML1400 | 1400×1000mm | 18±2(strokes/min) | 5.5kw | 6000kg | 2400*2000*1800mm |
| ML1500 | 1500×1050mm | 18±2(strokes/min) | 5.5kw | 7000kg | 2000×2500×1930mm |
| ML1600 | 1600×1250mm | 16±2(strokes/min) | 11kw | 11000kg | 2170×2560×2230mm |
| ML1800 | 1800×1300mm | 16±2(strokes/min) | 15kw | 13500kg | 2240×2800×2130mm |
DIE CUTTING AND CREASING MACHINE
Description:

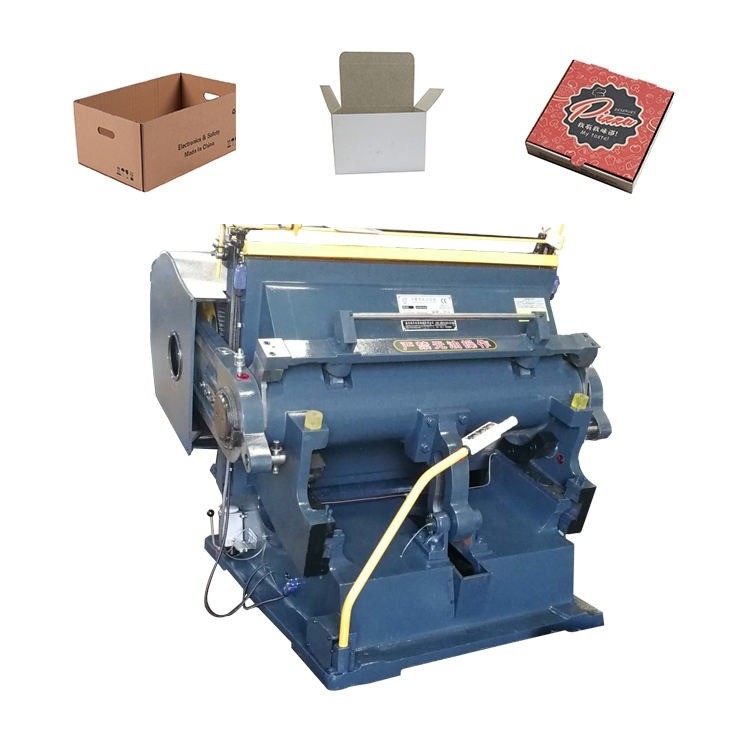

This series creasing and die cutting machine, also called as clam shell die cutter, is a kind of special equipment for die cutting and creasing a wide range of material, such as paper, cardboard, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries. ML series machine has been well accepted by the customers from domestic and oversea market due to its outstanding performance, reliable in quality, easy for operating and low cost in price. This kind of machine is simple and quick to change the mold, and can quickly produce the corrugated boxes required by customers, providing favorable support and guarantee for you to win the market and customers.
Feature:
Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-frication and vibration reducing.
Flywheel with big moment of force and large pressure.
High strength due to whole iron casting by using high quality material for machine body.
Single plate electromagnetic clutch is sensitive and reliable
With functions of single piece, continuous and opening delay operating, dwell range is adjustable.
Operating position is reasonably designed, moving-bed can be opened to its optimum.
Central lubrication system guarantees fine lubrication and reduces friction.
Safety protection system is reliable.
Easy to operate.
Electric control system is in line with international standard.
Heavy model
1. The machinery specializes in the processing and production of all kinds of special-shaped products, all kinds of plastic sheets, automotive interior products, all kinds of leather, as well as all kinds of tongues, shirt collars, and can process all kinds of carton boxes, such as laminating products and sticky.
2. The mechanical casting is the most advanced lost foam process casting in china. Through the artificial effective treatment process, the effect of never deforming is achieved, and the structure of the fuselage frame is improved to make it stronger, completely overcoming the thickness of the old process casting. Uneven, the disadvantage of mechanical deformation caused by force deformation.
3. The shaft and gear of this machine are laigang 40rl heat-treating material, the gear adopts high-precision large spiral angle gear, and the angular displacement design makes it better in occlusion performance and higher strength. The performance is more stable and the noise is lower during operation.
4. The machine castings reach ht250 type material, the key components are 700-2, shaving finishing gears, connecting rod qt500-7.
5. The machine has a large cutting force and the opening angle is not less than 160 degrees, which makes the operation safer and more convenient.
6. The machine brake sensitive, four safety insurance, handlebar insurance, photoelectric insurance, gantry insurance, triangle insurance, to ensure safe and reliable, centralized fuel supply system.
7. The bearing of this machine adopts harbin bearing.
8. The machine contactor, the circuit breaker is imported from france, schneider electric,famouse brand menniu motor.
9. The bushing of the machine is made of wear-resistant alloy zcuzn40pb2, and there is absolutely no counterfeiting.
Our products are sold all over the world, you can rest assured.
