1200 - 2400mm 3 Layers Corrugated Board Production Line Semi Auto

1200 - 2400mm Semi - Auto 3 Layers Corrugated Board Production Line

Corrugated Board Production Line Introduction Of Main Components:

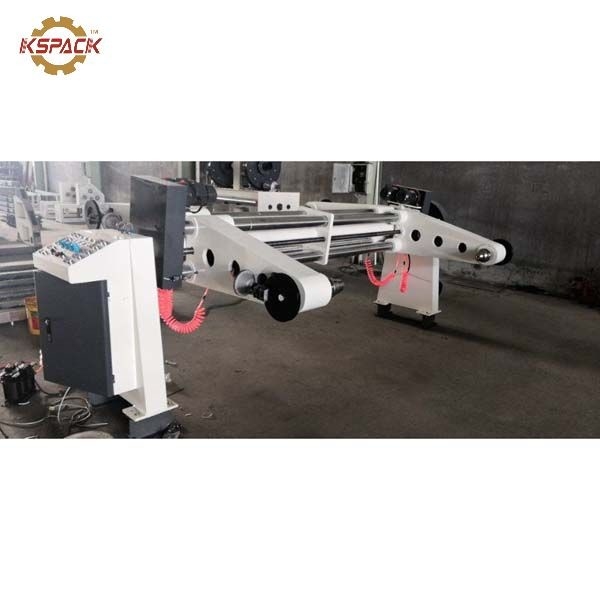

Electric Mill Roll Stand

Structural features:
Symmetrical structure can be installed at the same time two bundles of paper tube, can be used for non-stop machine to change the paper. Electric o clamping, release, moving on the left and right. Brake adjustment using disc plate system. With two-stage automatic expansion of the paper clip, clamp head size 3 inch.

Technical parameters:
Paper stand active model: Mechanical electrical
Clamp paper scape : max 1250mm, min 300mm
Clamp diameter : max ￠1400mm
Single side max load weight : 1500kgs
Power : 380 volt ,50hz
Turn over motor power : 1.5kw /set clamp motor power : 0.75kw 4 set
Manual brake model ( option pneumatic brake model )
Electrical brand : DELIXI CHIT
Machine weight : 1.3T

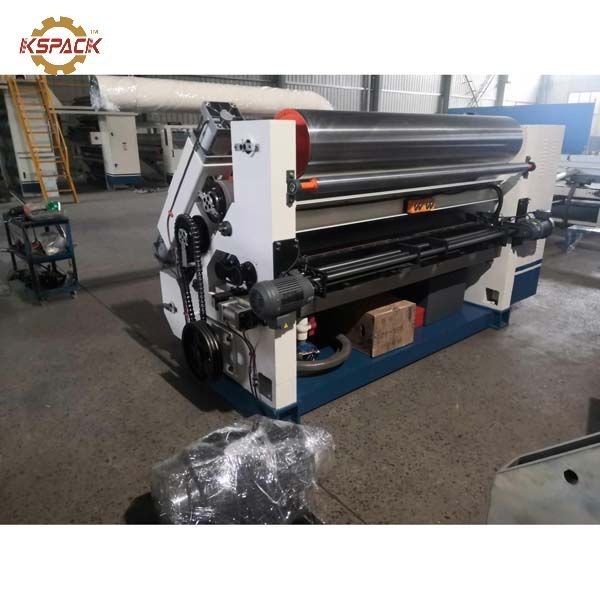

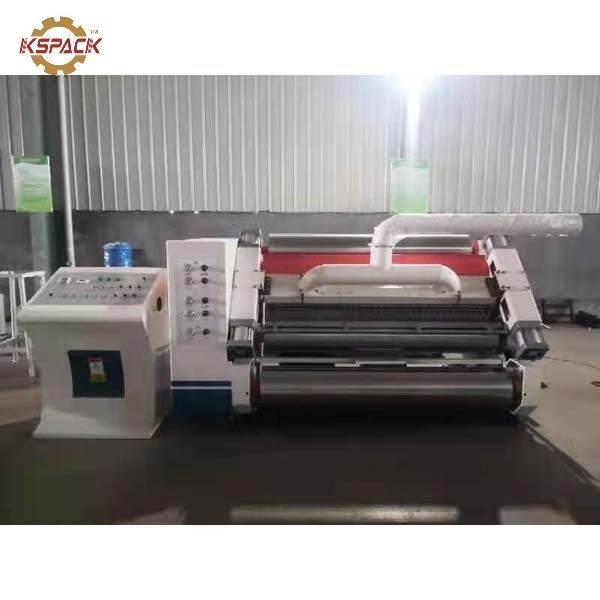

SF-280S Fingerless Single Facer

Structural features:

Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision. The choose of the machine is directly effecting the quality of the corrugated paperboard.

Characteristics:

1. Cover vacuum suction.
2. Corrugating roll is made of high quality alloy steel 48CrMo, the surface is medium-frequency quenched and chrome-plated. Hardness can reach HRC55~60, which ensures good wear-resistance and long life service.
3. No gear transmission.
4. Glue roll is lifted and lowered pneumatically.
5. Independent glue clean device and electric glue-separate board to control the width of glue.
6. Manually regulate or electrically regulate the display device.
7. Lubricated by high temperature lubricate grease.
8. Surface of all dancing rolls and preheating rolls is grind-ed and chrome-plated.
9. Pressure roll is medium- frequency quenched and chrome-plated.
10. Width 1400mm
11. Preheating rolls, pressure rolls and corrugating rolls all meet the National Standard of Pressure Vessel. Working pressure is 1.1MPa.
12. Chain drive
13. Adjust glue by electrical , not manual .

Popular Sheet Cutter

Structural features:

Popular series of cylinder cutting machine,main used for cutting the cylinder paper or single paperboard to quadrangle of needing. And has the characteristics such as easy structure, convenient adjustment, long using life and so on.

BJ Sheet Pasting Machine

Structural features:

The BJ series of sheet pasting machine is a kind of gum mounting used to produce every kind of corrugated paperboard ,this machine can mount the gum on the single and double sides of the corrugated paper with plank paper into the corrugated paperboard ,the gum mounting role rot the machine has chosen the superior quality seamless steel pipe as its material and has the characteristics such as wear –resisting ,long using life and so on.

Technical parameters:

Pressure Machine

Structural features:
The pressure machine is used for the board after gluing , we first gluing the 2 layers corrugated board ,then laminate kraft paper become 3 layers corrugated cardboard , then put 3 layers corrugated cardboard in pressure machine, ensure the 3 corrugated cardboard can glue good . The pressure machine main have single bar and double bars two type . Single bar main for small size board making. Double bar pressure machine is fit for big size and small size board making , the pressure bigger and more stable ,can increase the quality of the cardboard.

Manual Slitting And Creasing Machine

Structural Features:

This machine is a kind of productive equipment with an integral whole process to separately slice the corrugated paperboard and roll the line. The working axle is used the good quality seamless steel pipe and has the advantages such as wear-resisting, long using life and so on. and it is applicable to the high-middle-low scaled paperboard for rolling the line.
