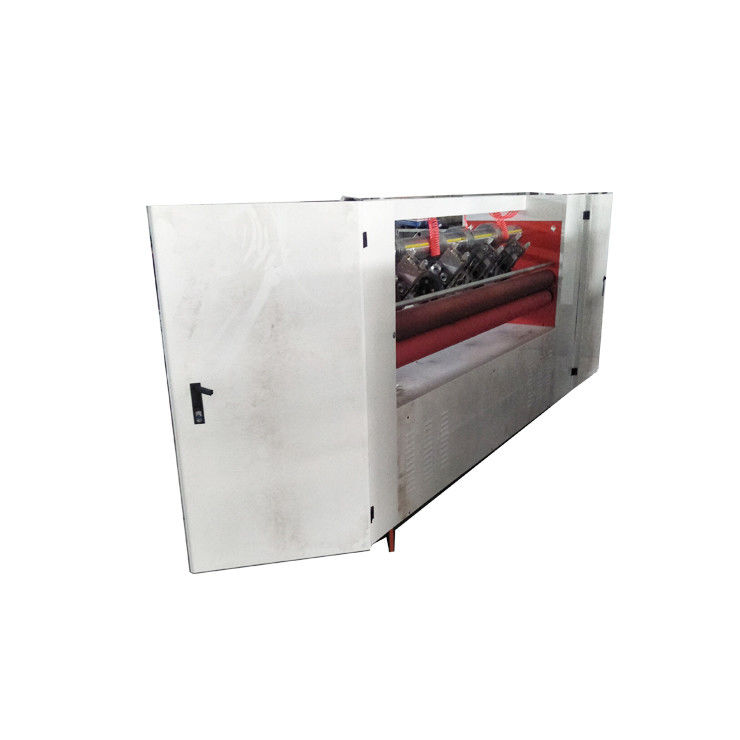

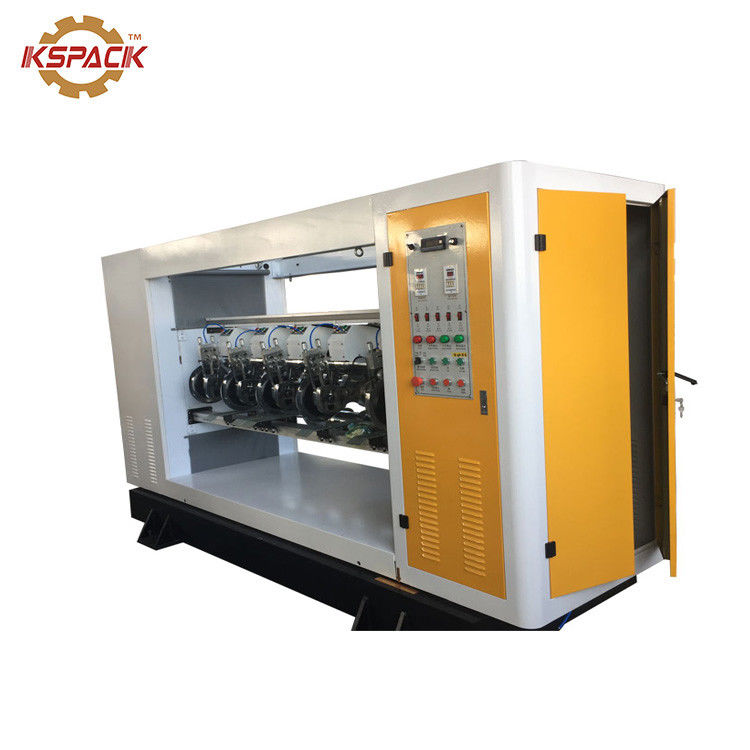

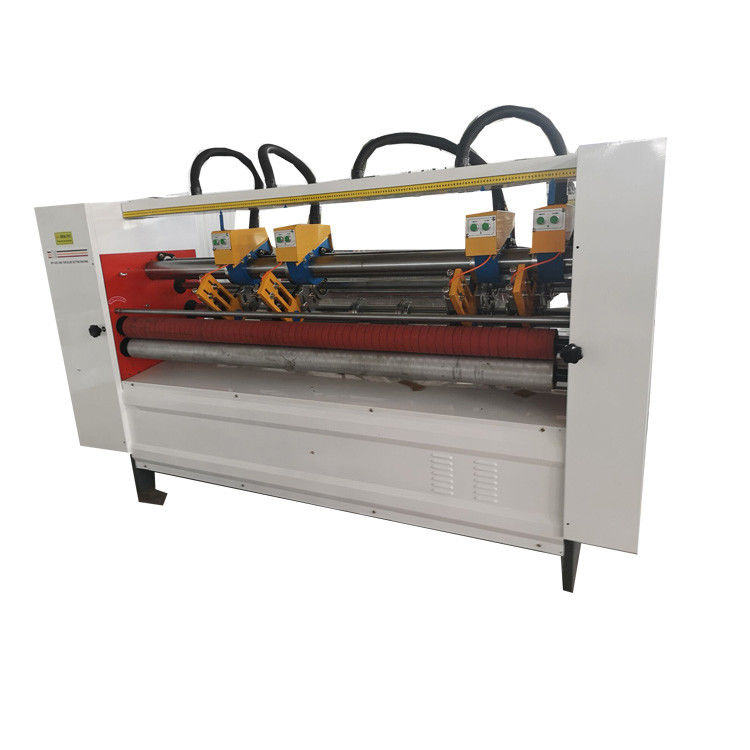

KS Thin Blade Slitter Scorer Machine With Manual Type Paper Feeding
Product Details
Manual Thin Blade Slitter Scorer Machine
,380V Thin Blade Slitter Scorer Machine
,KS Thin Blade Slitter Scorer Machine
KS Thin Blade Slitter Scorer Machine With Manual Type Paper Feeding
Function and Features
1. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.
3. 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
4. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
5. Grinding part: adopt automatic and manual two kinds pneumatic
grinding type, it could be grinding when working, improve work efficiency.
6. Make all shafts, rollers and wallboard thicker to 38mm for machine size bigger than 3m.
7. All the chain wheels material is #45 steel.
8. Main motor is 7.5kw excitation motor for machine size bigger than 3m.
9. Blade & scorer both move by electric is optional for your choosing.
Technical parameters
| TYPE | BFY-1800 | BFY-2000 | BFY2500 | BFY2700 | BFY-3000 | BFY-3500 |
| Effective width | 1600mm | 1800mm | 2300mm | 2500mm | 2800mm | 3300mm |
| Speed | 140m/min | 140m/min | 140m/min | 140m/min | 120m/min | 100m/min |
| Total power | 3kw | 4kw | 5kw | 5kw | 5kw | 7.5kw |
| Min. Slitter-spacing | 120mm | 120mm | 120kw | 120kw | 120mm | 120mm |
| Min. Score-spacing | 30mm | 30mm | 30mm | 30mm | 30mm | 30mm |
| Min. Paper length | 260mm | 260mm | 260mm | 260mm | 260mm | 260mm |
| Dimensions L x W x H (mm) | 2440*770*1350 | 2640*770*1350 | 3140*770*1350 | 3340*770*1350 | 3640*770*1350 | 4200*800*1700 |
| Reference prirce | USD4150 | USD4350 | USD4650 | USD5100 | USD5450 | USD6250 |
Our Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
FAQ
| Q | A |
| Are you the trader or manufacturer? | We are the manufacturer with export qualification |
| Do you make oem? | Yes.here can do |
| 5.where are your factory located in? | We are in dongguang town,cangzhou city,hebei,china |
| What is your business process? | Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine. |
After Sales Service
Free Shipping Replacement Spare You just need to pay the freight
One To One Video Teaching We Provide Operation & Maintenance cd
-11 years experience
-Export to more than 150 countries
-Professional international sales more than 30 persons
-Professional sale team
technical team and after-sales service team
