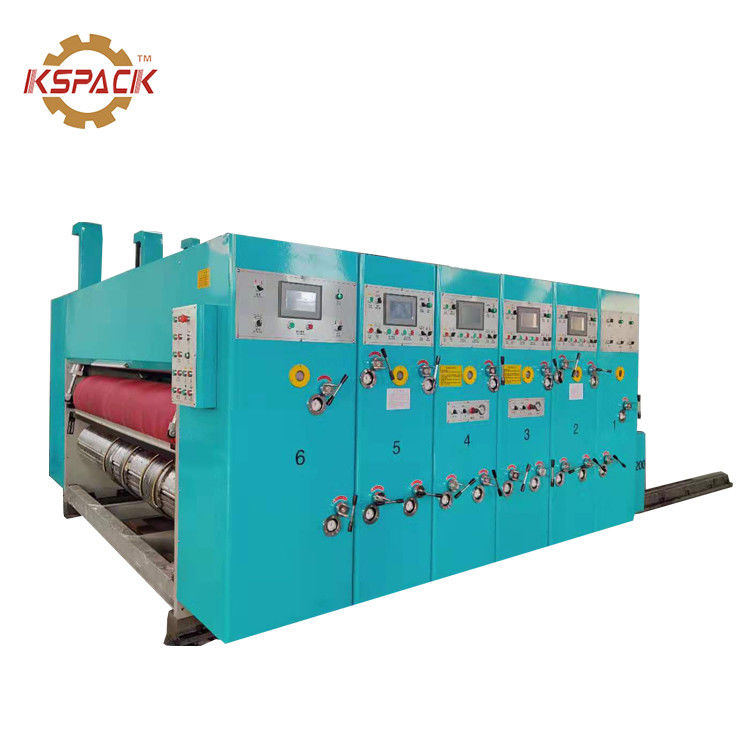

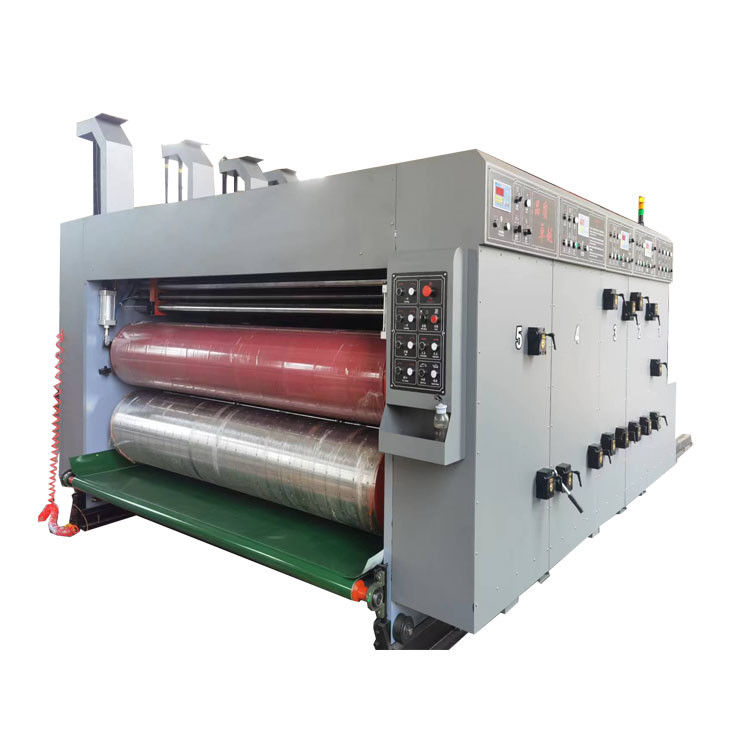

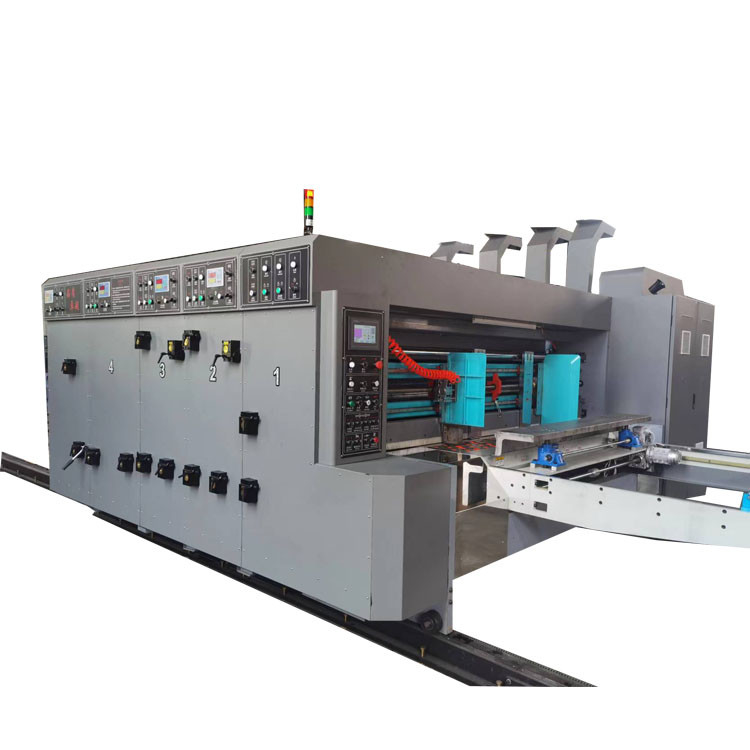

Automatic 2 5 Color Corrugated Box Printing Machine For Carton Box
Product Details
Corrugated Box Printing Machine 12kw
,5 Color Corrugated Box Printing Machine
,Corrugated Box Printing Machine Automatic
Automatic 2 5 Color Corrugated Box Printing Machine For Carton Box
Corrugated Box Printing Machine INTRODUCE
MQJ series of rotary diecutter for cutting a variety of corrugated board and all kinds of special-shaped packaging. It has a high efficiency, power saving, safe features, is the third generation of domestic rotary diecutter. The machine is equipped with imported polyurethane felt( anivil cover), its service life of up to 10 million times, the line speed automatic compensation function can ensure that the blanket wear after the mold cut out the normal size of the cardboard, soft roller repair mechanical color can extend the service life of three Times.The machine use , the use of more convenient operation.
SPECIFICATIONS AND TECHNICAL PARAMETERS
Paper feed section
1, adopt the advance technical half wheel model Feeding system, paper feed high accurate ,economic speed of 6000 per hour, die-cutting accuracy +- 1mm. completed slotting, cut corner, crease, punching. Saving labor, improve production efficiency. 2, the phase using electric adjustment structure, 360-degree rapid adjustment.
3, feed roller with glue groove surface, to prevent crushing cardboard, increase the accuracy of paper feed.
4, paper towel with high strength polyurethane material, durable.
2)Electrical department
1, main motor electromagnetic speed power 5.5kw, Hengshui motor to save power. 2, ahead and back control panel concise, easy to operate.
3, whole machine light, electricity, air joint control system.
4, whole electrical accessories are brand-name manufacturers products
3)Die cutting
1, die-cutting roller for high-quality steel, wall thickness 30mm, balanced correction, hard chrome plated
2, wall panels for high-quality cast iron material, wall thickness 50mm, large-scale processing center production.
3, anivil cover automatic grinding mechanism to improve the re-use rubber, grinding 3-4 times.
4, the line speed automatic compensation to ensure that each batch of carton die cutting size exactly the same.
5, imported polyurethane anivil cover, easy installation, die cutting 12 million times.
6, cam-type soft roller around the horizontal movement of 40mm, pad wear evenly.
7, lubrication system oil-immersed lubrication, simple and efficient
MAIN CONFIGURATION
|
ITEM MODEL |
MAX DIE CUT SIZE MM | MIN DIE CUT SIZE MM | PAPER THICKNE SS MM | MAIN MOTOR |
| MQJ-1800 | 1730*1400 | 300*600 | 2-11 | 5.5KW |
| MQJ-2100 | 2050*1400 | 300*600 | 2-11 | 7.5KW |
| MQJ-2300 | 2050*1400 | 300*600 | 2-11 | 7.5KW |
| MQJ-2500 | 2480*1400 | 300*600 | 2-11 | 7.5KW |
| MQJ-2800 | 2730*1400 | 300*600 | 2-11 | 11KW |
| MQJ-3000 | 2980*1400 | 300*600 | 2-11 | 15KW |
PARE PARTS FOR FREE
| Item | Qty |
| Inside hexagon spanner 4mm | 1 pcs |
| Inside hexagon spanner 5mm | 1 pcs |
| Inside hexagon spanner 6mm | 1pcs |
| Inside hexagon spanner 8mm | 1pcs |
| Inside hexagon spanner 10mm | 1pcs |
| screw driver | 1pcs |
| Operate button | 10pcs |
| Phase instrument | 1 pcs |
| Air tube | 5 meter |
| Screw for wooden die installment | 20pcs |
| Feed wheel | 5pcs |
-
