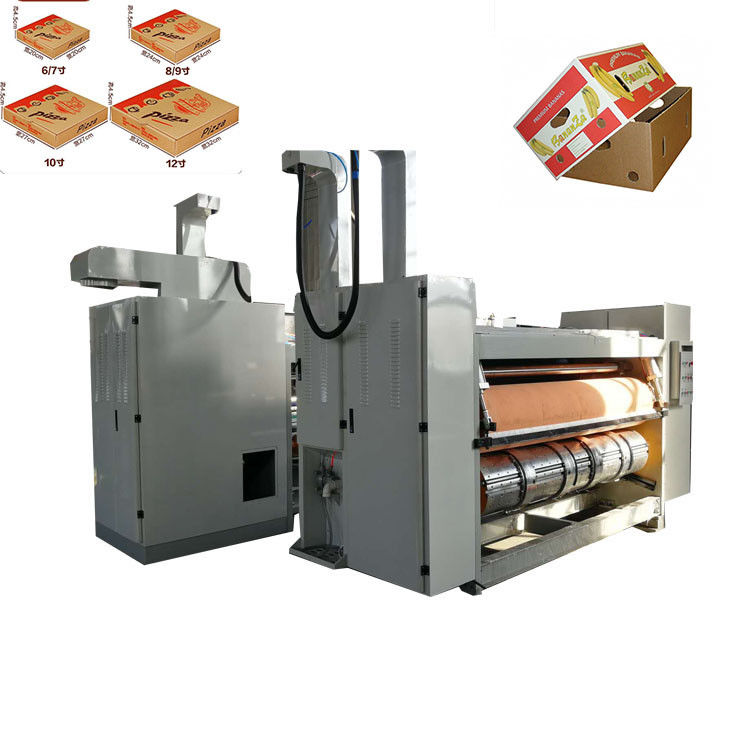

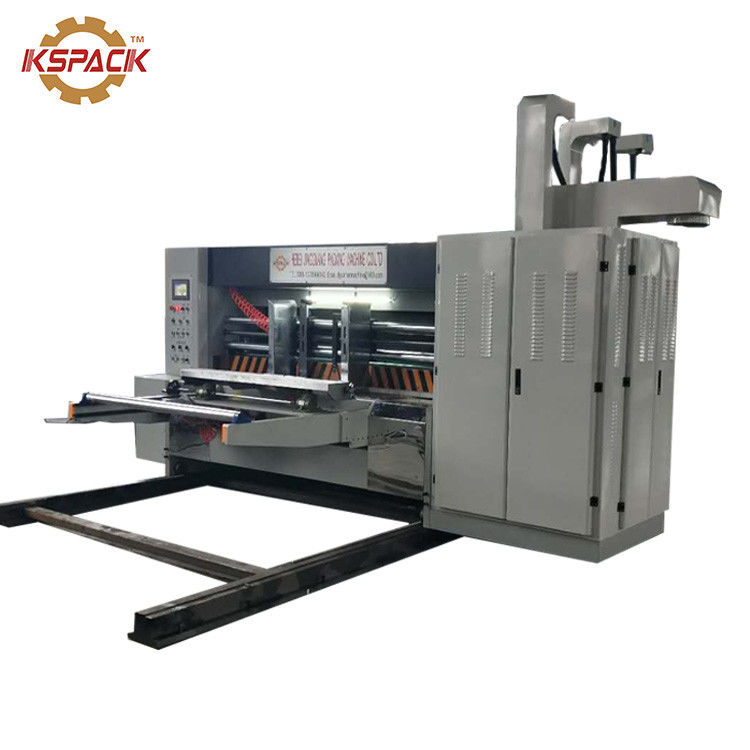

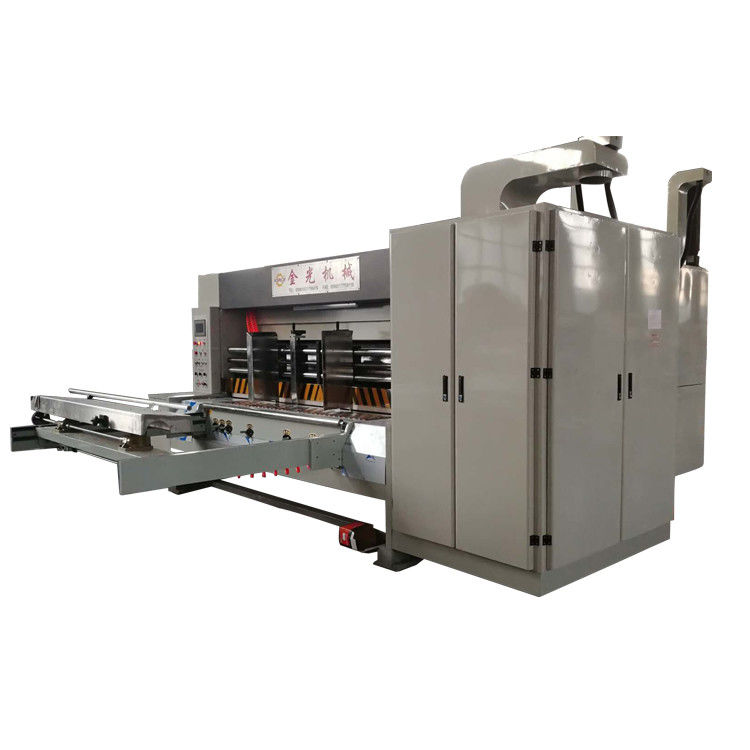

2-4 Colors Corrugated Box Printing Machine 100 - 200 Sheets / Min
Corrugated Box Printing Machine Production Description
This machine is an automatic carton production equipment which integrates the functions of paper feeding, printing, slotting, die cutting folding, box sticking and bundling. The equipment not only saves labor, but also realize the working concept of high speed, high efficiency and low consumption.
The whole machine's electrical appliances and equipment spare parts all adopt international famous brands with stable and reliable quality, and adopt man-machine interface, which is simple, efficient, economical and easy to operate.
Corrugated Box Printing Machine Production Details
Feeding Unit
★Leading edge paper feeding adopt Vacuum adsorpton,trequency conversion control ar voume,increase paperboard conveying stability and accuracy.
★ Quick-change paper feeding roller mechanism, wrapped in sot ruober,durable, easy maintenance.
★ Let and rght bafles and rear pallets are all computer controlled, precision guding mechanism, displacement, wih side shooting function.
Printing Unit
★ Ratchet type quick-hanging device, full plate of the hanging groove, suitable for 9mm hanging strips, with foot switch electric control positive and negative.
★ Clean plate memory,automatic reset system.
★ Optional: scraper and ceramic anilox roller distributing ink type.
★ Optional:tit corection device,the tit error when glue plate on printing roller can be quickly corrected on the plate roller.
Slotting Uit
★ Aloy steel material is heat treated and ground with serrated slot blade,good hardness and toughness.
★ Pressure wheel,blade holder traverse move, phase adjustment, resetetc. All adopt computer control (automatic or manual) electric control, change orders quickly.
★ Medium knife lateral displacement structure, wide adaptability toproduction.
★ Optional: double-pole double-axis slotting unit.
Die Cutting Unit
★ Equipped with imported quick change type polyurethane rubber, easy to change, with one-way clutch as linear velocity compensation function, Ensures the rubber wear before and wear after die cut out the cardboard is same.
★ In the work, the die-cut rubber roller mat is mechanically spirally left and right automatically traversed (±20mm),so that the notch marks are not repeated, and the life of the rubber is extended.
Corrugated Box Printing Machine Specifications
|
Machine Components |
Standard Configuration |
Optional Additional Accessories |
|
Leading Edge |
PLC, double cover, dust removal |
Light Pressing Device |
|
Printing Unit |
PLC, double cover, |
Ceramic Roller,Squeegee |
|
Slotting Uit |
PLC, double cover,Four-knife linkage manual slotting |
Four knives linkage + electric button electric hand press slotting, Full ESC 4-axis slotting,Double preload full ESC 6-axis slotting |
|
Die Cutting Unit |
PLC, double cover, |
|
Automatic stacker and carton forming machine are also available as options.
Our Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
1.Q:Are you the trader or manufacturer?
A:we are the manufacturer with export qualification
2.Q:Do you make OEM?A:Yes.herecando
3.Q:Where are your factory located in?
A:we are in Dongguang town,Cangzhou city,Hebei,China
4.Q:What is your business process?
A: Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine
Our products are sold all over the world, you can rest assured.
