Automatic Flute Laminator Machine 3 Layer 5 Layer Corrugated Board
Product Details
Automatic Flute Laminator Machine 3 layer
,Automatic Flute Laminator Machine 5 layer

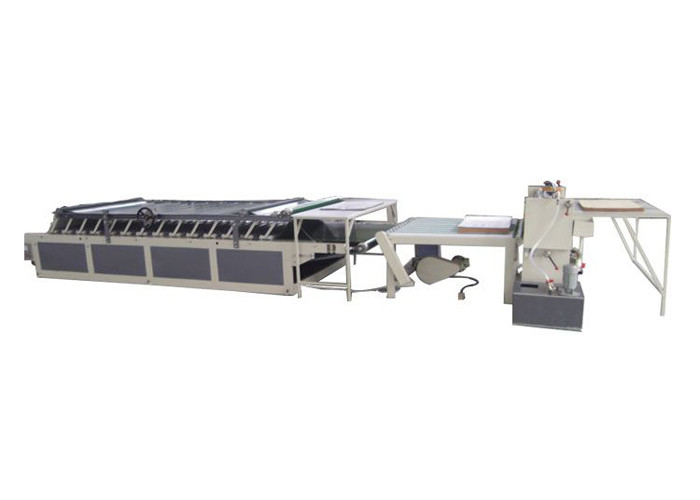

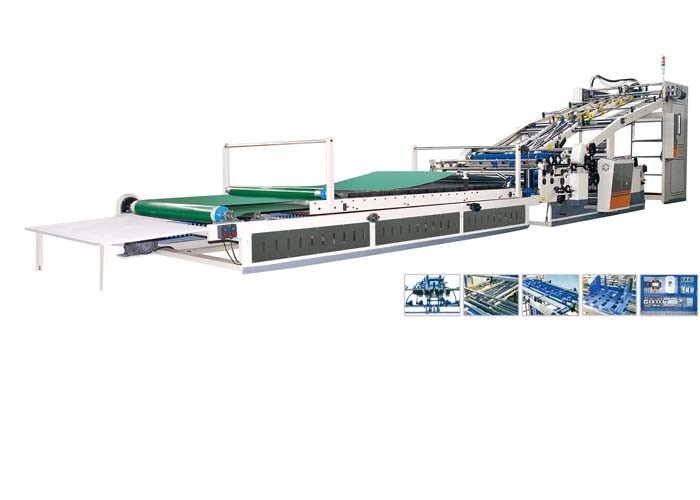

Automatic Flute Laminator Machine 3 layer 5 layer corrugated board
Flute Laminator Machine Product Description
Brief introduction for corrugated flute laminating machine
- Automatic laminating machine are the fourth-generation products of back push style, the machine have advantage of easy operation, convenient maintenance, high speed, low noise, and high accuracy. it will help you to gain the power in the market improved parts and electrical components from japan and Germany, guarantee the quality and use life.
- Timing belt drive of the machine is mainly imported from japan, . timing belt has soft and tough, durable wear and heat resistance characteristics to ensure the accuracy of the machine precision fit.
- Adopt the high-tech control system, supply the glue by automatic when the machine working, match with the recyclable gluing system, glue quantity can adjust according to the different of the paperboard, it make the glue evenly on the paperboard, this system ensures glue saving with better lamination quality
- Suitable for lamination of corrugated paperboard to cardboard ,and cardboard to cardboard.automatic feeding bottom sheet paperboard and face paperboard
Flute Laminator Machine Main characters for corrugated flute laminating machine
Face sheet max weight: 600g/m2,min. face sheet min weight: 200g/m2,corrugated sheet max weight: 600g/m2, corrugated sheet min weight: 250g/m2, less vibration and low noise, gluing even: 30-50gsm. quite cost effective for your production, side lay registration is installed on the machine.
Flute Laminator Machine Main size for corrugated flute laminating machine
model | unit | kstm- 1100 | kstm- 1300 | kstm- 1450 | kstm-1600 |
maximum paper size(w×l) | mm | 1100×1100 | 1300×1100 | 1450×1100 | 1600×1400 |
minimum paper size(w×l) | mm | 350×350 | 350×350 | 350 x 350 | 450×450 |
laminating precision | mm | ≤±1.5 | ≤±1.5 | ≤±1.5 | ≤±1.5 |
speed | s/min. | 100 | 100 | 100 | 100 |
total power | kw | 12 | 12 | 12 | 13 |
length | m | 11.5 | 12.5 | 12.5 | 15 |
Our Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
FAQ
1.Q:Are you the trader or manufacturer?
A:we are the manufacturer with export qualification
2.Q:Do you make OEM?
A:Yes.herecando
3.Q:Where are your factory located in?
A:we are in Dongguang town,Cangzhou city,Hebei,China
4.Q:What is your business process?
A: Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine.
-
