Vaccum Belt Feeder Thin Blade Slitter Scorer Machine Width 1800mm

Vaccum Belt Feeder Thin Blade Slitter Scorer Machine Width 1800mm

  • High Light

    1800mm Board Corrugated Slitter Machine


    Vaccum Belt Feeder Corrugated Slitter Machine


    Vaccum Belt Feeder slitter scorer machine

  • Voltage
    Customer's Demand
  • Automatic Grade
  • Condition
  • Driven Type
  • Packaging Type
  • Packaging Material
    Pe Film Or Pack It According To Customers Special Request .
  • Weight
  • Dimension(l*w*h)
  • Application
    Machinery & Hardware
  • Warranty
    1 Year And Long Life Technical Support
  • Name
    Thin Blade Slitter Scorer Machine
  • Color
    As Per Customer Need
  • Place of Origin
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1 set per 30 days

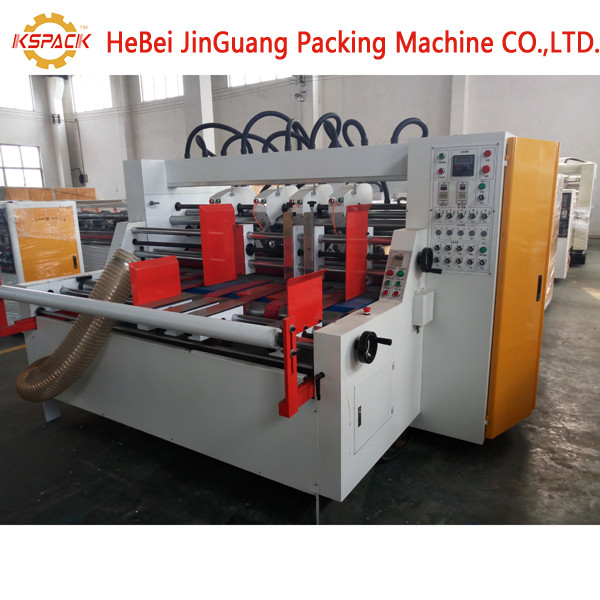

Vaccum Belt Feeder Thin Blade Slitter Scorer Machine Width 1800mm

Vaccum Belt Feeder Thin Blade Slitter Scorer Machine Work Width 1800mm

Thin Blade Slitter Scorer Machine Functions and features:

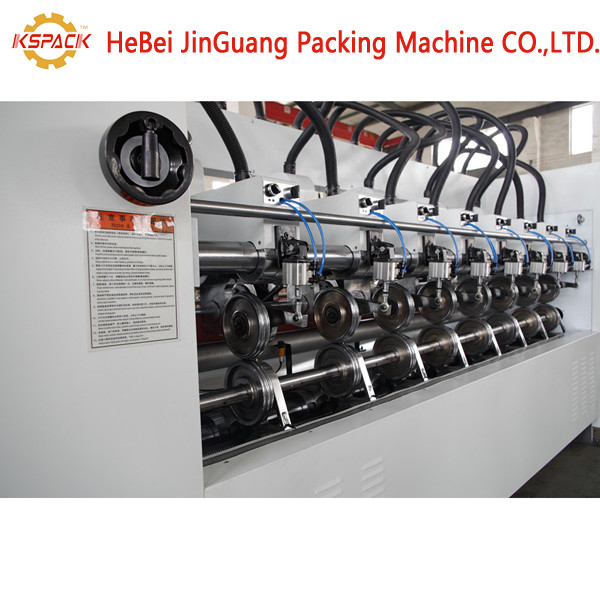

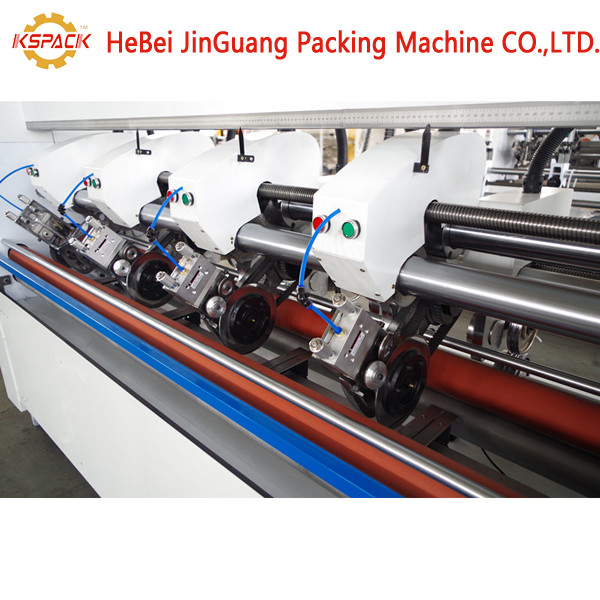

This machine adopts a belt suction air feeding system, which has the function of one-time completion of paper separation and line pressing for corrugated cardboard. The standard model is a four knife and six wire system, and the power is divided into three parts. The first power motor is the belt paper feeding unit, which uses frequency conversion speed regulation to control the speed of paper feeding. The second power motor is the paper separation and line pressing section, and the frequency conversion speed regulation can make the paper separation speed adjustable, and is used at a different speed from the paper feeding motor. The third part of the motor is a suction and paper feeding motor. When the paperboard is too large or warped, turn on the suction fan to make the maximum area of the paperboard contact the paper feeding belt to achieve stable paper feeding. The pressure of the paper feeding shaft and the paper separating shaft are mechanically and manually adjusted. The upward and downward pressure of the upper shaft rotates the pressure handle, and both sides coordinate to balance and adjust the pressure.

Thin Blade Slitter Scorer Machine parameters

1. Maximum paper feeding speed

80 meters/minute

2. Paper separation accuracy

≤ ± 1.0mm Paper separation knife spacing 60mm

3. Maximum machining size

1800mm X 1100mm

4. Minimum machining size

450mm X 170mm

5. Suction motor power


Paper feeding motor power


Paper separation motor power


6. Total power
