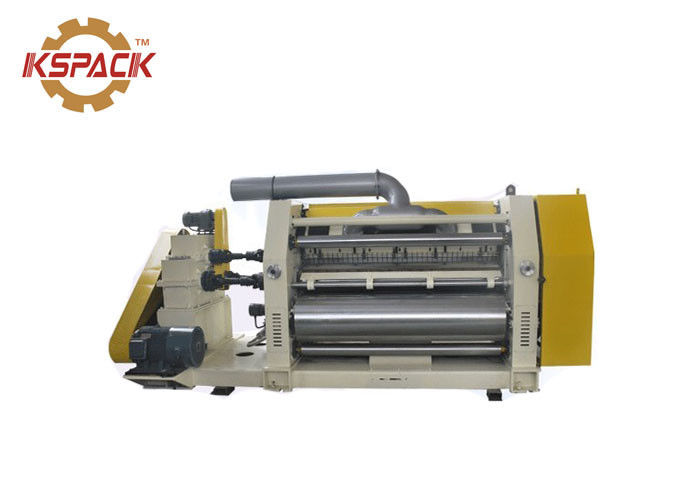

SF-320 Automatic Single Face E Flute Corrugated Cardboard Carton Paper Box Products Making Machine
※Characteristics:
1. Adopt the cover style adsorb structure ,match with high pressure winder , winder match with quiter ,air and electrical control centrated in the operation work table, distance with main machine1.5 m .main machine operation side all have the cover.
2. Machine seat with wallboard all case iron , the thickness of wall board 130mm ,adopt the alone gearbox ,and gimbal transmission
3.Corrugated roller adopt 48 crmo ,alloy steel ,after laser hardening
Surface grinding , corugated roller diameter 320mm ,surface hardness HRC60 ,main part bear of the corrugated roller ,and pressure roller with stand high temperature
4.Pressure roller diameter324mm ,surfacer grinding and chormeplated ,cylinder control move up and down ,material medium carbon steel 45#,hardening and tempering (with cushioning device)
5. Pneumatic control supply or reback the glue ,coating glue roller diameter 215mm ,surface after grinding ,carved 25 line steel pit anilox , then chorme plated , even glue roller after grinding then chorm plated .
6. Corrugated roller ,pressure roller material suppled by zhongyuan tegang, corrugated roller single side have 0.15mm middle height, pressure roller single side 0.075mm middle height. Add the limit device,
Press clycinder use diameter 160mm

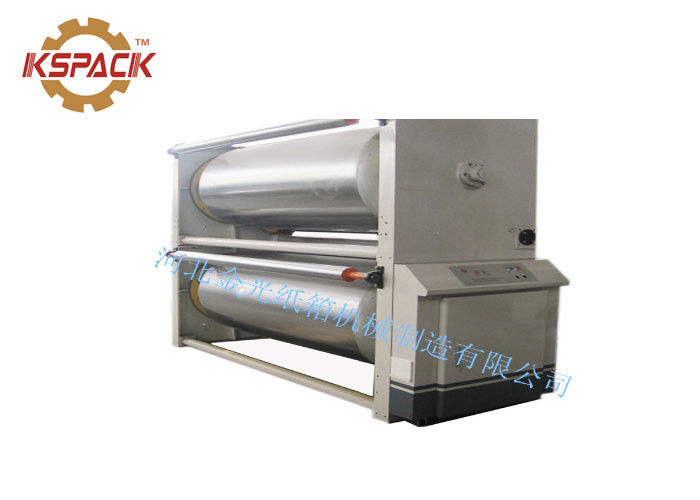

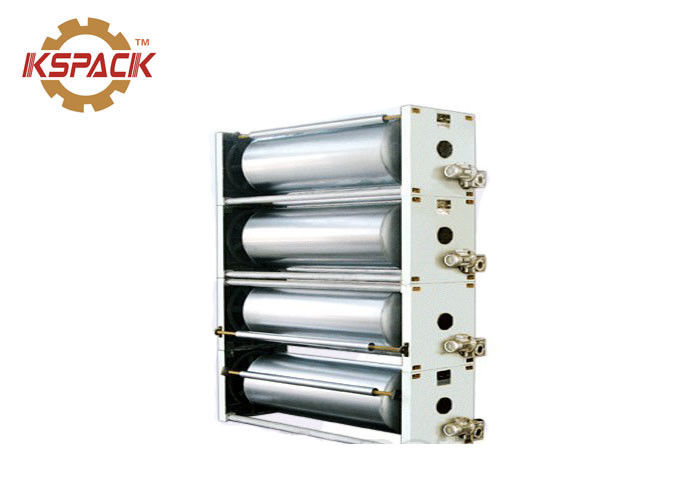

Preheater diameter 320mm ,use the steamless steel ,connect by steel soft tube.
Note :
Electric adjust glue model
Universal joint drive
※Techinicalparameter :
1,Work width:1800mm
2,Operate direction :left or right ( according the cletns workshop design)
3,Temperature scale:160—200℃
4,Air compressor:0.4—0.9Mpa
5,Stear pressure:0.8—1.3Mpa
6,Corruated style (Uvstye or UVVstyle)
※Roller Diameter Parameter:
1,Corrugated roller diameter : ￠320mm
2,Pressure roller diameter: ￠324mm
3,Glue coating roller diameter: ￠215mm
4,Preheater diamter: ￠320mm
| Working Width | 1800mm | ||||
| Heating method | Steam heating | ||||
| Compress-air pressure | 0.4-0.9MPa | ||||
| Flute type | Standard flute | UVE Flute | |||
| Standard spec. | A,B,C,E,F | ||||
| For other type and model, we can produce as customer’s requirement. | |||||
| Corrugated roll diameter (mm) | 320 | ||||
| Wall Thickness (mm) | 130 | ||||
| Type | Vacuum Absorb | ||||
| Roller material |
Tungsten coated roller |
||||
| Machine Size (mm) | 3050*1300*1700 | 3300*1300*1700 | 3550*1300*1700 | 3800*1300*1700 | 4050*1300*1700 |
Our Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
FAQ
1.Q:Are you the trader or manufacturer?
A:we are the manufacturer with export qualification
2.Q:Do you make OEM?A:Yes.herecando
3.Q:Where are your factory located in?
A:we are in Dongguang town,Cangzhou city,Hebei,China
4.Q:What is your business process?
A: Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine
Our products are sold all over the world, you can rest assured.
