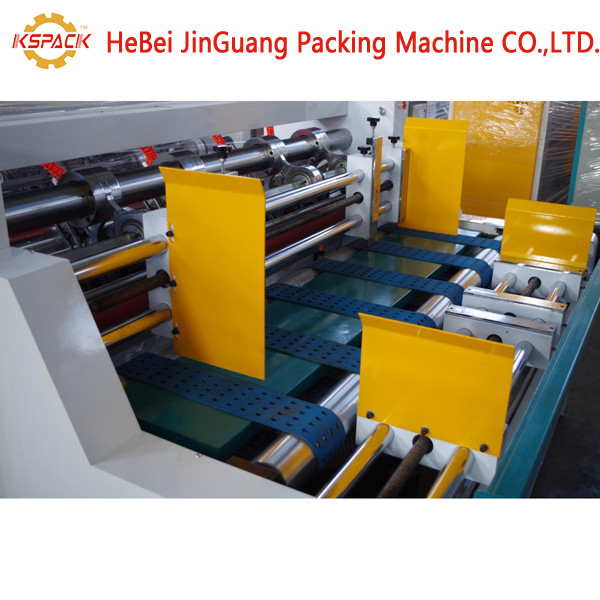

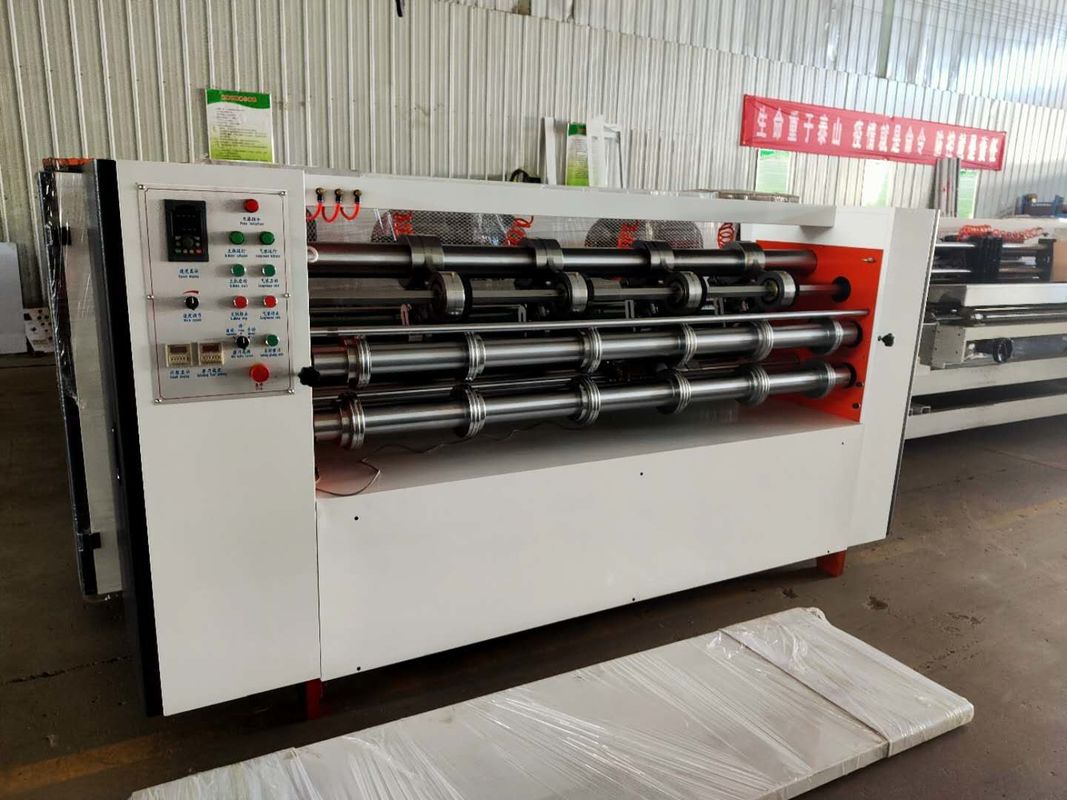

Full Automated 2600mm Thin Blade Slitter Scorer Machine Fast Speed
Thin Blade Slitter Scorer Machine Detailed Technical Parameters

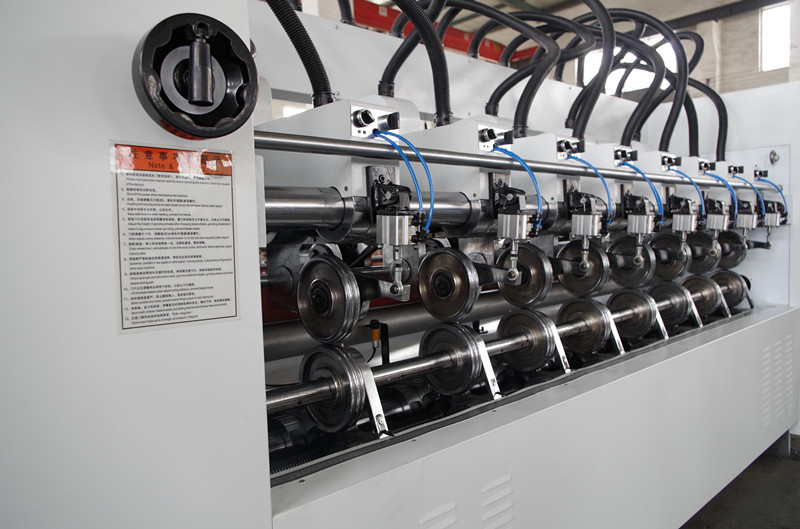

Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
开槽部分:采用优质钨钢刀片,工作寿命锋利,更长,切片更整齐,不冲压,无毛刺.
Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.
采用8轴设计,分切片前后两轴,可将纸板加工长度减少至260mm.
8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
8轴与前评分喂养,后双橡胶辊为纸领先,运行更稳定.
Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
采用5分评分,评分距离同步调整,装饰物成型,纸箱易弯曲.
Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work efficiency.
采用自动和手动两种气动磨削方式,工作时可进行磨削,提高工作效率.
Make all shafts, rollers and wallboard thicker to 38mm for machine size bigger than 3m.
当机器尺寸大于3m时,使所有轴,滚轮和墙板的厚度达到38mm.
All the chain wheels material is #45 steel.
所有链轮材料均为#45号钢.
Main motor is 7.5kw excitation motor for machine size bigger than 3m.
主电机为7.5kw励磁电机,电机尺寸大于3m.
Blade & scorer both move by electric is optional for your choosing.
刀片和得分手都移动电是可选择的选择.
Thin Blade Slitter Scorer Machine Technical Parameters
|
TYPE |
BFY-2800 |
|
Max Effective width |
2600mm |
|
Speed |
140m/min |
|
Total power |
5kw |
|
Min. Slitter-spacing |
120mm |
|
Min. Score-spacing |
30mm |
|
Min. Paper length |
260mm |
|
Dimensions L x W x H (mm) |
3140*770*1350 |
Thin Blade Slitter Scorer Machine Spare Parts For Free
|
Item |
Quantity |
|
Blade adjustment wrench |
1Piece |
|
Allen wrench |
1Piece |
|
Screw |
1Piece |
|
Cylinder joint |
1Piece |
|
Synchronous belt |
1Piece |
|
Small cylinder |
1Piece |
|
Solenoid valve |
1Piece |
Recommend spare parts to buy (it should be paid )
|
Item |
Price |
|
Cylinder (20*10) |
9USD/piece |
|
Cylinder(63*15) |
17USD/Piece |
|
Grinding cylinder |
20USD/Piece |
|
Solenoid Valve |
13USD/Piece |
|
Synchronous belt(ChuanBen brand ) |
9USD/piece |
|
Alloy blade |
48USD/piece |
|
Alloy grinding wheel |
6USD/Piece |
