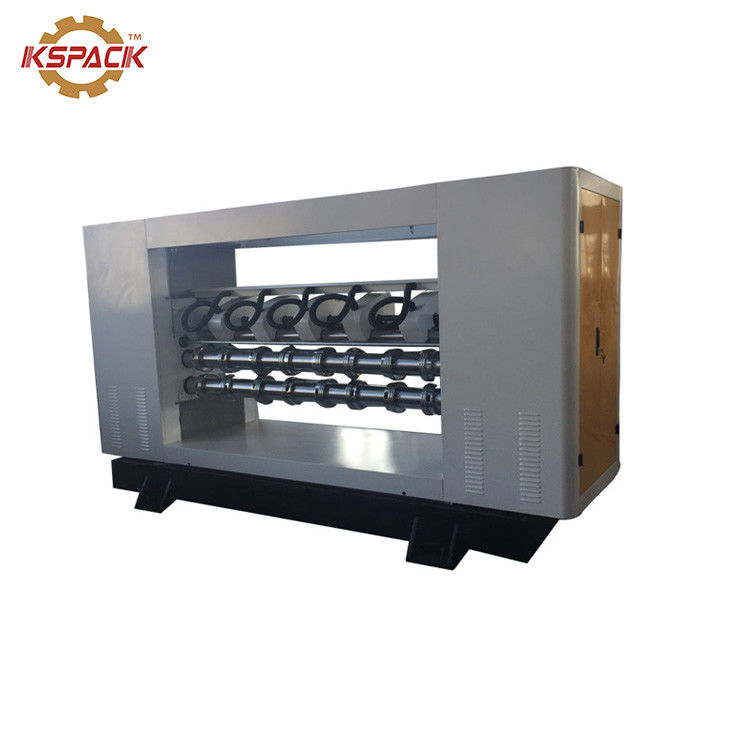

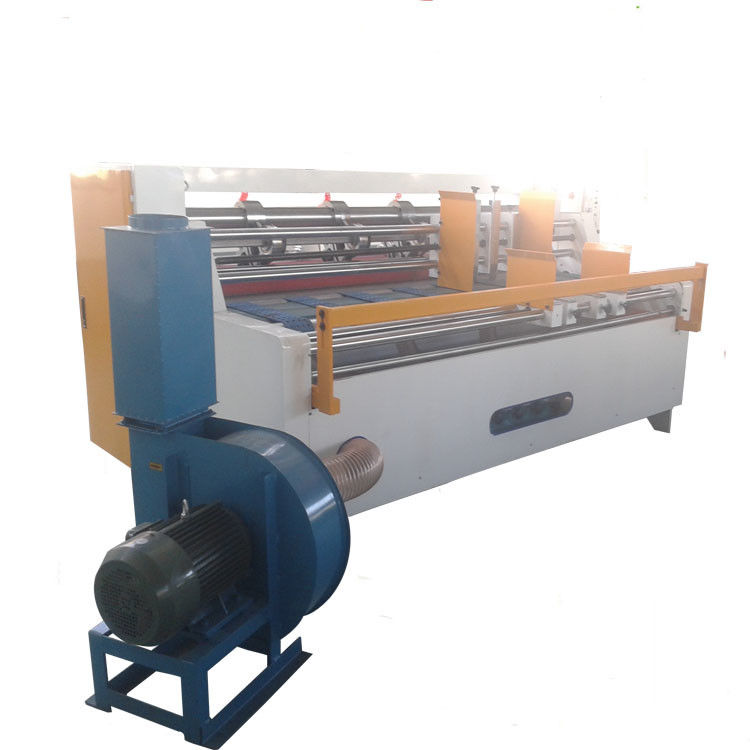

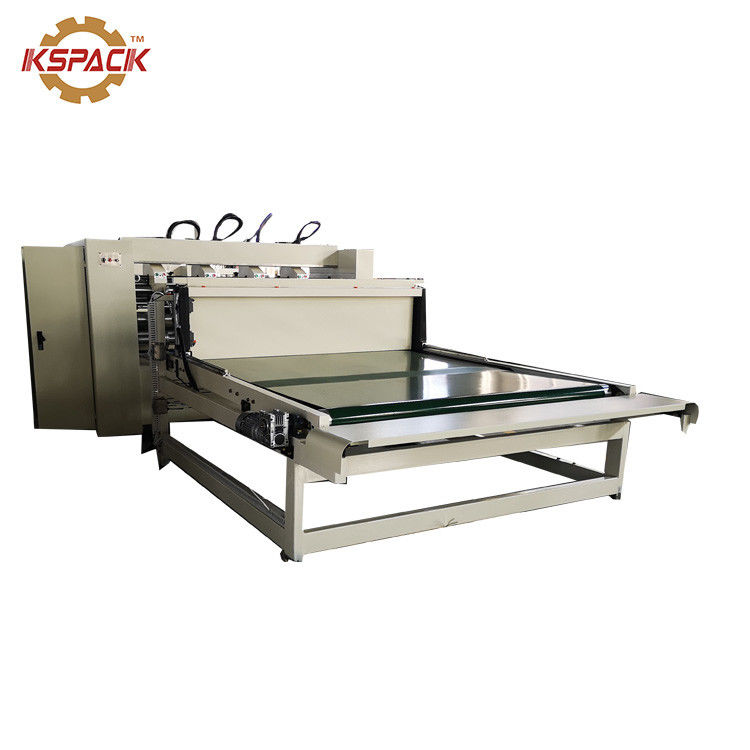

Manual Movement Thin Blade Slitter Scorer Machine With Four Knives

Manual Movement Thin Blade Slitter Scorer Machine With Four Knives

  • High Light

    Four Knives Thin Blade Slitter Scorer

    ,

    Manual Movement Thin Blade Slitter Scorer

    ,

    Manual Movement slitter scorer machine

  • Voltage
    380V,220V/380V,Customer's Demand,380-440V,380V/50HZ
  • Automatic Grade
    Semi-Automatic
  • Condition
    New
  • Driven Type
    Electric
  • Packaging Type
    Cartons,Film,Case,Belt,Pallet
  • Packaging Material
    Plastic,Paper,Wood,Metal,Pe Film Or Pack It According To Customers Special Request .
  • Weight
    1000kg,2500KG,4-8mt,3000-5000kg,1t
  • Dimension(l*w*h)
    L1340*W1580*H1950mm,3000*1600*1900,2630*1791*1130,4x1.5x1m,1800mm
  • Type
    Packaging Line,Thin Blade Slitter Scorer,Packing Machine,separating Paper Pressing Line
  • Application
    Machinery & Hardware,Commodity,Food,Beverage,Textiles
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas,Overseas Service Center Available
  • Warranty
    1 Year
  • Function
    Electric Carton Packer
  • Keywords
    Thin Blade Slitter Scorer Machine
  • Color
    As Per Customer Need
  • Name
    Thin Blade Slitter Scorer Machine
  • Place of Origin
    CHINA
  • Brand Name
    Kingsun
  • Certification
    CE ISO
  • Model Number
    KSJ
  • Minimum Order Quantity
    1 SET
  • Price
    Negotiate
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1 set 40per days

Manual Movement Thin Blade Slitter Scorer Machine With Four Knives

Thin Blade Slitter Scorer Machine

Production Description



Thin Blade Slitter Scorer Machine Function and Features

1.Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2.Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.
3. 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
4. Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
5.Grinding part: adopt automatic and manual two kinds pneumatic
grinding type, it could be grinding when working, improve work efficiency.

6.Make all shafts, rollers and wallboard thicker to 38mm for machine size bigger than 3m.
7.All the chain wheels material is #45 steel.
8.Main motor is 7.5kw excitation motor for machine size bigger than 3m.
9. Blade & scorer both move by electric is optional for your choosing.


Thin Blade Slitter Scorer Machine Specification



Model number

BFY-2000

BFY-2500

Width of paper(mm)

2000

2500

The most speed of paper(m/min)

141

141

Sliting cutting

3-5

3-5

Minimum press line width(mm)

200

200

Minimum pressure line width(mm)

200

200

Outer radii of thin round edge(mm)

260

260

Thickness of thin round edge(mm)

1

1

Power(kw)

4

4

Weight(kg)

2000

2500

Size of config uration(L*W*H)

2630*1791*1130

3050*1791*1130
