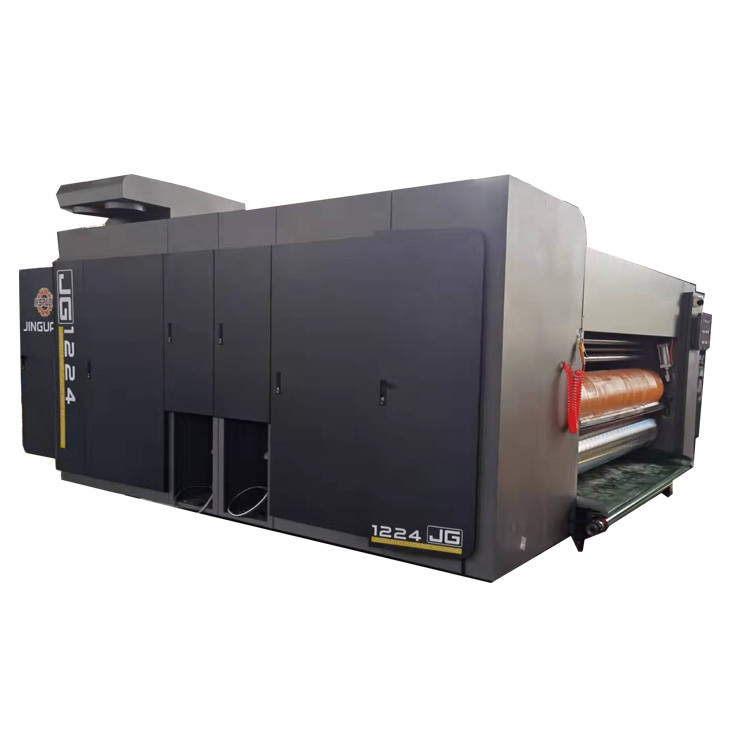

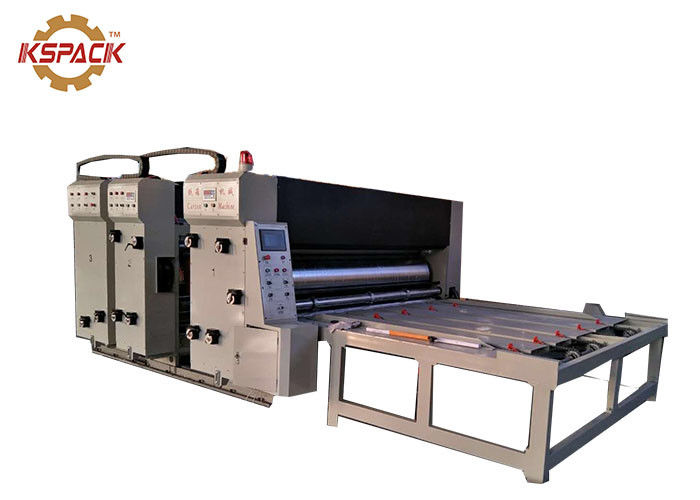

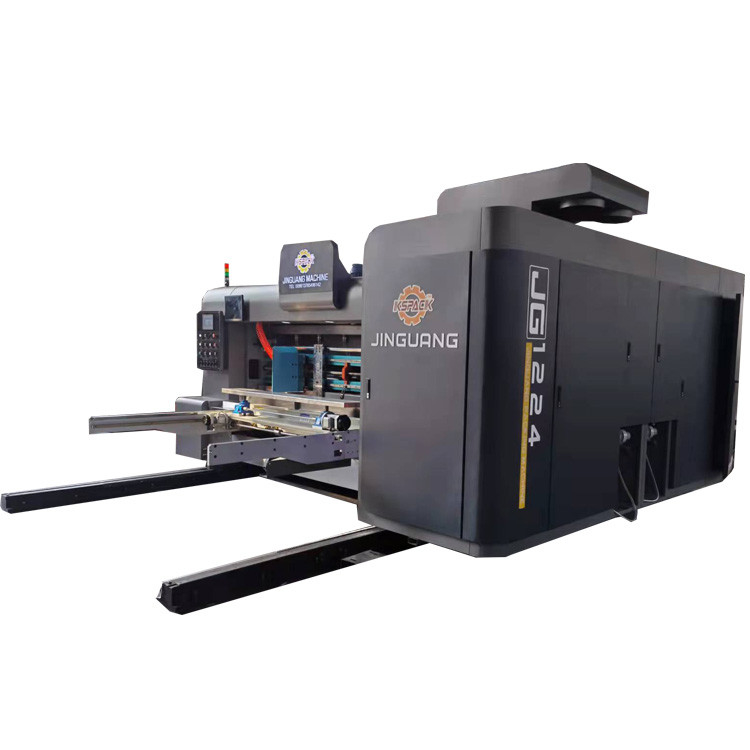

Leading Edge Feeder Corrugated Box Printing Machine 160pcs/Min
Product Details
Flexo Printer Slotter Machine 160pcs/min
,Edge Feeder Flexo Printer Slotter Machine
,flexo printer slotter 160pcs/Min
Leading Edge Feeder Corrugated Box Printing Machine 160pcs/Min
Corrugated Box Printing Machine Use And Characteristics:
This machine can multi color print,separate,slice,mark and groove,dased on same kind of production ,Being pnumatically ink-feed,the ink roller can sepaprate with block automatically as process need.The printing rolling adopts 360 all new design for adjusting phase functions.It has some characteristics,for example,novel appearance,tightly packed construction,printing with high clarity,minum over printing tolerance,adjusting easy,high efficiency,long service life,and is a saticefied and advanced equipment in printing industry.
Corrugated Box Printing Machine Feeding Unit for corrugated
carton making machine
1.Light pressure edge -leader feeding
system- reduce 60% frction between
paperboard and the platform,avoiding
damaging the corrugated and avoiding
pressing to tin
2.Vaccum assorption- warping paperboard is also no problem ,air volum and air speed is adjustable
3.Fully automatic feeder - makes machine with high speed
4.With dust remove device
Corrugated Box Printing Machine Printing Unit for corrugated carton making machine
1.Printing unit function :Muti printing,we can do as you request
2.Printing plate hanging type , easy to operation
3.1color,2color,3color,4color,5 color optional
4.Waterink and gear lubricating oil recycle
5.Ceramic roller and doctor blade optional
Corrugated Box Printing Machine Die cutting with slotter knife attachment
This design slotter and die cutter combine in one unit , we can also make.
slotter and die cutter part separatly.
1.die cutter part for special box making, just install the mould,you can make any design box you want.
2. Slotter part for standard box making, size can be adjustable.
Corrugated Box Printing Machine Technical Parameter:
|
Model |
KYG-S Series High Speed Printer Slotter Die Cutter |
|
Printer color |
Multi color |
|
Machine size |
Wall board to wall board size 2000/2200/2400/2600/2800/3000MM |
|
Machine design speed |
180 pcs /min |
|
Work speed |
150 pcs /min |
|
Machine wall board size(mm) |
50 |
|
Gera thickness (mm) |
50 |
|
Max passing paper size(mm) |
1200 X(1800/2000/2200/2400/2600/2800MM) for 408 diameter 1450X(1800/2000/2200/2400/2600/2800MM) for 480 diameter
|
|
Min paper passing size(mm) |
380X860mm( for 408 diameter) 420x860mm(for 480diameter )
|
|
Skip paper size (mm) |
1350X(1800/2000/2200/2400/2600/2800MM) for 408 diameter
1600X(1800/2000/2200/2400/2600/2800MM) for 480 diameter |
|
Max print size(mm) |
1200/1400X(1600/1800/2000/2200/2400/2600MM) |
|
Thickness of the plate(mm) |
3.2---7.2 |
|
Board thickness(mm) |
3---12 |
|
Board print accurate(mm) |
PRINT ±0.5/ SLOT OPEN ACCURATE ±1.5 |
|
Working power(km) |
30 |
|
Total power(km) |
40 |
Corrugated Box Printing Machine Our Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
-
