Corrugated Board Production Line 380V 50HZ And High Efficiency
Product Details

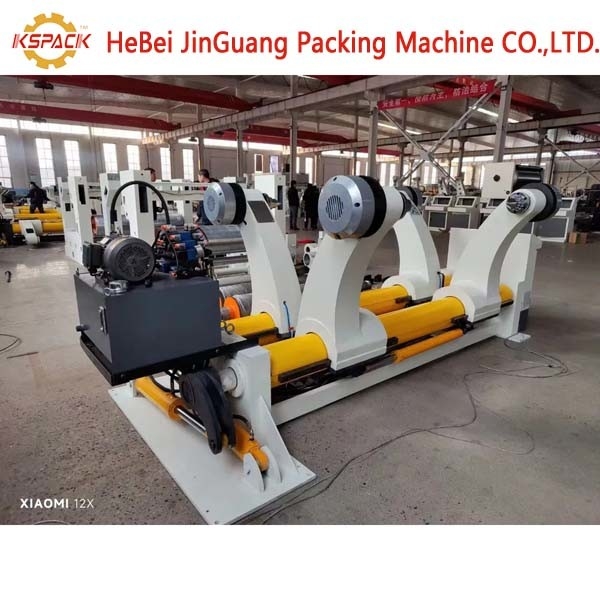

Hydraulic Shaftless Mill Roll Stand 380V
,Hydraulic Shaftless Mill Roll Stand 50HZ
,Shaftless Mill Roll Stand High Efficiency
Corrugated Board Production Line 380V 50HZ And High Efficiency
Corrugated Board Production Line Electric corrugated paper hot rolling mill stand single facer line price
|
Name of main parts |
Brands or place of origin |
Material |
|
Main shaft |
Self made |
CHANNEL STEEL |
|
Arm |
Self made |
Middel steel |
|
Wall board |
Jigang produce |
Q235A |
Corrugated Board Production Line

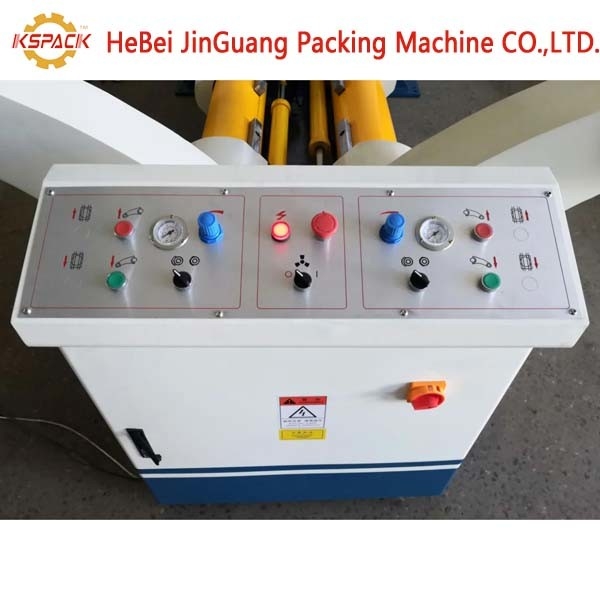

★Symmetrical structure can be installed at the same time two bundles of paper tube, can be used for non-stop machine to change the paper ★ electric o clamping, release, moving on the left and right.
★ Brake adjustment using disc plate system.
★ With two-stage automatic expansion of the paper clip, clamp head size 3 inch.
★ Hydraulic mill roll stand , single facer , sheet cutter , 3 machine working together to be made corrugated paper board.
★ Hydraulic mill roll stand also used in 3ply 5 ply 7 ply corrugated paperboard making production line.
Corrugated Board Production Line
(a)Paper stand action model : Full hydraulic model
(b)Clamp paper diameter : max 2200mm min 900mm
(c)Paper clamp diameter :max ￠1500mm
(d)Max loading weight for single side :2500KG
(e)Paper frame main shaft diameter :219mm
(f)Air compressor work pressure (Mpa):0.4-0.8mpa
(g)Machine voltage :380V 50HZ
Our Service
Free Shipping Replacement Spare You just need to pay the freight
One To One Video Teaching We Provide Operation & Maintenance cd
Our Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
-
