3 Points Corrugated Cardboard Box Folder Gluer Maching 1500w
Product Details
3 Points Box Folding And Gluing Machine
,Box Folding And Gluing Machine 1500w
,corrugated folder gluer machine 1500w
3 Points Corrugated Cardboard Box Folder Gluer Maching 1500w
Box Folder Gluer Maching Specification
|
Model |
AFG2400 |
|
Max cardboard(mm) |
900*2200 |
|
Min cardboard(mm) |
300*900 |
|
Dimensions |
11*3*1.6Meter |
|
Total weight |
6000kg |
|
Power required |
11.5kw |
|
Paperboard thickness |
3 or 5 ply |
|
Control |
PLC and touch screen |
Box Folder Gluer Maching Company Profile
AFG Series automatic folder gluer machine consist of three sections : vacuum feeding section , glue and folding section ,counter and stacker section , frequency conversion motor with quality inverter adjust speed ,PLC&TOUCH screen control system for easy operation and running stable ,average speed 150 sheets/min ,Energy conservation and high speed ,saving labor cost

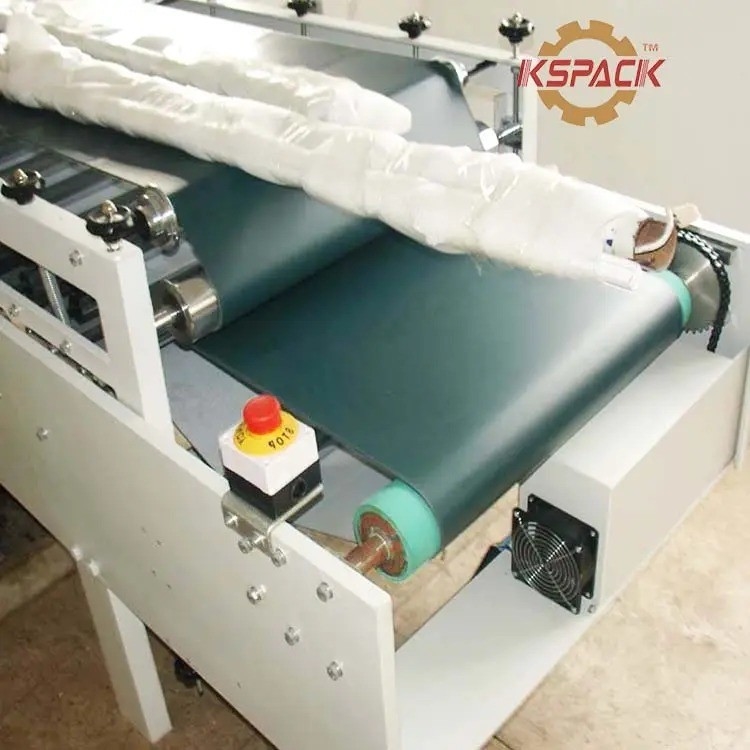

Feeding section :
1.vacuum suction feeding to feed warping paperboard easily
2. quality electromagnetic cluth and brak adopted ,feeding section controled independent ,operation easily
3. scorer wheel adjustable ,suit for 2-8mm thick paperboard
4. second creasing struction can impress again the paperboard which was not creased well
1.Simpless structure and high reliablity ,glue quantity adjustable ,cleaning easily ,
2.Stainless steel glue wheel adopted ,long life and saving glue cost ,
3.Imported quality rubber belt adopted ,automatic folding
4.With paperboard rectify device and creasing rectify device
1.Stacking and counting are simple and reliable
2.Digital control operation easily and reliable ,no stop put in date and automatic counting
3.With rectification function
4.Paperboard counting and put out by pneumatic stable and quickly
Our Company
We are a professional supplier of corrugated machinery,including automatic high speed flexo printer slotter die cutters,corrugated board production lines,Rotary die cutters, carton staplers and two ply corrugated board production lines.Along with our development,we have set up our own factories. We are now enlarging our product area to testing equipment and other kinds of packaging machinery.
FAQ
| Q | A |
| Are you the trader or manufacturer? | We are the manufacturer with export qualification |
| Do you make oem? | Yes.here can do |
| 5.where are your factory located in? | We are in dongguang town,cangzhou city,hebei,china |
| What is your business process? | Talking about clients requirements, confrim machines, make sales contract,pay for deposit,supplier arrange production,finish producing machines,buyer test machines,buyer pay for the balance payment,supplier delivery machine. |
After Sales Service
Free Shipping Replacement Spare You just need to pay the freight
One To One Video Teaching We Provide Operation & Maintenance cd
-11 years experience
-Export to more than 150 countries
-Professional international sales more than 30 persons
-Professional sale team
technical team and after-sales service team
