Automatic Thin Blade Scorer Machine Operation Manual

1. Brief introduction Corrugated cardboard thin blade slitter and scorer machine

Corrugated cardboard thin blade slitter and scorer machine widely used in carton box making machine .Thin balde slitter and scorer machine function is slitting corrguated paperboard to narrow pieces and creasing bending line for carton box making . Slitting blade and creasing wheels can be made according to customer request.

2. Corrugated cardboard thin blade slitter and scorer machine main structure

Main frame, work table, edge frame for paperboard support , crimping device, electrical control system,air pump (customer-supplied).

3.Thin blade slitter and scorer characters

• Can set the qty. of paperboard, automatic stop the feeding after finishing.
• Auto suction feeding, assured the safety of workers and decreased the working load.
• Suitable to a large scale paperboard machining.
• Electric adjusted blades

​

4.Paperboard thin blade slitter and scorer machine technical parameters for different size

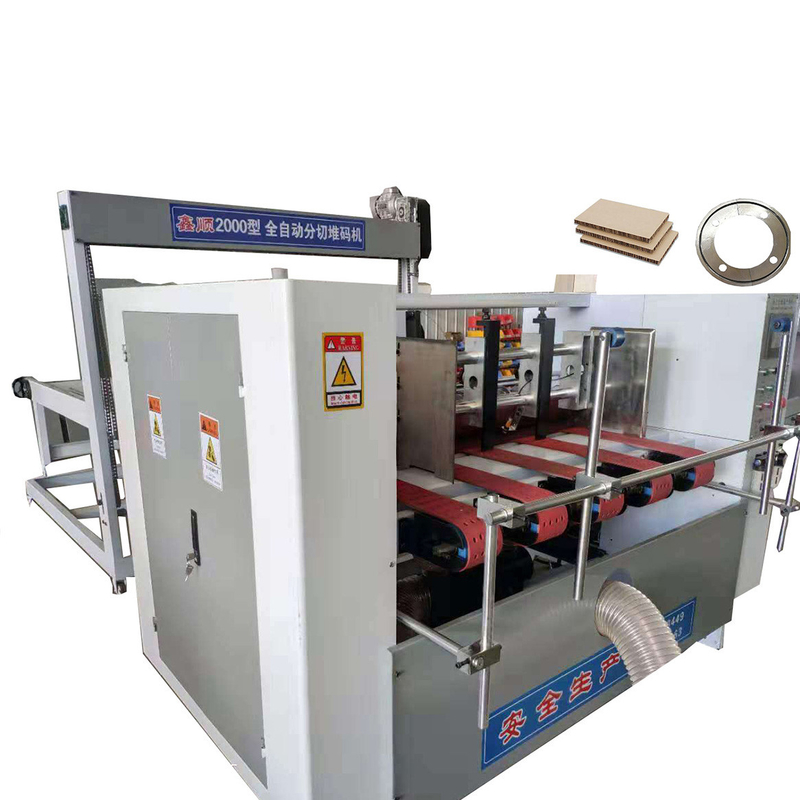

Machine pictures
