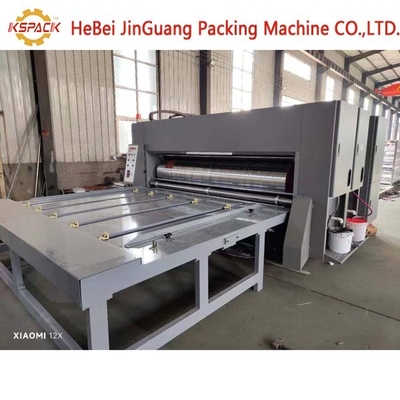

Customized 1400-3200mm Carton Printing Slotting Die Cutting Machine Rotary
-
High Light
3200mm Printing Slotting Die Cutting Machine
,3200mm rotary die cutting machine
,Customized Printing Slotting Die Cutting Machine
-
Brand NameKS
-
Warranty1.5 Yeas
-
ConditionNew
-
Video Outgoing-inspectionProvided
-
Core ComponentsGearbox, Pressure Vessel, Pump, Gear, Bearing...
-
FunctionSlotting And Creasing
-
After Warranty ServiceVideo Technical Support
-
Max Feeding WidthCustomized
-
Place of OriginCHINA
-
Brand NameKingsun
-
CertificationCE ISO
-
Model NumberKSJ
-
Minimum Order Quantity1SET
-
PriceDollar 5000USD-10000USD
-
Delivery Time5-8weeks
-
Payment TermsL/C, D/A, D/P, T/T, Western Union
-
Supply Ability1 set 40per days
Customized 1400-3200mm Carton Printing Slotting Die Cutting Machine Rotary
Corrugated Box Slotting Die Cutting Machine Combined rotary cutter creaser slotter
Product Description:
1.Rotary creaser slotter machine function:
- Cutting corner
- Opening slot
- Creasing line
For standard corrugated cardboard carton box , finsihed products pictures show as below
2. Different rotary slotter machine size
| Model number | Over the paper area(mm²) | Over the paper thickness(mm) | Working speed(pieces/min) |
| FYQ-1800 | 1800X900 | 2-11 | 0-60 |
| FYQ-2000 | 2000X900 | 2-11 | 0-60 |
| FYQ-1800 | 1800×1270 | 2-11 | 0-60 |
| FYQ-2000 | 2000×1270 | 2-11 | 0-60 |
| FYQ-2200 | 2200×1470 | 2-11 | 0-60 |
| FYQ-2600 | 2600×1470 | 2-11 | 0-60 |
| FYQ-2800 | 2800×1600 | 2-11 | 0-60 |
3. Two Kinds of Rotary creaser slotter comparison and its pictures
|
Creaser and slotter can be adjustable at the same time , when adjust slotter roller , creasing roller will move accordingly |
|
Creaser and slotter should be adjusted separatly |
4. About the product:
This series on corrugated board cent paper roll the line slice the cape open the slot machine,using toslice the tile corrugated carton smei-finished product to cape to open the slot,roll the line and slice side several works preface match to synthesize for the integral whole the sex produces the equipments.its main characteristics is a carton that single a carton handicraft feed to anticipate ,general curl carton applicably.
- Transmit gear adopt no clearance coopperation ,debase gear dajust eorr.
- Gear adopt concentrate feed oil lubricate ,debase machine noise ,prolong the use-time.
- Slot reamer plate daopt four reamers synchronization,save exchange board time .
- 360 degrees electric planet gear adjustment phase ,speedness and nicety.
Video Description:
Product pictures:
