Multi Knives Corrugated Paperboard Slitting Machine Automatic

Multi Knives Corrugated Paperboard Slitting Machine Automatic

  • High Light

    multi knives paperboard slitting machine

    ,

    corrugated paperboard slitting machine automatic

    ,

    multi knives automatic slitting machine

  • Size
    800-2000mm
  • Speed
    120times/min
  • Box Type
    Corrugated Board
  • Stacking Type
    Manual /automatic
  • Feed Model
    Automatic/manual
  • Name
    Multi Knives Corrugated Paperboard Slitting Machine Automatic
  • Place of Origin
    cangzhou
  • Brand Name
    kspack
  • Certification
    ISO,CE
  • Model Number
    KAG
  • Minimum Order Quantity
    1set
  • Price
    2000-3000usd
  • Packaging Details
    wooden case ,container
  • Delivery Time
    20days after getting deposit
  • Payment Terms
    L/C, D/P, T/T, Western Union
  • Supply Ability
    30sets/month

Multi Knives Corrugated Paperboard Slitting Machine Automatic

automatic corrugated board partition assembly slotting machine





III. Machine Operation

Choose the corrugated paperboard which you want to process, adjust the side feeding baffle (1 in Picture A) . Adjustment method : loose the screws in circle of below picture, move the two side feeding baffles (1 in Picture A) right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .



When the length of paperboard is big , can move the front feeding baffle (3 in Picture A) right or left. Adjustment method : loose the screws in circle of below picture, move the two front feeding baffles (3 in Picture A), adjust the front feeding baffles to the suitable positions according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .



Adjust the back feeding baffle (2 in Picture A) , adjustment method : loose the screws in circle of below picture , move the two back feeding baffles (2 in Picture A) forwards or backwards , adjust the suitable positions according to the width of paperboard , after finishing adjustment , tight the screw and fix the baffles .

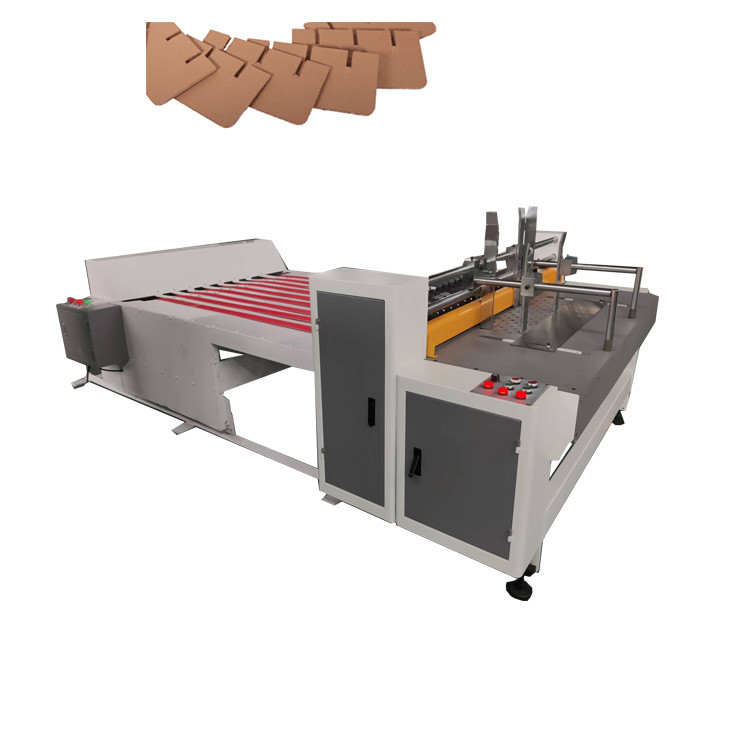

Multi Knives Corrugated Paperboard Slitting Machine Automatic 0
