2600mm Chain Feeder Manual Corrugated Paper Cutting Machine Semi Auto

2600mm Chain Feeder Manual Corrugated Paper Cutting Machine Semi Auto

  • High Light

    manual corrugated paper cutting machine


    chain feeder corrugated paper cutting machine


    2600mm corrugated box die cutting machine

  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas,Field Installation,Free Spare Parts,Online Support,commissioning And Training
  • Warranty
    1 Year
  • Computerized
  • Packaging Material
  • Voltage
    380V(or Customization) Any 3 Phase Voltage
  • Condition
  • Delivery Time
  • Delivery Port
    Tianjin Port
  • Language
  • Product Name
    Chain Feeder Rotary Die-cutting Machine
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    plastic ,Iron frame,wooden box
  • Delivery Time
  • Payment Terms
    T/T, L/C
  • Supply Ability
    4sets per month

2600mm Chain Feeder Manual Corrugated Paper Cutting Machine Semi Auto

Semi Auto chain feeder manual corrugated box rotary die cutting pizza box makin machine

Machine model: CQJ 3150mm*1600mm(Many other size can choose  the length:1350/1600/1800mm

width: 1800/2000/2200/2400/2600/2800/3000mm)

Maximum die cutting: 3100mm*1580mm

Minimum die cutting: 350mm*350mm

Wallboard inner diameter: 3350mm

Machine weight: 7.5T

Motor power: 15KW

Cardboard thickness: 2-11mm

Working speed:65pcs/min

Diameter of the upper roller: 434.2mm

Diameter of the lower roller: 488mm

Main configuration:

Paper feeding department:

1. Manual chain feeding, grooving, corner cutting, indentation and perforation can be completed at one time.

2. The paper feeding speed is 4000 sheets per hour, and the die-cutting accuracy is ±1mm.

3. Electric adjustment of phase, quick adjustment at start and stop.

4. The electroplated paper feeding wheel feeds paper to prevent the cardboard from being crushed and increase the accuracy of paper feeding.

5. The chain rail is made of high-strength engineering plastics, with low noise and durability.

Electrical Department:

1. The main motor is frequency-converted and adjusted to save power.

2. The front and rear control panels are concise and centralized and easy to operate.

3. The whole machine is controlled by a joint control system of light, electricity and gas.

4. The electrical accessories of the whole machine are all products of famous brand manufacturers.

Die cutting department:

1. The die-cutting roller is made of high-quality steel, with a wall thickness of 30mm, balance correction, and hard chrome plating.

2. The wall panel is made of high-quality cast iron with a wall thickness of 50mm and is made by a large machining center.

3. The soft roller automatic grinding mechanism improves the reusable rate of the rubber sleeve, which can be ground 3-4 times.

4. The line speed automatic compensation ensures that the die-cutting size of each batch of cartons is exactly the same.

5. Imported polyurethane soft-cut rubber sleeve, easy to install, die-cutting 12 million times.

6. The cam-type soft roller moves horizontally by 40mm from left to right, and the rubber pad wears evenly.

7. The lubrication system is oil-immersed lubrication, which is simple and efficient.

Parts list
Name Quantity Name Quantity
pliers 1 piece 12 inch wrench 1 item
Rubber Tools 1 item Oil pot 1 item
Template tool 1 item Grease gun 1 item
Screwdriver 2 pieces Inner Hexagonal Wrench 1 set
Countersunk screw (10×30) 80 pieces

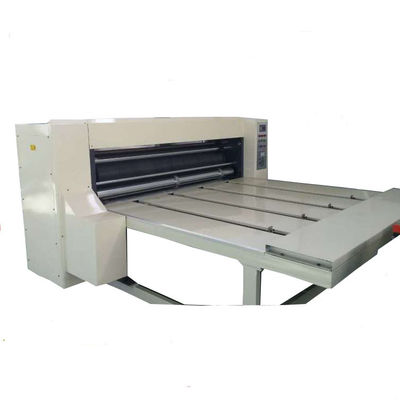

2600mm Chain Feeder Manual Corrugated Paper Cutting Machine Semi Auto 02600mm Chain Feeder Manual Corrugated Paper Cutting Machine Semi Auto 1
Machine videos :
