Slotter Die Cutter 2mm Plc Multi Color Flexo Printing Machine

Slotter Die Cutter 2mm Plc Multi Color Flexo Printing Machine

  • High Light

    plc multi color flexo printing machine

    ,

    2mm multi color flexo printing machine

    ,

    multicolor flexo printing machine

  • Name
    Pizza Box Diecutter Machinery
  • Speed
    100-200pieces/min
  • Voltage
    220/380/400V
  • Machinename
    Automatic Flexo Printer Slotter Die Cutter
  • Color
    1-5colors
  • Keyword1
    Automatic Flexo Printer Slotter Die Cutter
  • Warranty
    2 Years
  • Printer Roller
    Steel Print Roller
  • Paperboard Thickness
    2-12mm
  • PLC
    Ys
  • Place of Origin
    cangzhou
  • Brand Name
    kspack
  • Certification
    ISO ,CE
  • Model Number
    JGY
  • Minimum Order Quantity
    1set
  • Price
    12500-65000usd/set
  • Packaging Details
    wooden case,film ,container
  • Delivery Time
    30-60days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    20sets per month

Slotter Die Cutter 2mm Plc Multi Color Flexo Printing Machine

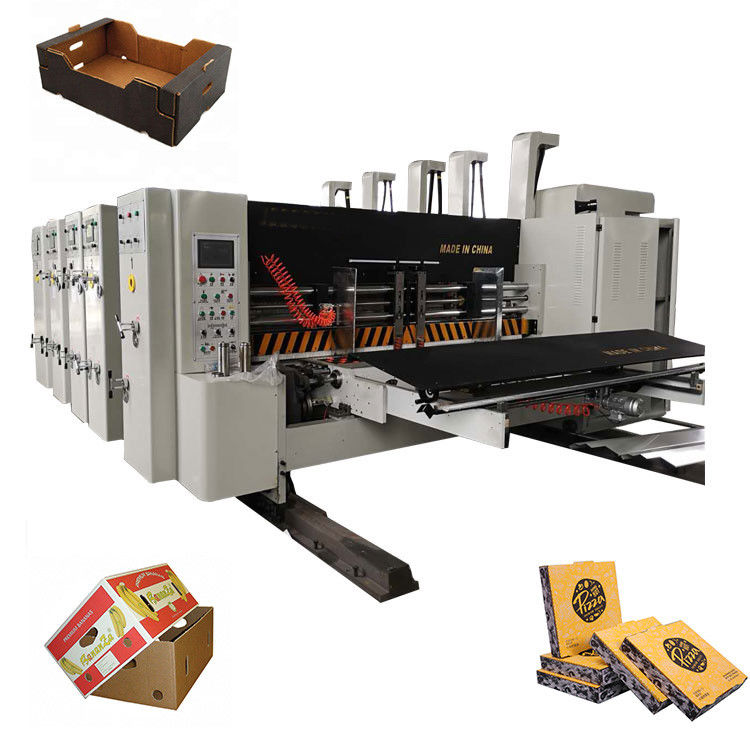

Automatic Flexo Printer Slotter Die Cutter Pizza Box Diecutter Machinery



1. The machine clutch:

1) the machine clutch electric control with alarm, moving last warning bell ring, Ensure workers safety.

2) Pneumatic interlocking device

2. Lead Feeder paper system

1) the suction feeder paper,fan 7.5 kw, at different levels can be bent according to the board, air volume adjustment, ensure feeding smoothly.

2) Carry paper,fall paper adopt cylinder push, move quick and powerful. 3)Side panel for manual adjustment, front and back panel are manual adjustment.

4) Taiwan super resistance to lead feeding wheel, Perishable Wear Resistant. 5)skip feeding paper device,( can choose according to need continuous or skip feeder paper).



MNACHINE SIZE

WALL BOARD TO WALL BOARD SIZE

2000/2200/2400/2600/2800/3000MM

MACHINE DESIGN SPEED DESIGN SPEED 150PCS /MIN
WORK SPEED 80-120PCS /MIN
MACHINE WALL BOARD SIZE(mm) 50
GERA THICKNESS (mm) 50
MAX PASSING PAPER SIZE(mm)

1200 X(1800/2000/2200/2400/2600/2800MM) for 408

diameter 1450X(1800/2000/2200/2400/2600/2800MM) for 480

diameter

MIN PAPER PASSING SIZE (mm)

420x860mm(for 480diameter )

380X860MM( for 408 diameter)

SKIP PAEER SIZE (mm)

1350X(1800/2000/2200/2400/2600/2800MM) for 408

diameter



1600X(1800/2000/2200/2400/2600/2800MM) for 480

diameter

MAX PRINT SIZE (mm) 1200/1400X(1600/1800/2000/2200/2400/2600MM)
THINKCNESS OF THE PLATE (mm) 3.2---7.2
BOARD THICKNESS (mm) 3---12
BOARD PRINT ACCURATE (mm) PRINT ±0.5/ SLOT OPEN ACCURATE ±1.5
生产时功率(km)working power 30KW
总功率(km)total power 40KW
