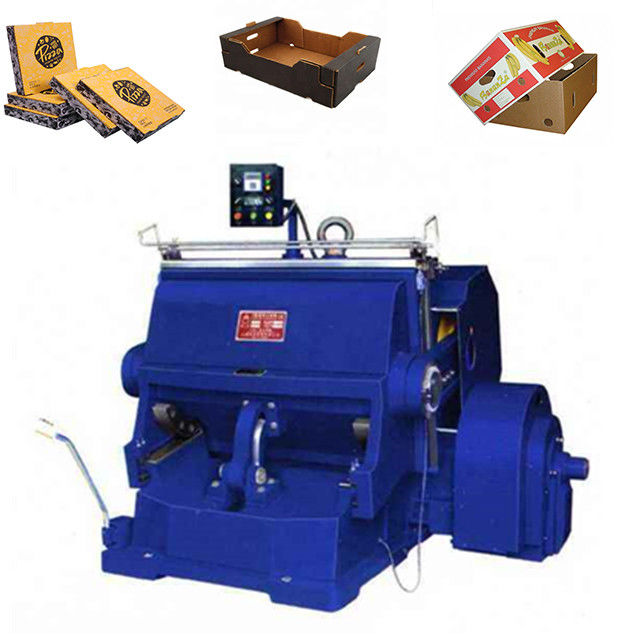

Automatic Feed Corrugated Carton Pizza Box Making Die Cutting Machine
atuomatic feed ML diecutter machine ,make every size cardboard box ,corrugated boxes
change the national manual feeding
This automatic die cutting machine manipulator equipment was continuously developed by the scientific and technical personnel of our company through repeated tests.The product is simple in structure, low in cost, fast in operation, convenient in operation, saves labor costs and delivers paper accurately.Make the carton put very little money to have the configuration and function of automatic flattening die cutting machine. The advent of the boxing machine manipulator makes the ordinary carton machine has the automatic feeding performance of the high speed machine, and is the ideal feeding mechanism for the carton machine.
| Model |
Max,Rule Area |
Workingspeed |
Molor |
weight |
Overall Dimensions(L×W×H) |
| PYQ401C | 750×520mm | 28±2(strokes/min) | 2.2kw | 2000kg | 1260×1350×1280mm |
| PYQ203D | 930×670mm | 23±2(strokes/min) | 4.0kw | 3000kg | 1670×1670×1630mm |
| ML1100 | 1100×800mm | 20±2(strokes/min) | 5.5kw | 4500kg | 1900×1800×1700mm |
| ML1200 | 1200×830mm | 20±2(strokes/min) | 5.5kw | 4800kg | 1900×2000×1700mm |
| ML1300 | 1300×920mm | 18±2(strokes/min) | 5.5kw | 5500kg | 2000×2400×1800mm |
| ML1400 | 1400×1000mm | 18±2(strokes/min) | 5.5kw | 6000kg | 2400*2000*1800mm |
| ML1500 | 1500×1050mm | 18±2(strokes/min) | 5.5kw | 7000kg | 2000×2500×1930mm |
| ML1600 | 1600×1250mm | 16±2(strokes/min) | 11kw | 11000kg | 2170×2560×2230mm |
| ML1800 | 1800×1300mm | 16±2(strokes/min) | 15kw | 13500kg | 2240×2800×2130mm |
Our products are sold all over the world, you can rest assured.
