Manual Feeding Rotary Slotter Machine For Corrguated Carton Box

Manual Feeding Rotary Slotter Machine For Corrguated Carton Box

  • High Light

    Manual Feeding Rotary Slotter Machine

    ,

    Corrguated Rotary Slotter Machine

    ,

    Carton Box Rotary Slotter Machine

  • Machine Name
    Manual Slotter Machine
  • Machine Function
    For Standard Box Making
  • Slotter Function
    Slotter , Creasing Line , Cut Corner
  • Knife Adjustment
    Manual
  • Adjust Type
    Knife And Creasing Line Adjust At The Same Time
  • Machine Color
    Customized
  • Machine Voltage
    380V/220V
  • Machine Speed
    50-60pcs Per Min
  • Place of Origin
    Hebei , China
  • Brand Name
    KS1200*2400
  • Certification
    CE ,ISO
  • Model Number
    KS 1200
  • Minimum Order Quantity
    1Set
  • Price
    6500USD
  • Packaging Details
    machine packed in wooden case package
  • Delivery Time
    2 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30sets per month

Manual Feeding Rotary Slotter Machine For Corrguated Carton Box

Manual feeding slotting machine rotary slotter machine for corrguated carton box making





orrugated carton box machine function and description



Cut the corrugated cardboard, cut the groove, roll the line, cut the edge



Corrugated carton box machine is a comprehensive production equipment that combines several steps of corrugated cardboard blank cutting, slotting, rolling line and edge cutting. Its main feature is the manual feeding of single cardboard, which is generally used for warped cardboard. The Corrugated cardboard rotary slotting machine has a compact structure, stable operation and long service life .



punching and buttoning devices are optional for corrugated cardboard rotary slotting machine



Corrugated carton box machine main features

Synchronous adjustment knife: The slotted cutter head adopts four-knife manual linkage adjustment, which is easy to use in one step, easy to use and quick to adjust. (can be customized electric)



Manual phase: The chamfered slotted seat can be 360° positive, reverse, axially adjusted, equipped with a manual rocker, easy to adjust, and the locking is reliable and the slotting is accurate. This adjustment function is compact and durable.



Electric phase: The slotted tool holder is more 360°, reverse adjustment, and the click fine adjustment device is convenient to operate, saves time and labor, and the locking is reliable and the slotting is accurate.



Adjustment method: the worm and worm are used to adjust the pressure, which is simple and self-locking.



Manual type chain feeding slotting machine technical parameters



Model number

Over the paper area(mm²)

Over the paper thickness(mm)

Working speed(pieces/min)

KS-1800

1800X900

2-11

0-60

KS-2000

2000X900

2-11

0-60

KS-1800

1800×1270

2-11

0-60

KS-2000

2000×1270

2-11

0-60

KS-2200

2200×1470

2-11

0-60

KS-2500

2500×1470

2-11

0-60

KS-2800

2800×1600

2-11

0-60

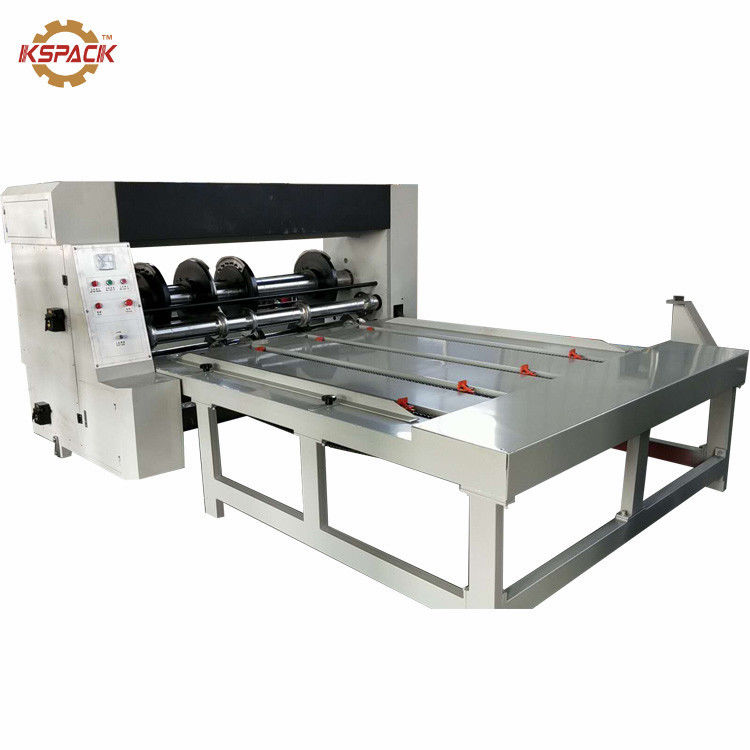

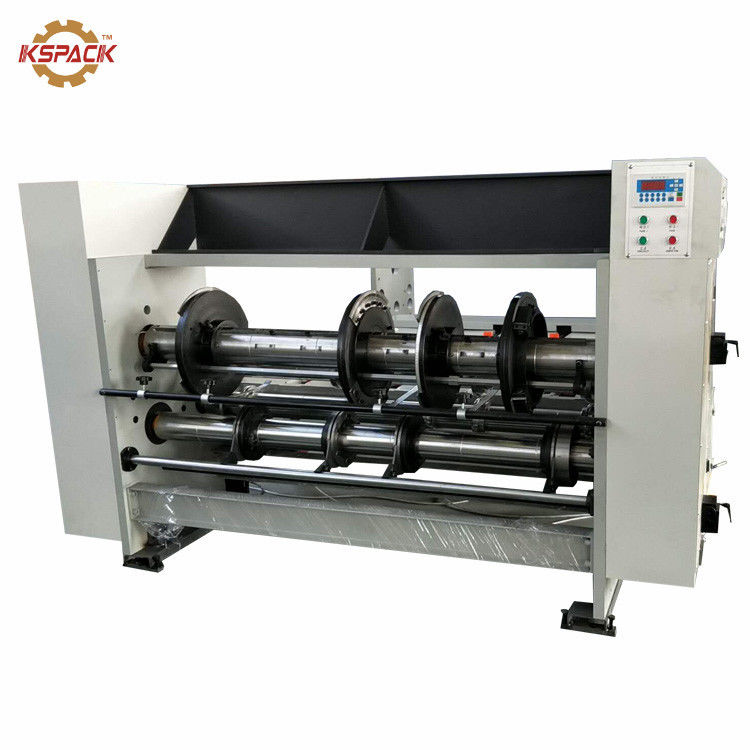

Manual type chain feeding slotting machine pictures

Manual Feeding Rotary Slotter Machine For Corrguated Carton Box 0

Manual Feeding Rotary Slotter Machine For Corrguated Carton Box 1
