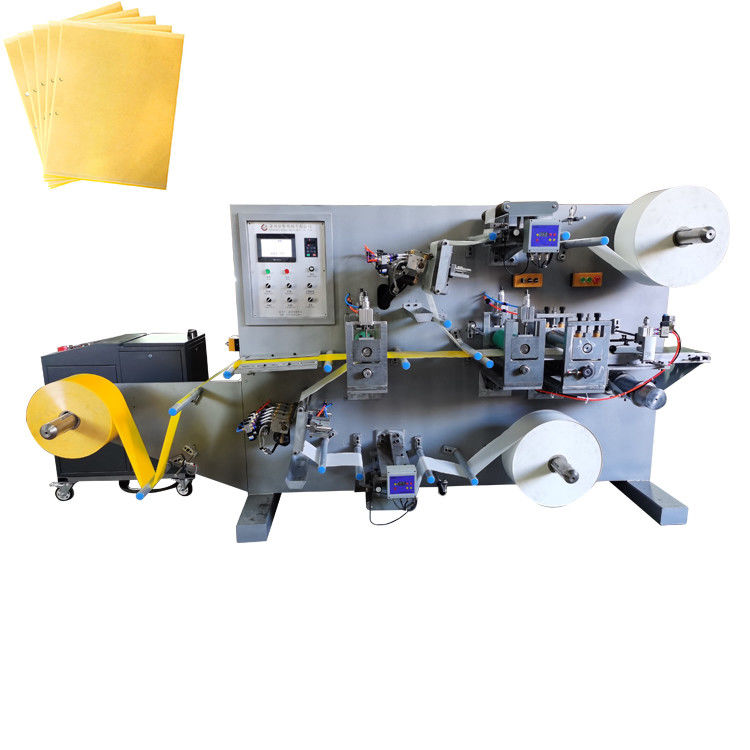

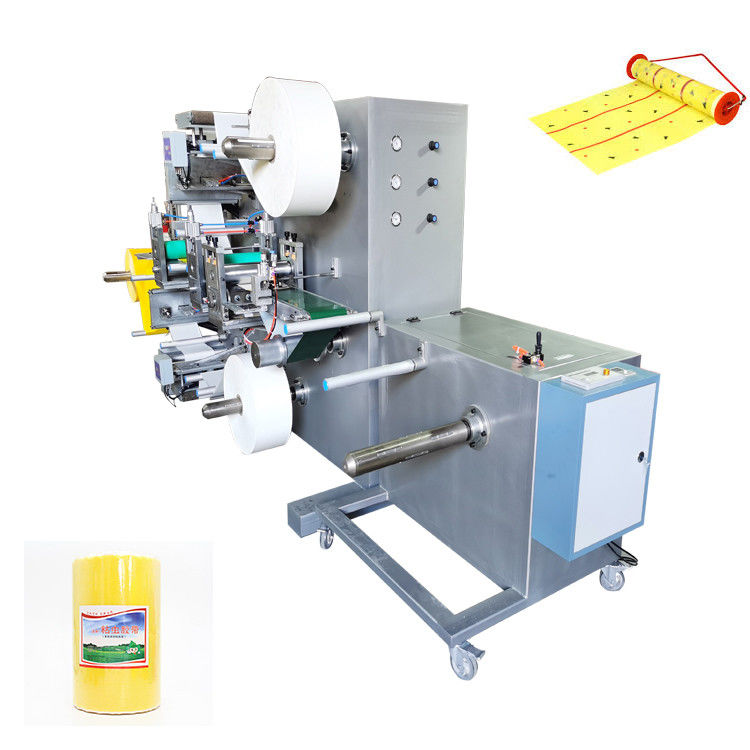

HG 898N+45KG HOT MELT INSECT/FLY TRAP DOUBLE SIDES COAT GLUE MACHINE
The sticky insect board machine manufactured by our company is a special equipment for producing sticky insect board. Glue compounding, slitting, punching, and counting can be done all at once on this equipment. This equipment is easy and convenient to operate, it is a high-speed, efficient and stable equipment.
2. Working principle
One roll of base material and two rolls of release paper are respectively installed on the material roll of the machine, pass through the transition wheel of the machine in turn, and the main drive rubber wheel reaches the cutter. Two sets of reverse-drawing glue guns apply glue on the release paper or the silicone oil surface of the release film at the same time, and at the same time fit the substrate, the cutter will cut it into single sheets according to the set length, and then punch through the punching device Finish the finished product.
FINAL PRODUCTS OF MACHINE:
