Corrugated Cardboard Box Die Cutting Sotting Machine 7.5kw Power PLC Control

Corrugated Cardboard Box Die Cutting Sotting Machine 7.5kw Power PLC Control

  • High Light

    high speed flexographic printing machine

    ,

    carton box making machine

  • Machine Name

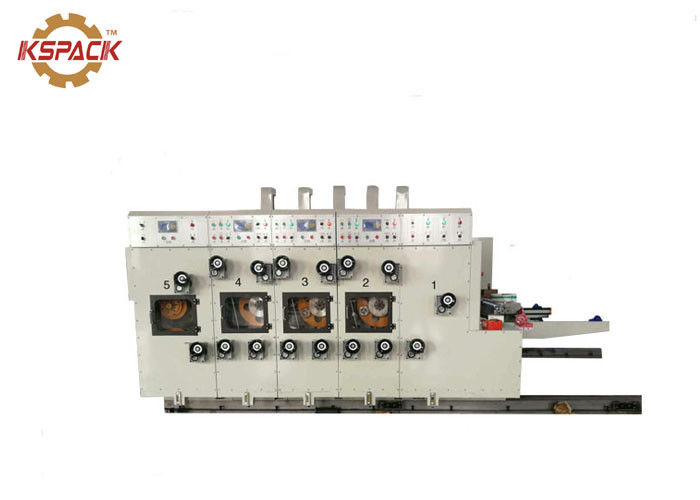

    KYG-1400 Type Flexo Printing Corrugated Cardboard Box Printing Die Cutting Sotting Machine
  • Weight
    3T
  • Size
    1800mm
  • Voltage
    220V
  • Feature
    PLC Control
  • Power
    7.5kw
  • Place of Origin
    China
  • Brand Name
    Kingsun
  • Certification
    CE
  • Model Number
    KSJ
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiate
  • Packaging Details
    Packing them in plastic wrap before putting them in wooden cases
  • Delivery Time
    20 work days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    5 set 40per days

Corrugated Cardboard Box Die Cutting Sotting Machine 7.5kw Power PLC Control

KYG-1400 Type Flexo Printing Corrugated Cardboard Box Printing Die Cutting Sotting Machine



【1】 electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers.
【2】 drive shaft with friction clutch, to avoid misuse and damage to the machine.
【3】 pneumatic interlock device.
【4】 The host motor starts the protection device. (The machine is not locked, the host can not start running)
2 . leading edge roller type feeding system
【1】 suction auxiliary feeding paper fan 7.5KW, according to the different bending conditions of cardboard, air volume adjustment,
To ensure smooth paper supply. Use the brush to remove the cardboard surface
Dust, scraps of paper and other debris, improve the printing quality.
[2] slotted with a chain control switch, control emergency stop paper.
【3】 The paper lift and down adopt the air cylinder ,the action quickly, effort.
[4] the use of Shandong "Komori" front edge roller feed system, simple operation, high precision. The amount of extension can be adjusted, raw
Strong adaptability. Speed transmission more stable, suitable for warping, thin cardboard transmission, the effect is obvious.
【5】 side baffle, rear box position by the screw electric adjustment; front baffle upper and lower gap position manually synchronized adjustment.
【6】 skip feeding device (according to the need to choose continued or sheet feeding).
【7】 PLC control, man-machine interface, menu storage, printing plate correction, printing speed, quantity, time and the Department operation

1 printing roll (plate roll)
【1】 diameter of ¢ 330 mm
[2] high-quality steel surface grinding, axial reference scale, hard chrome plating.
[3] to do the balance correction, smooth operation, to adapt to high-speed operation.
【4】 ratchet fixed scroll plate, with hanging plate ditch, to adapt to the rapid version of the installation convenient and quick.
【5】 full version of hanging slot, for 10 mm hanging version of the article.
【6】 loading and unloading printing plate, foot switch electric control is reversing.
【7】 printing roller axial manual traverse, the maximum movement of 10mm.
2 printing press roll
【1】 diameter of ¢ 155 mm.
[2] the use of high-quality seamless steel pipe surface grinding, dynamic balance correction, smooth operation, hard chrome plating
【3】 printing pressure roller cross slider-type dial to manually adjust the adjustment range of 0 to 12 mm. Adjustment does not affect Gear clearance to ensure transmission accuracy.
3 Feed the upper and lower rollers
【1】 on the roll: diameter ¢ 71 mm seamless steel pipe, with three paper feed ring.
【2】 the next roll: diameter ¢ 134.6mm seamless steel pipe, surface grinding, hard chrome plated
【3】 feeding roller cross slider-type dial dial manually adjust the adjustment range of 0 ~ 12 mm. Adjustment does not affect teeth Wheel clearance, to ensure transmission accuracy.
4. steel anilox roller rubber roller set ink system
[1] diameter of ¢ 176mm.
【2】steel surface grinding, repression reticulate, hard chrome plating.
[3] alance correction, smooth operation.
【4】mesh number is 180,200,220,250 lines / inch selection. Option ceramic roller 300line/inch
【5】 with the feed system pneumatic automatic lifting device. (When feed paper pr the anilox roller is lowered and touched with print plate ,stop feed paper
anilox roll is up and the plate is separated)
【6】 Anilox roller with wedge-type clutch, even ink, easy to clean ink.
【7】 rubber roller diameter ¢ 186 mm.option the doctor blade system
【8】 steel pipe surface wrapped with wear-resistant rubber, and do the balance correction.
【9】 rubber in the special high grinding, ink transfer effect is good. Quick clearance fine-tuning self-locking device to ensure uniform ink. The amount of uniform ink system, the conversion effect is good, to extend the life of rubber roller.



Name of parameter KSJ-900 KSJ-1200 KSJ-1400
Color Group Everything can be quipped according to users’ needs
Printing Paper A,B,C,A/B,B/C and A/B/C Corrugated Cardboard(Maximum gap 11mm)
Production Speed 180 Pieces/min 170 Pieces/min 160 Pieces/min
Economic Speed 170 Pieces/min 160 Pieces/min 150 Pieces/min
Max.Paper Sizes

900x1800/2000

2200/2400/2600mm

1200x1800/2000

2200/2400/2600mm

1400x1800/2000

2200/2400/2600mm

Min.Paper Sizes

Positive knife

Negative knife



300x640mm

300x720mm



350x720mm

350x740mm



400x720mm

400x740mm

Max.Printing Sizes

900x1600/1800

2000/2200/2400mm

1200x1600/1800

2000/2200/2400mm

1400x1600/1800

2000/2200/2400mm

Max.Die-cutting Size

900x1700/1900

2100/2300/2500mm

1200x1700/1900

2100/2300/2500mm

1400x1700/1900

2100/2300/2500mm

Standard Printing Plate Thickness 7.2mm
Slot Width x Max.depth

7mmx220mm 7mmx300mm 7mmx350mm

(Number of blade and slot depth may be added)

Min.Slot Space

Positive knife

Negative knife



150*150*150*150mm

250*90*250*90mm



170*170*170*170mm

260*90*260*90mm



170*170*170*170mm

260*90*260*90mm

Printing Roller Dia 300mm 408mm 480mm


Corrugated Cardboard Box Die Cutting Sotting Machine 7.5kw Power PLC Control 0
