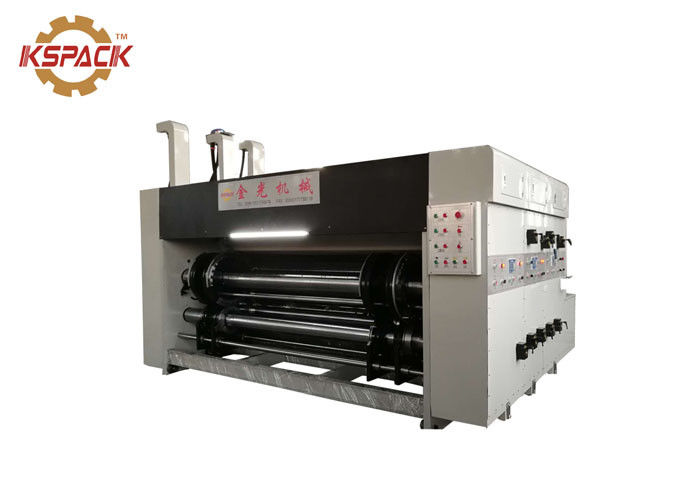

Automatic Multicolor Flexo Printing Cardboard Corrugated Box Making Machine 7.5kw
Printing department
Printing roller
1) the outer diameter :400mm,
2) the steel tube surface grinding , hard chrome plating.
3) do balance correction, steady operation.
4) ratchet fixed volume edition axis.
5)full Plate Hanging plate slot, suitable for 9 mm plate of the article.
6) loading and unloading of the print plate , pedal switch of electric control forward and reversing.
2.The printing press roller
1) the outer diameter :156 mm.
2) the steel tube surface grinding , hard chrome plating.
3) do balance correction, steady operation.
4)the printing press roller gap dial manual adjustment,
adjustment range 0-12 mm .
3. Feeder paper up and down roller .
1) up roller, the outer diameter of:86 mm, thick wall steel pipe, with four feeder paper roller.
2)down roller,the outer diameter: 156 mm, thick wall steel
pipe, surface grinding, hard chromium plating.
3) paper roller gap dial manual adjustment, adjustment range
0-12 mm.
4.Steel anilox roller:
1) the outer diameter : 176 mm (mesh number: 200, 220
240, 220). (mesh optional)
2) steel pipe surface grinding, suppress anilox, hard chromium plating.
3) do balance correction, smooth and steady operation, lattice point is consistent, uniform inking.
4) anilox roller wedge type overrunning clutch, distributing, wash ink is convenient swift.
5) Anilox gap dial manually adjust.
5. Ceramic anilox roller (optional)
1) outside diameter is :176 mm.
2) steel tube surface coating ceramic grinding, laser engravinganilox.
3) anilox mesh for 260, 280, 320, 280. (mesh optional)
4) than steel anilox roller printing meticulously, wear-resisting, long service life.
6. Rubber roller:
1)Outer diameter is : 164 mm.
2) steel pipe surface parcel wear-resisting rubber, and do correction balance.
3) rubber middle high is the special grinding, ink transfer effect is good.
4) rubber hardness is: 60-65 degrees.
7. Phase adjustment mechanism:
1) planetary gear structure.
2) printing phase electric digital 360 degrees adjustment (motion and stop all can be adjusted).
3) manually adjust the horizontal position, adjust the distance ±10 mm. (optional electric adjustment, the computer control).
8. Ink circulation
1) pneumatic diaphragm pump, ink stability, convenient operation and maintenance.
2) ink filter, filtering impurities.
9. Printing phase fixing device
1) cylinder type brake 9, printing phase fixing device.
2) when the machine separate adjustment phase, the brake institutions limit the machine running, keeping the original gear fixed point position.
10. Ink device:
1) mechanical oil pump (double oil pump , oil supply loop)
2) circulation oil, gear inking amount evenly, each group of oil level balance.
Paramater:
Name of parameter | KSJ-900 | KSJ-1200 | KSJ-1400 | |
Color Group | Everything can be quipped according to users’ needs | |||
Printing Paper | A,B,C,A/B,B/C and A/B/C Corrugated Cardboard(Maximum gap 11mm) | |||
Production Speed | 180 Pieces/min | 170 Pieces/min | 160 Pieces/min | |
Economic Speed | 170 Pieces/min | 160 Pieces/min | 150 Pieces/min | |
Max.Paper Sizes |
900x1800/2000 2200/2400/2600mm |
1200x1800/2000 2200/2400/2600mm |
1400x1800/2000 2200/2400/2600mm |
|
Min.Paper Sizes Positive knife Negative knife |
300x640mm 300x720mm |
350x720mm 350x740mm |
400x720mm 400x740mm |
|
Max.Printing Sizes |
900x1600/1800 2000/2200/2400mm |
1200x1600/1800 2000/2200/2400mm |
1400x1600/1800 2000/2200/2400mm |
|
Max.Die-cutting Size |
900x1700/1900 2100/2300/2500mm |
1200x1700/1900 2100/2300/2500mm |
1400x1700/1900 2100/2300/2500mm |
|
Standard Printing Plate Thickness | 7.2mm | |||
Slot Width x Max.depth |
7mmx220mm 7mmx300mm 7mmx350mm (Number of blade and slot depth may be added) |
|||
Min.Slot Space Positive knife Negative knife |
150*150*150*150mm 250*90*250*90mm |
170*170*170*170mm 260*90*260*90mm |
170*170*170*170mm 260*90*260*90mm |
|
Printing Roller Dia | 300mm | 408mm | 480mm |
