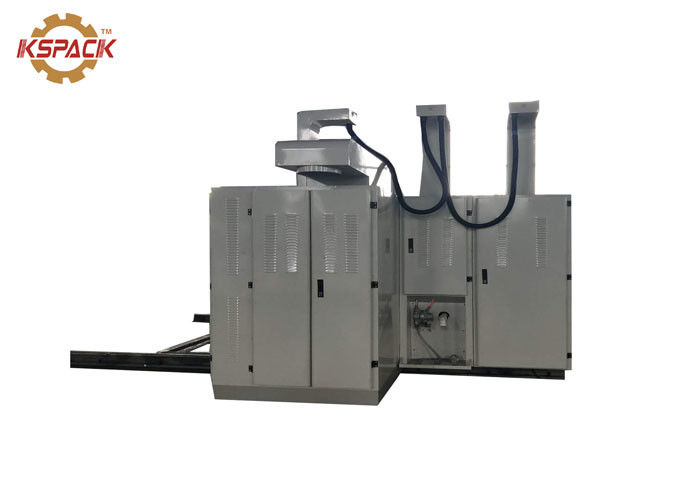

KSJ-1800 Type Auto Carton Corrugated Cardboard Box Printing Slotting Machine
Slotter part:
operational contaol
Electric adjust slotter gap,slotting phase and box size
B, Has the scram bottom and whole machine run device,ensure operate safely
C,Has the control feed paper and stop paper device,easy operation,save the paper waste
● slotting phase and case height adjust
A. Use high precision planet type gear confirguration, make slotting roller 360 degree positive and negative adjustment ,case height adjust,short time,high precision
B. According to zero switching,slotting blade become zero position,convient change the order,save changing oder time,reduce paperboard waste
● pressing line wheel
A. Pressing line wheel adopt high quality seamless pipe,grinded face and chrome plate
B, Automatic balance,run reliable,adapt high speed run
C, Pressing line wheel adopt flatten form,good pressing line qulaity
● Slotter blade base
A, Slotter blade thickness 7mm.9SiCr high quality alloy steel with heat treatment,high hardness,wear-resistance
B, 9SiCr high quality alloy steel slitter knife,wear-resisting
C, Slotter blade base,pressing line wheel ,can be adjusted by electric,encoder control,screen can control and show the size
D, Slotter upper and down axis wall thickness >22mm,ensure using machine reliable
Stacker part:
A. Ppaer-receiving arm can be operated by hand,the height can be adjusted as per your need
B, Paper-receiving arm belt can be adjusted single
C, Receiving -paper platform up and down can be adjusted by chain
D, Receiving-paper platform can be adjusted slope according to paperboard height,lifting motor with electric brake function,platform can be fixed
E, Stacking paper platform,when reach the fixes height,then will be fished up
F, paperboard piled height 1850mm
G, Belt motor 2.2KW (adjust speed control) 1set
H, up and down motor 3KW 1 set
I, Receicing paper arm cylinder ф80×300
J. This system setting 5.5m ,has the receiving paper part,transimmission paper part,stacking paper part,use the friction belt transfer paperboard
Paramater:
| Name of parameter |
KSJ-900 |
KSJ-1200 |
KSJ-1400 |
| Color Group |
Everything can be quipped according to users’ needs |
| Printing Paper |
A,B,C,A/B,B/C and A/B/C Corrugated Cardboard(Maximum gap 11mm) |
| Production Speed |
180 Pieces/min |
170 Pieces/min |
160 Pieces/min |
| Economic Speed |
170 Pieces/min |
160 Pieces/min |
150 Pieces/min |
| Max.Paper Sizes |
900x1800/2000
2200/2400/2600mm
|
1200x1800/2000
2200/2400/2600mm
|
1400x1800/2000
2200/2400/2600mm
|
|
Min.Paper Sizes
Positive knife
Negative knife
|
300x640mm
300x720mm
|
350x720mm
350x740mm
|
400x720mm
400x740mm
|
| Max.Printing Sizes |
900x1600/1800
2000/2200/2400mm
|
1200x1600/1800
2000/2200/2400mm
|
1400x1600/1800
2000/2200/2400mm
|
| Max.Die-cutting Size |
900x1700/1900
2100/2300/2500mm
|
1200x1700/1900
2100/2300/2500mm
|
1400x1700/1900
2100/2300/2500mm
|
| Standard Printing Plate Thickness |
7.2mm |
| Slot Width x Max.depth |
7mmx220mm 7mmx300mm 7mmx350mm
(Number of blade and slot depth may be added)
|
|
Min.Slot Space
Positive knife
Negative knife
|
150*150*150*150mm
250*90*250*90mm
|
170*170*170*170mm
260*90*260*90mm
|
170*170*170*170mm
260*90*260*90mm
|
| Printing Roller Dia |
300mm |
408mm |
480mm |
